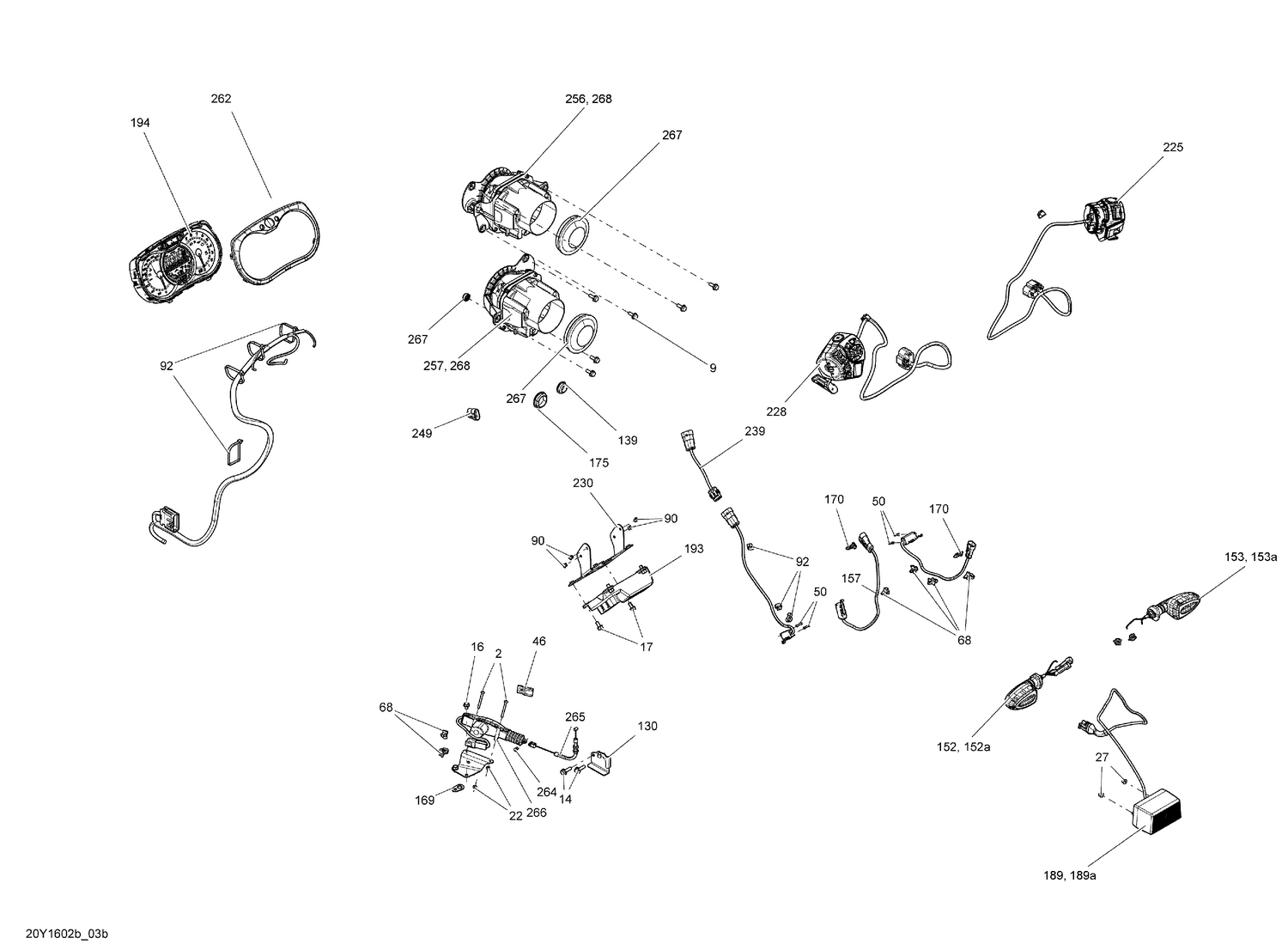

10- Electrical System - Accessories
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 9 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 16 | 210261050 | Hex. Forming Screw M6 X 10 |
| 17 | 210261250 | Hex. Flange Screw M6 X 12 |
| 27 | 233251494 | Elastic Flange Nut M5 |
| 46 | 270000141 | Clip |
| 50 | 293150150 | Pop Rivet |
| 68 | 293750009 | Tie-Rap 173 mm |
| 90 | 390402400 | Pop Rivet 3/16" |
| 92 | 414115200 | Tie-Rap 180 mm |
| 139 | 705003464 | Cap |
| 152 | 710001290 | LH Rear Turn Signal Ass'y |
| 152a | 219800039 | Bulb 12V/10W, Amber |
| 153 | 710001337 | RH Rear Turn Signal Ass'y |
| 157 | 710001379 | Brake Pressure Switch Ass'y |
| 170 | 710002033 | Connector Holder |
| 175 | 710002858 | Rubber Plug |
| 189 | 710003348 | License Plate Light |
| 189a | 415129261 | Bulb 12V 10W |
| 194 | 710003948 | MULTIFUNCTION GAUGE CLUSTER - Call your local BRP dealership |
| 239 | 710004750 | Harness |
| 249 | 710004901 | Connector Plug |
| 256 | 710004951 | RH BI-HALOGEN BEAM ASS'Y - Call your local BRP dealership |
| 257 | 710004952 | LH BI-HALOGEN BEAM ASS'Y - Call your local BRP dealership |
| 262 | 415129349 | Lens |
| 267 | 219400070 | Cap |
