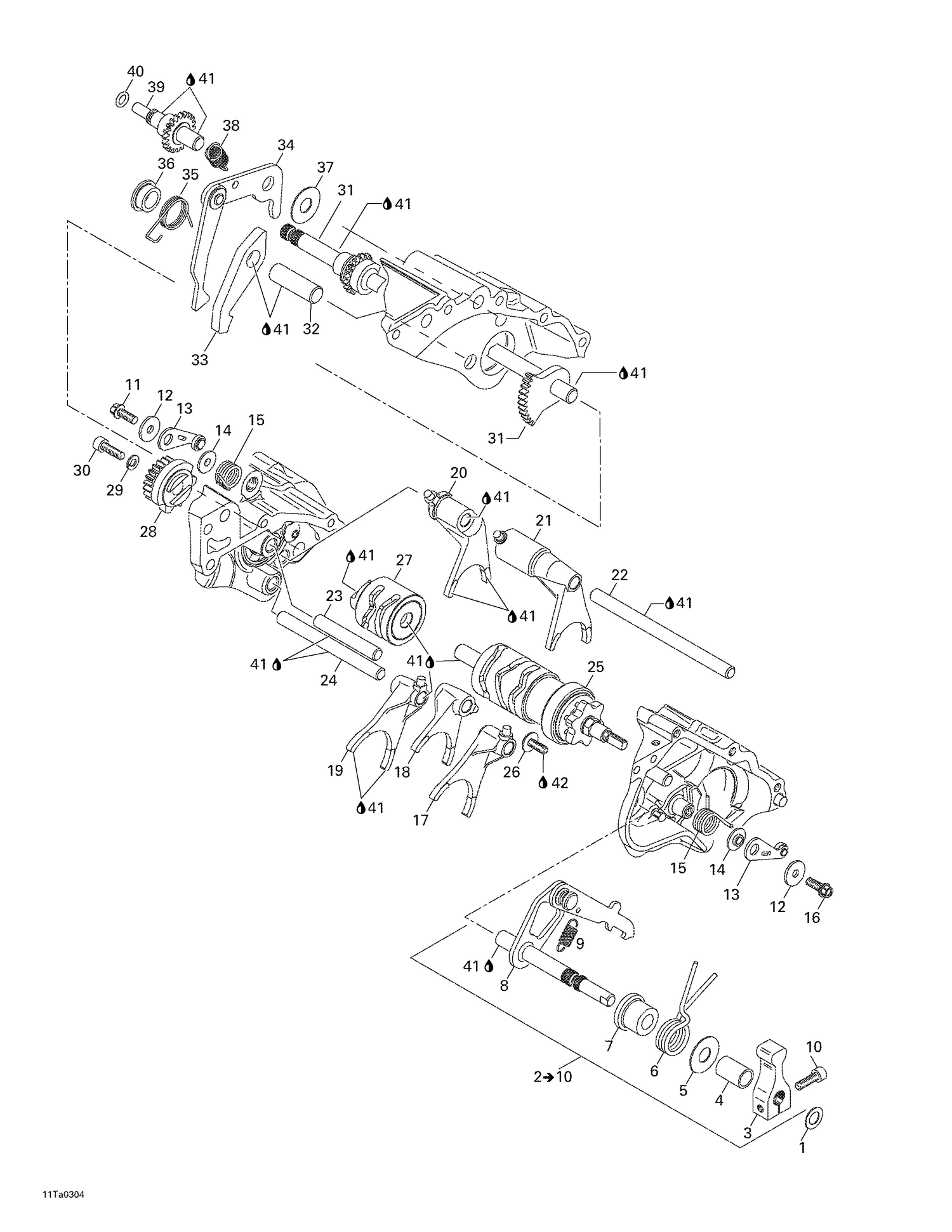

05- Gear Shift
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 711627100 | Thrust Washer |
| 3 | 711257090 | Gear Shift Lever |
| 4 | 711247020 | Distance Sleeve |
| 5 | 420227980 | THRUST WASHER - Call your local BRP dealership This part replaces 711227980. |
| 6 | 711239084 | Shaft Spring |
| 7 | 711247050 | Collar Sleeve |
| 8 | 711220536 | Shift Shaft with Pawl Ass'y |
| 9 | 711239540 | Tension Spring |
| 10 | 205062544 | Socket Head Screw M6 X 25 |
| 11 | 711241751 | Hex. Flange Screw M6 x 16 |
| 12 | 420227900 | Washer |
| 13 | 703500189 | INDEX LEVER KIT - Call your local BRP dealership |
| 14 | 420227710 | BUSHING - Call your local BRP dealership This part replaces 711227710. |
| 15 | 711239560 | Index Lever Spring |
| 16 | 711241751 | Hex. Flange Screw M6 x 16 |
| 17 | 711258400 | Shift Fork |
| 18 | 711258410 | Shift Fork |
| 19 | 711258390 | Shift Fork |
| 20 | 711258422 | Shift Fork |
| 21 | 711258432 | Shift Fork |
| 22 | 711257080 | Gear Shift Rod |
| 23 | 420229475 | Needle Pin This part replaces 711229470. |
| 24 | 711229480 | Cylindrical Pin M10 x 100 |
| 25 | 711257107 | Shift Drum Ass'y |
| 26 | 711241531 | Flat Head Screw M6 x 16 |
| 27 | 711257111 | Shift Drum |
| 28 | 711257130 | Index Gear |
| 29 | 711445331 | Lock Washer |
| 30 | 205062544 | Socket Head Screw M6 X 25 |
| 31 | 711220585 | Shift Shaft Ass'y |
| 32 | 711220600 | Shaft |
| 33 | 711258621 | Park Locking Lever |
| 34 | 711258475 | Actuating Lever |
| 35 | 711239550 | Helical Spring |
| 36 | 711247040 | Collar Sleeve |
| 37 | 420227980 | THRUST WASHER - Call your local BRP dealership This part replaces 711227980. |
| 38 | 711239591 | Tension Spring |
| 39 | 711220545 | Indicator Shaft |
| 40 | 420430800 | O-Ring This part replaces 711430800. |
| 41 | Not | Available As Spare Part - Engine Oil, Mineral, API, SJ SAE 10W40 |
