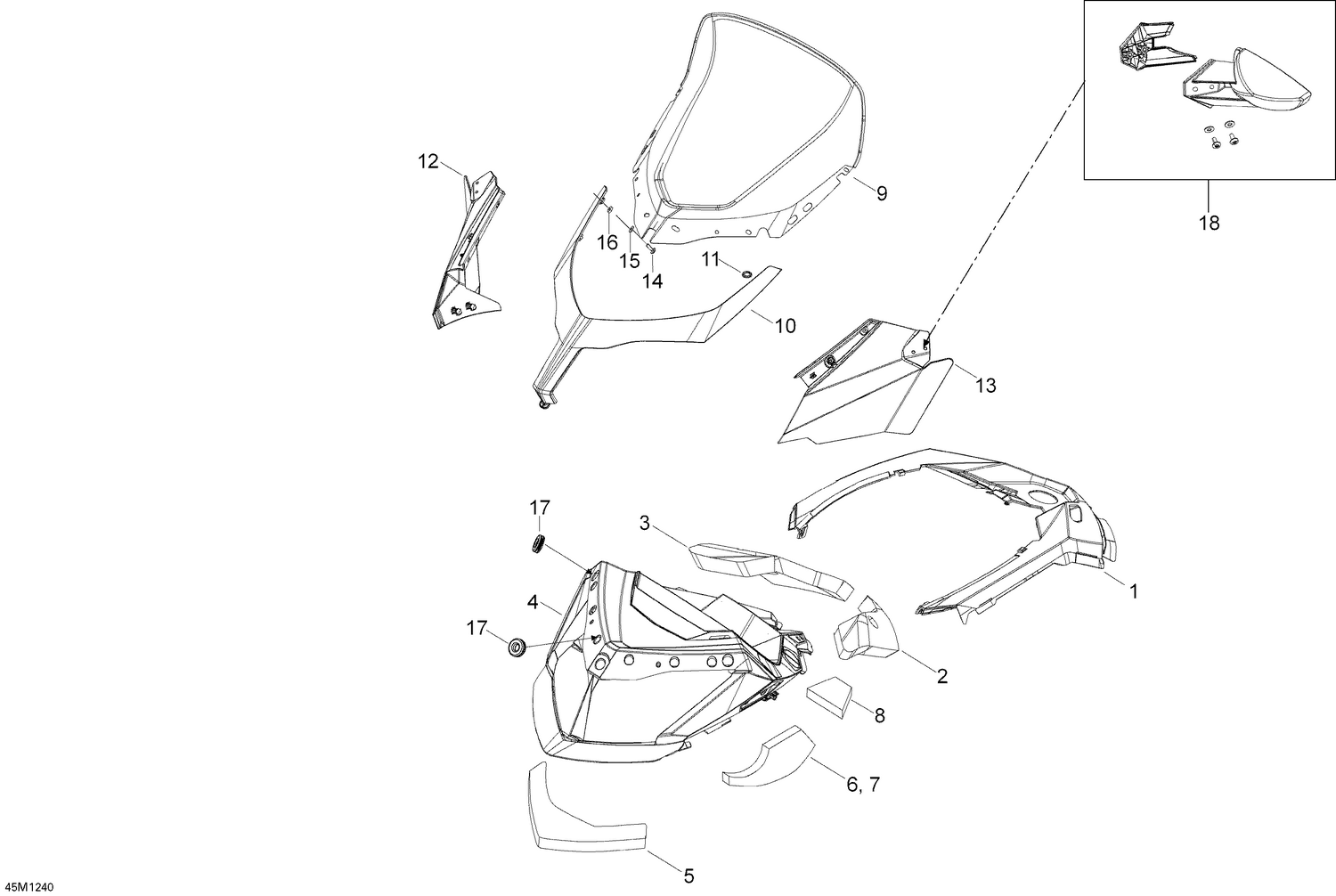

09- Windshield And Console
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517304820 | Black, Console |
| 2 | 517304317 | INSULATOR - Call your local BRP dealership |
| 3 | 517304318 | Insulator |
| 4 | 517304272 | Indicator Support |
| 5 | 517304314 | Insulator |
| 6 | 517304315 | Insulator |
| 7 | 517304316 | Insulator |
| 8 | 517304319 | Insulator |
| 9 | 860201000 | Windshield Ass'y This part replaces 517304287. |
| 10 | 860200230 | Windshield Support Kit |
| 11 | 732610072 | Push Nut |
| 12 | 517303745 | RH Console Air Deflector |
| 13 | 517303746 | LH CONSOLE AIR DEFLECTOR - Call your local BRP dealership |
| 14 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 15 | 250200025 | Washer M5 |
| 16 | 250200024 | Rubber Washer 5 mm |
| 17 | 517303756 | Grommet |
