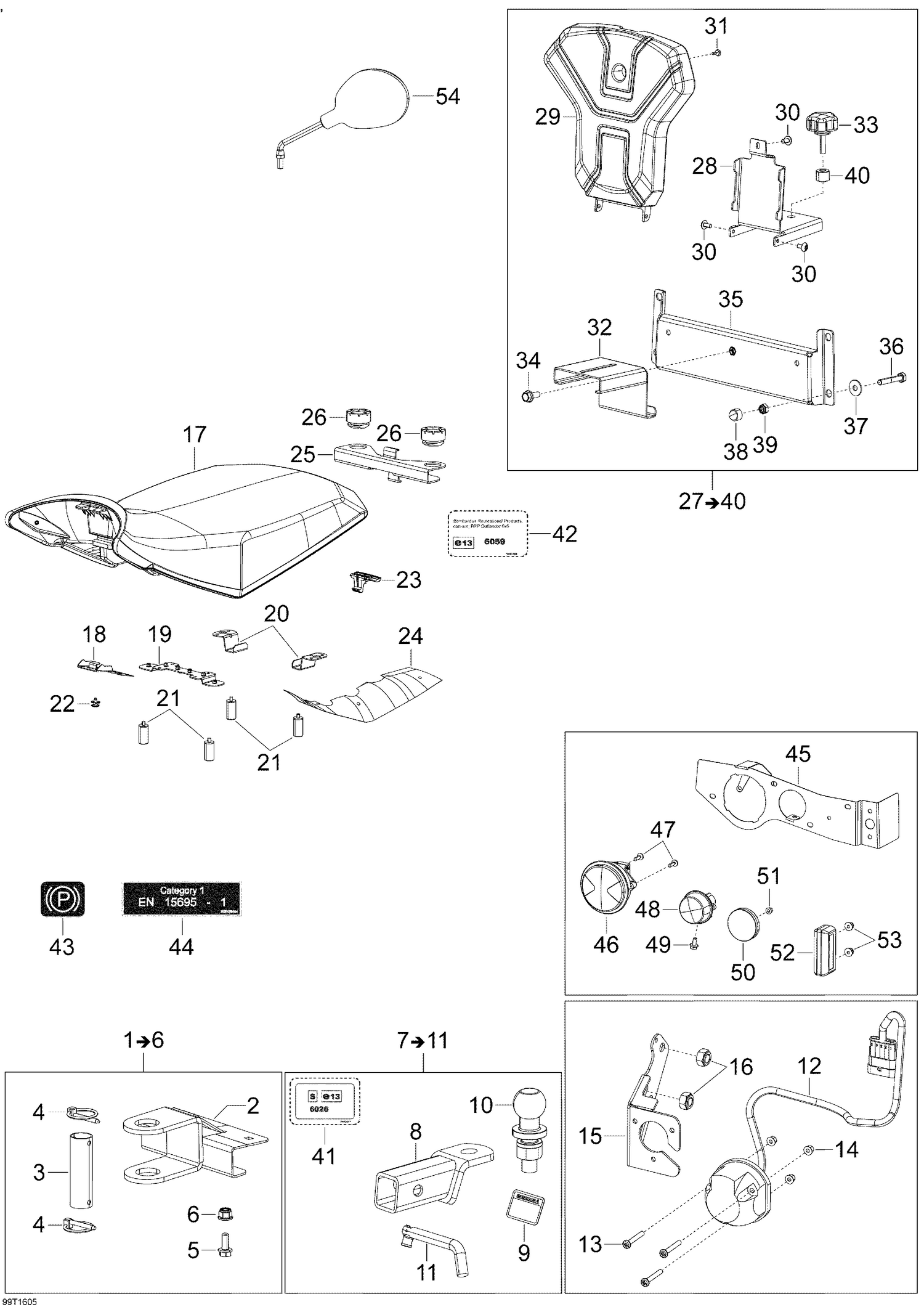

11- T3 Parts
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 705204452 | Front Coupling Device |
| 3 | 605456511 | Pin |
| 4 | 605456518 | Pin |
| 5 | 207782044 | Carriage Bolt, M8 X 20 |
| 6 | 233281414 | Hex. Flange Elastic Nut M8 |
| 8 | Not | Available As Spare Part - Ball Mount |
| 9 | Not | Available As Spare Part - Warning Decal (EN) |
| 10 | Not | Available As Spare Part - Ball 50mm |
| 11 | 705204490 | Hitch Pin |
| 12 | 515177667 | Trailer Harness |
| 13 | Not | Available As Spare Part - Screw M5 x 35 |
| 14 | 233251434 | Flange Elastic Nut M5 |
| 15 | 705204572 | Plug Fastening Plate |
| 16 | 232500416 | Elastic Stop Nut M10 |
| 17 | 708002208 | Seat Ass'y |
| 18 | 605456520 | Front Bottom Support |
| 19 | 510005986 | Support Central Cushion |
| 20 | 510005988 | Support Rear Cushion |
| 21 | 605456546 | RUBBER DAMPER - Call your local BRP dealership |
| 22 | 293150067 | Rivet |
| 23 | 708000909 | Latch |
| 24 | 705005761 | HEAT SHIELD - Call your local BRP dealership |
| 25 | 705204016 | RAISER, SEAT (REAR) - Call your local BRP dealership |
| 26 | 708000760 | Bumper Rubber |
| 28 | 705205085 | Angle Support |
| 29 | 708001794 | Backrest |
| 30 | 250000675 | Torx Truss Screw M6 x 12 |
| 31 | 605454799 | Rubber |
| 32 | 708001607 | Backrest Fixing Body Painted |
| 33 | 510003533 | Handle M8 X 35 |
| 34 | 207682046 | Hex. Flange Screw M8 X 20 |
| 35 | 708001611 | Back Rest Support |
| 36 | 207084544 | Hex. Screw M8 X 45 |
| 37 | 234082670 | Stainless Steel Flat Washer |
| 38 | 28056 | Cover |
| 39 | 232581414 | Hex. Elastic Stop Nut M8 |
| 40 | 708002168 | Sleeve |
| 41 | 704904417 | Instruction Decal |
| 42 | 704904599 | Instruction Decal |
| 43 | 605356244 | P-Decal, T3 |
| 44 | 605456594 | Cabin Decal, T3 |
| 45 | 605356527 | LH Tail Light Plate |
| 45 | 605356528 | RH Tail Light Plate |
| 46 | 710001645 | Tail Light Ass'y |
| 47 | 250000720 | Torx Screw K50 X 16 |
| 48 | 710002964 | Flasher |
| 49 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 50 | 705011221 | Red Reflector |
| 51 | 233251434 | Flange Elastic Nut M5 |
| 52 | 710002055 | License Light |
| 53 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 54 | 709400406 | LH Mirror |
