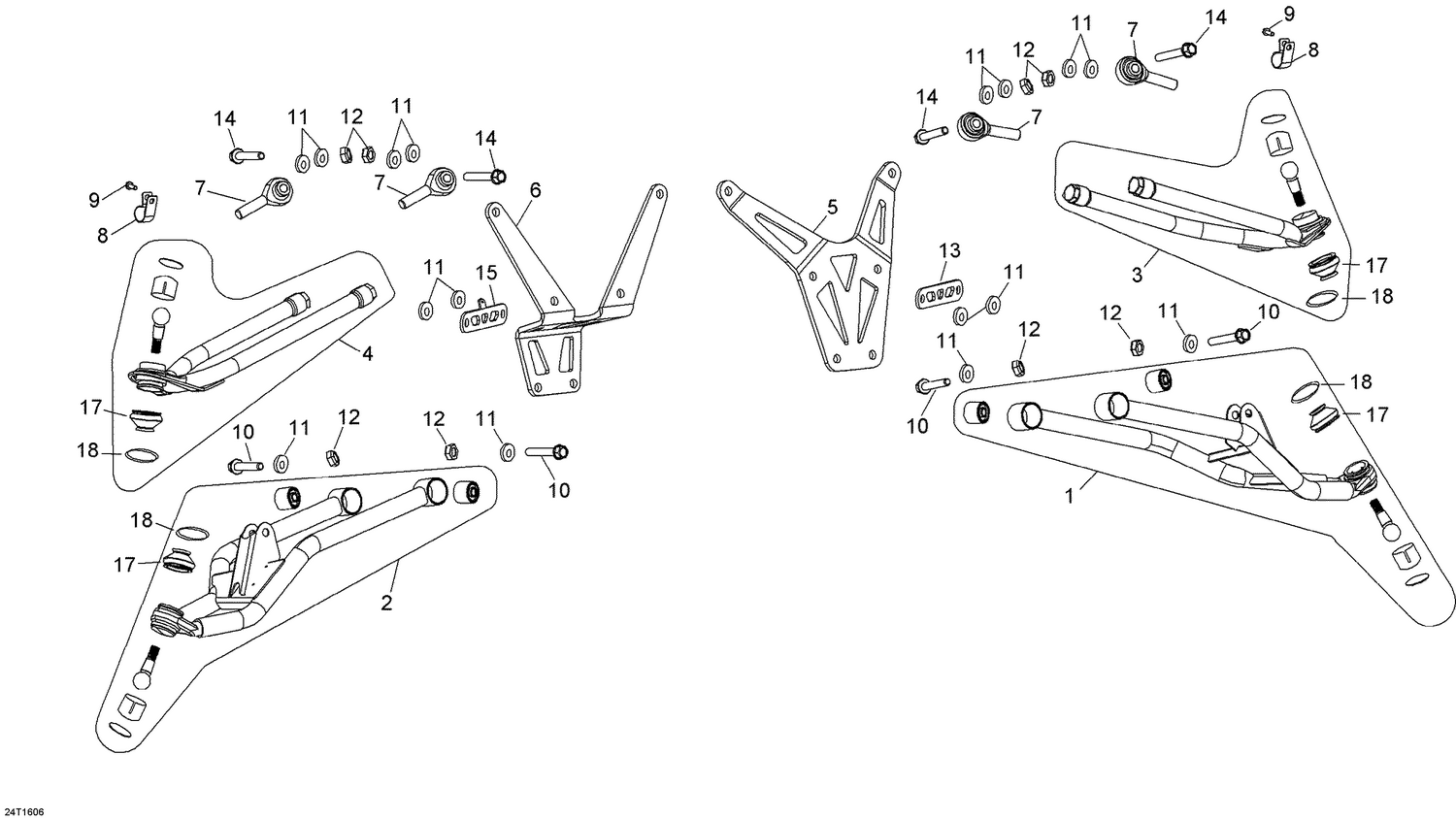

07- Front Suspension Arm
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 5 | V50120DGF07HLL | Front Plate |
| 6 | V50121DGF06HLL | Rear Plate |
| 7 | V51472DGF02HLL | Ball Joint |
| 8 | V50126DGF00H | Clip |
| 9 | 207661244 | Hex. Flange Screw M6 X 12 |
| 10 | 207605544 | Hex. Flange Screw M10 X 55 |
| 11 | V941011121020LL | Flat Washer |
| 12 | 232501416 | Elastic Flange Nut M10 |
| 13 | V50130DGF05H | Plate |
| 14 | V958211006090L | Hex. Flange Bolt |
| 15 | V50132DGF03H | Plate |
| 17 | V52247DGF01HLL | Protector Rubber |
