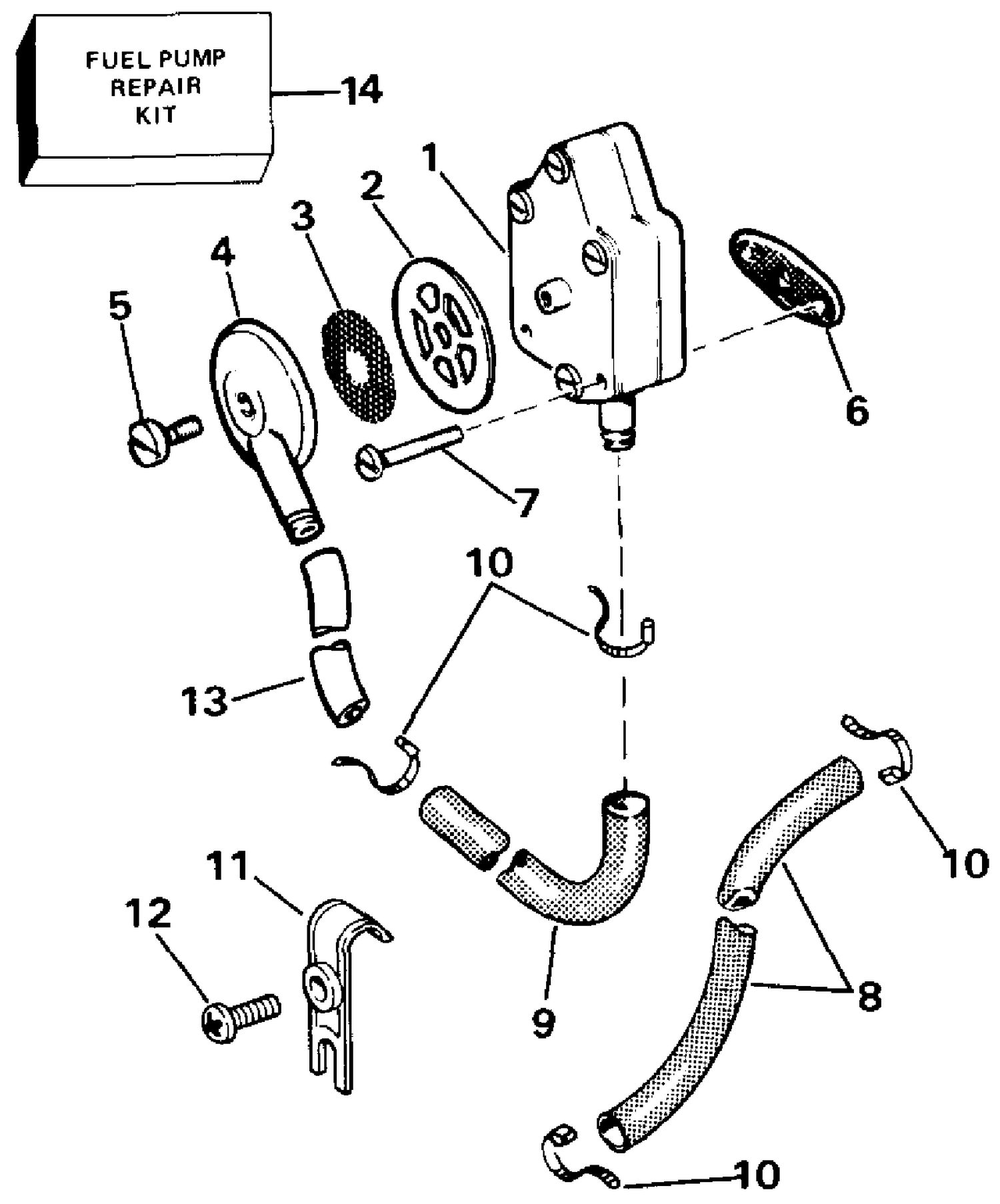

FUEL PUMP AND FILTER
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0438556 | FUEL PUMP ASSY. This part replaces 0398338. |
| 2 | 0338879 | GASKET, Cap to pump, upper This part replaces 0332694. |
| 4 | 0330092 | CAP Filter |
| 6 | 0303615 | GASKET |
| 8 | HOSE, | Fuel connector to pump 229mm (9") |
| 9 | 0332911 | HOSE, Oil pulse, upper |
| 10 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 11 | 0333739 | RETAINER, Fuel hose to cover This part replaces 0318313. |
| 12 | 0310539 | SCREW, Clamp choke solenoid |
| 13 | HOSE, | Filter to pump 146mm (5 - 3/4") |
