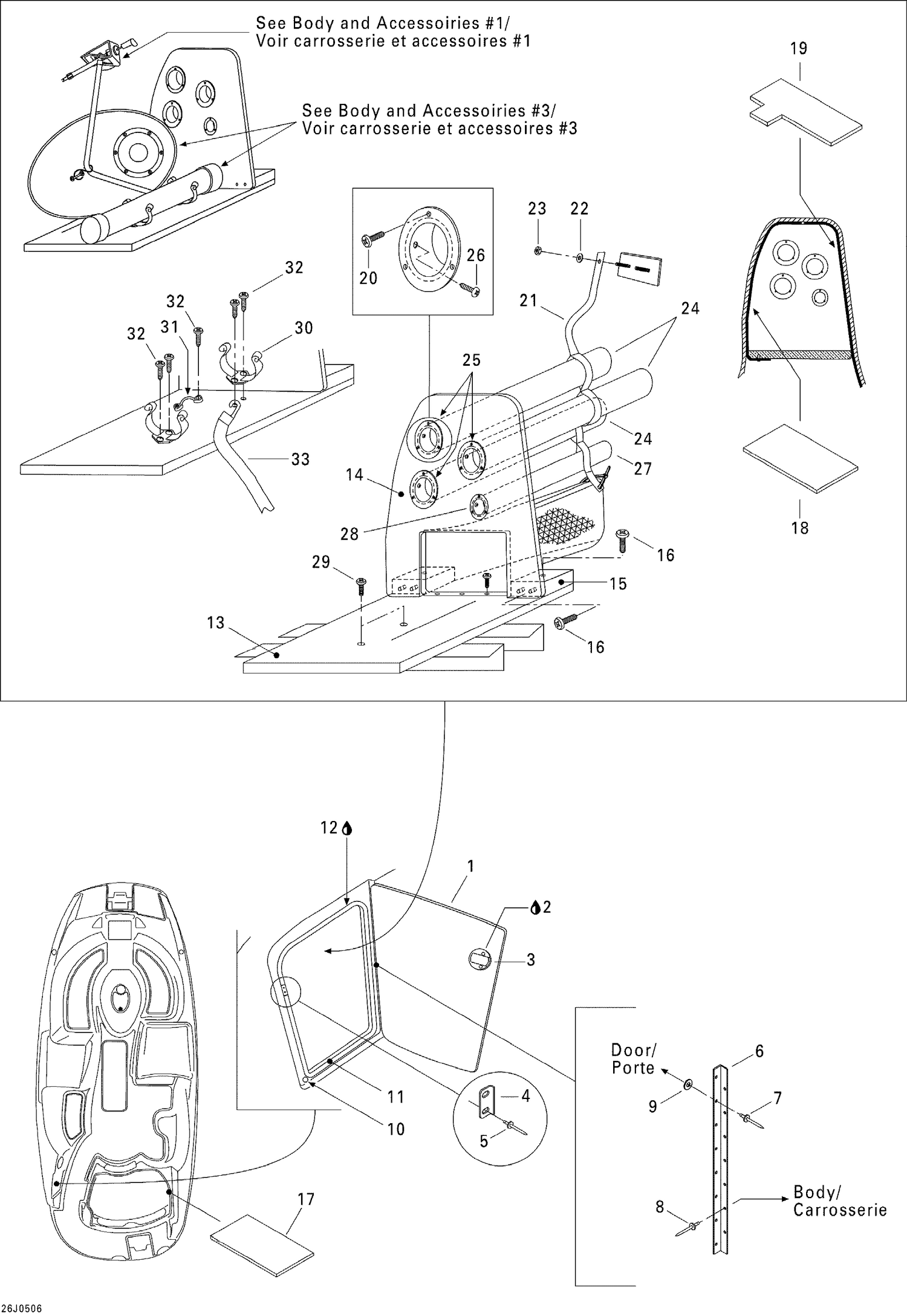

09- Storage Compartment
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204072154 | Storage Door |
| 2 | 219704457 | ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 3 | 204070063 | VERROU, WHITE - Call your local BRP dealership |
| 4 | 204071926 | KEEPER - Call your local BRP dealership |
| 5 | 293150008 | Pop Rivet 3/16" |
| 6 | 204071809 | Hinge |
| 7 | 293150008 | Pop Rivet 3/16" |
| 8 | 293150014 | Pop Rivet 3/16" |
| 9 | 234051600 | Flat Washer M5, Stainless |
| 10 | 204070940 | BUMPER - Call your local BRP dealership |
| 11 | 204070752 | Rubber Trim |
| 13 | 204071585 | Floor Carpet |
| 14 | 204071587 | Bulkhead Carpet |
| 15 | 204070751 | Mounting Block |
| 16 | 209643860 | TAPPING PHILLIPS SCREW 4.2 X 38 - Call your local BRP dealership |
| 17 | 204071093 | Deck Carpet |
| 18 | 204071588 | Deck Carpet, Outer |
| 19 | 204071589 | Deck Carpet, Inner |
| 20 | 204100058 | Phillips Tapping Screw |
| 21 | Not | Available As Spare Part - Rod Strap Tube |
| 22 | 204100139 | WASHER-FENDER/S.S. - Call your local BRP dealership |
| 23 | 232561600 | Hex. Elastic Stop Nut M6 |
| 24 | 204071033 | Storage Tube 3” X 58” |
| 25 | 204071199 | Tube Collar |
| 26 | 209630960 | PHILLIPS SCREW M3.9 X 9.5 - Call your local BRP dealership |
| 27 | 204071201 | STORAGE TUBE 2? X 58? - Call your local BRP dealership |
| 28 | 204071202 | Tube Collar |
| 29 | 209643860 | TAPPING PHILLIPS SCREW 4.2 X 38 - Call your local BRP dealership |
| 30 | 204070342 | POLE CLIP - Call your local BRP dealership |
| 31 | 204070234 | Strap Tie |
| 32 | 209642560 | PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
