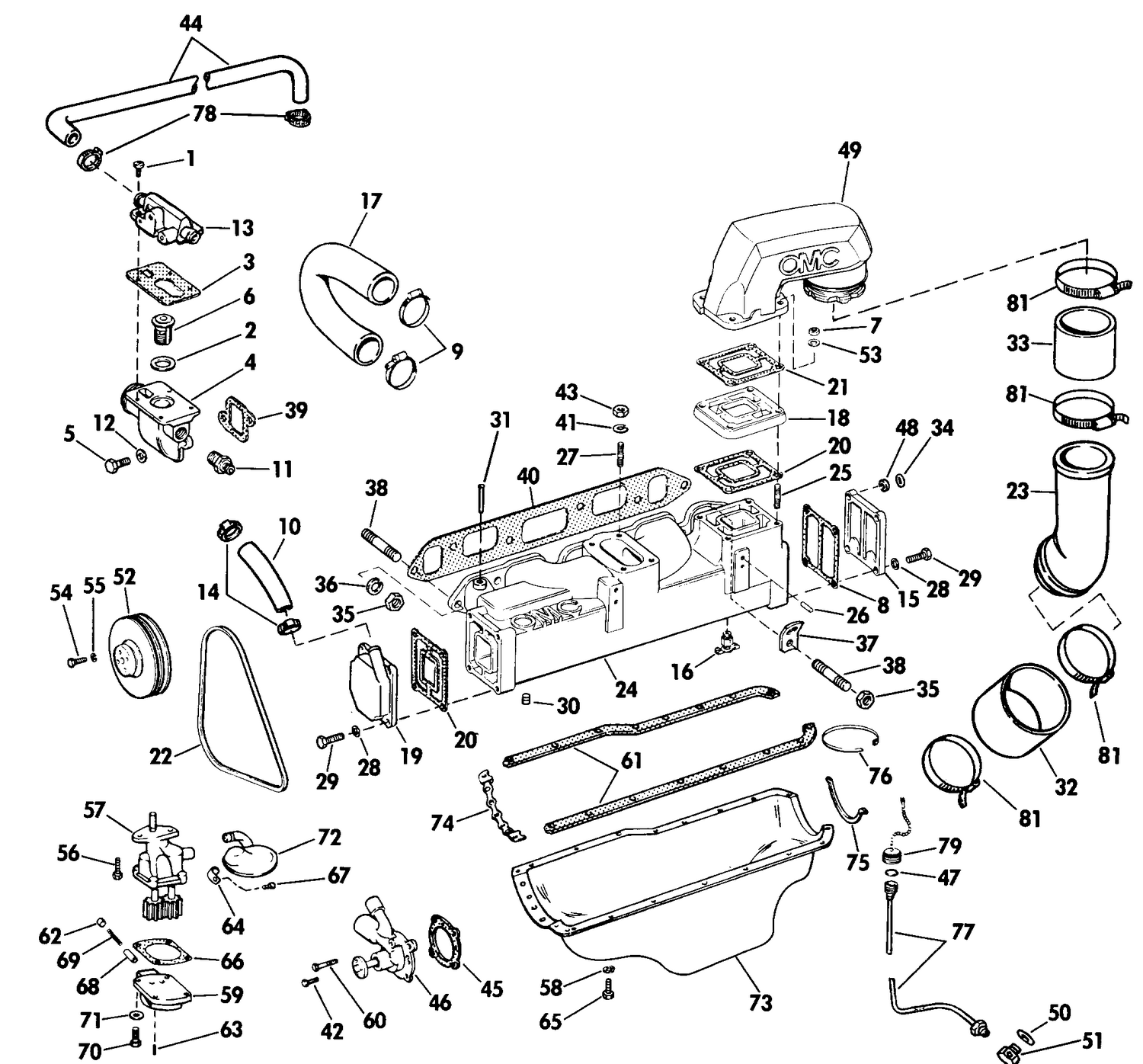

| Ref | Part Number | Description |
|---|
| 2 |
0313416 |
GASKET, Thermostat |
| 3 |
0314809 |
GASKET |
| 4 |
3854254 |
HOUSING & PLUG ASSY This part replaces 0910303. |
| 5 |
0306414 |
SCREW |
| 6 |
3853799 |
THERMOSTAT ASSY This part replaces 0982554. |
| 8 |
0907761 |
GASKET, Cap to manifold |
| 10 |
0910305 |
HOSE, Inlet |
| 11 |
0171960 |
SENDER, Water temperature |
| 13 |
0910360 |
HOUSING ASSEMBLY, Upper |
| 14 |
0912627 |
CLAMP This part replaces 0313851. |
| 15 |
0907885 |
CAP, Exh manifold rear |
| 16 |
0379957 |
PETCHOCK ASSY, Water drain |
| 17 |
0311075 |
HOSE |
| 18 |
0908014 |
ADAPTER |
| 19 |
0910384 |
CAP, Manifold |
| 20 |
0311121 |
GASKET, Cap to manifold |
| 21 |
3850495 |
GASKET, Elbow to manifold This part replaces 0908013. |
| 22 |
0910343 |
BELT |
| 23 |
0909369 |
ELBOW, High rise to adapter |
| 24 |
0982657 |
MANIFOLD & STUD ASSEMBLY |
| 25 |
0910389 |
STUD |
| 26 |
0907799 |
PIN |
| 27 |
0310870 |
STUD |
| 29 |
0552940 |
SCREW, Stern bracket |
| 30 |
0552909 |
PIPE PLUG, Elbow |
| 31 |
0982658 |
TUBE KIT |
| 32 |
0909371 |
HOSE, Elbow to adapter |
| 33 |
0909232 |
HOSE, Exhaust |
| 34 |
0306453 |
LOCKWASHER, Fuel pump |
| 36 |
0120177 |
L'WASHER, Alternator to brkt |
| 37 |
0311111 |
LIFT BRACKET |
| 38 |
3852093 |
STUD, Lift bracket This part replaces 0310968. |
| 39 |
3789161 |
GASKET, Housing |
| 40 |
0311068 |
GASKET, Manifold to head |
| 41 |
0311388 |
ORING |
| 42 |
0443899 |
BOLT, Camshaft sprocket |
| 44 |
0911525 |
HOSE, Thermostat to int. hsg |
| 45 |
3788478 |
GASKET, Water pump |
| 46 |
3858340 |
Pump Ay This part replaces 0984360. |
| 47 |
3852426 |
SEAL, Cap oil drain tube This part replaces 0907845. |
| 48 |
0306799 |
L'WASHER,Bracket to hsg. |
| 49 |
3850799 |
ELBOW, Exhaust This part replaces 0910380. |
| 51 |
0907848 |
ELBOW, Drain pan |
| 52 |
0384104 |
PULLEY ASSEMBLY This part replaces 0383932. |
| 54 |
0306861 |
SCREW |
| 56 |
9424877 |
BOLT, Hex |
| 57 |
3832449 |
PUMP ASSEMBLY |
| 58 |
0120638 |
LOCKWASHER |
| 59 |
3792507 |
COVER, Oil pump |
| 60 |
0180083 |
BOLT, Hex, 5 )16-18 x 1-1/2'' (rh) |
| 61 |
3930961 |
GASKET UNIT, Side |
| 62 |
3830824 |
PLUG, Regulator hole |
| 63 |
0103677 |
PIN, Pressuer regulator |
| 64 |
3905965 |
SUPPORT ASSEMBLY |
| 65 |
0180075 |
SCREW |
| 66 |
3789970 |
GASKET, Cover |
| 67 |
9437702 |
SCREW, Suction pipe brkt |
| 68 |
3829433 |
VALVE, Pressure regulator |
| 69 |
3814903 |
SPRING, Regulator valve |
| 70 |
0133043 |
BOLT, Cover to pump |
| 71 |
9421423 |
LOCKWASHER, Switch attach |
| 72 |
2778187 |
SUCTION TUBE & SCREEN ASSY |
| 73 |
0313647 |
OIL PAN |
| 74 |
3923440 |
SEAL, Front |
| 75 |
3921973 |
SEAL, Real |
| 76 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 77 |
0979841 |
OIL LINE ASSEMBLY |
| 78 |
0979803 |
CLAMP |
| 79 |
3853783 |
CAP & BEAD CHAIN ASSY This part replaces 0980068. |
