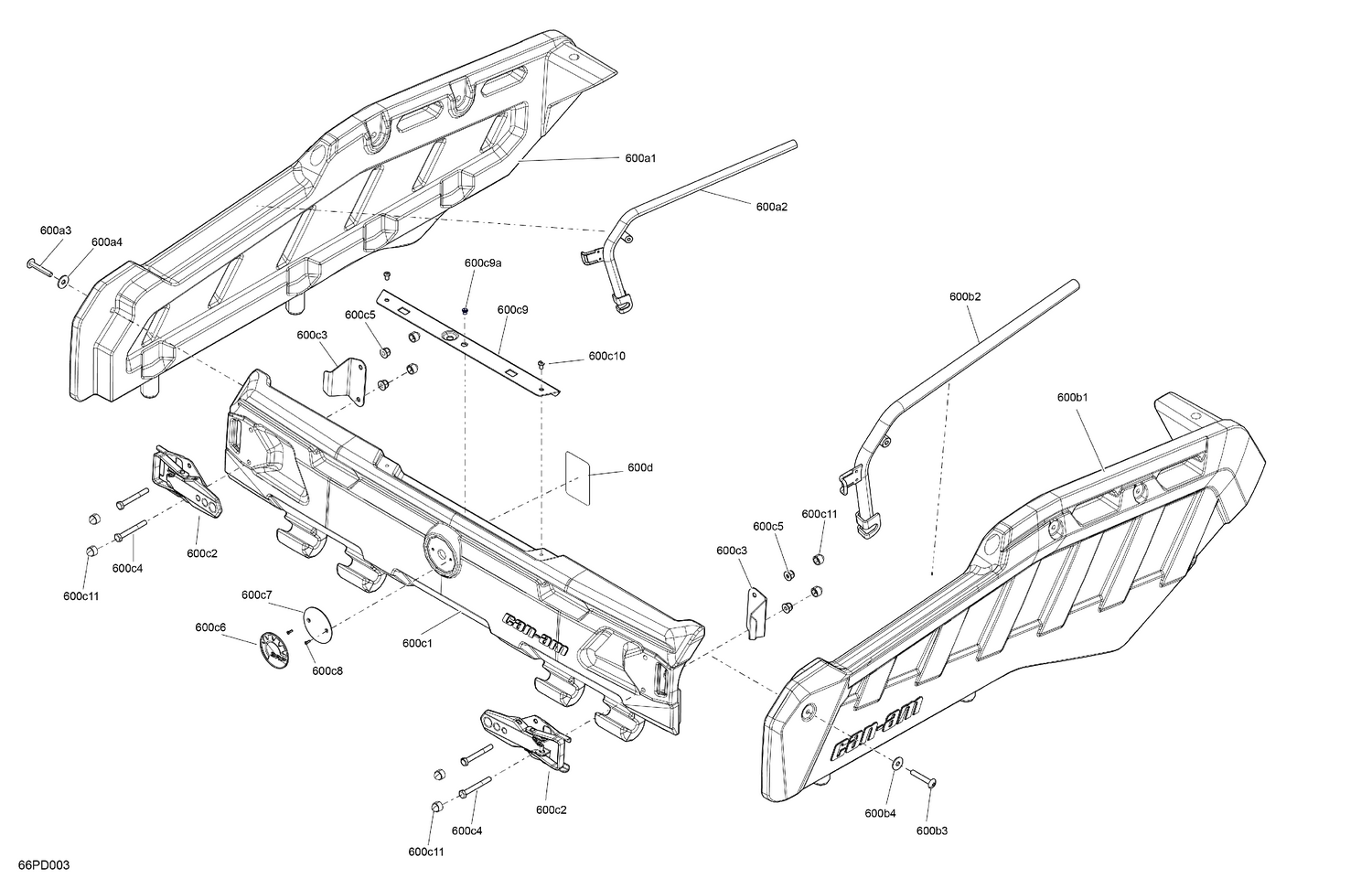

07- Body - Cargo Wall
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 600a1 | 708303727 | Black, LH Side Panel |
| 600a2 | 708302800 | LH Side Railing |
| 600a3 | 250000761 | Torx Truss Screw M8 X 50 |
| 600a4 | 234082670 | Stainless Steel Flat Washer |
| 600b1 | 708303728 | Black, RH Side Panel |
| 600b2 | 708302799 | RH Side Railing |
| 600b3 | 250000761 | Torx Truss Screw M8 X 50 |
| 600b4 | 234082670 | Stainless Steel Flat Washer |
| 600c1 | 708303729 | Black, Tailgate |
| 600c10 | 250000767 | Torx Truss Screw M6 X 12 |
| 600c11 | 28056 | Cover |
| 600c2 | 511001014 | Latch Ass'y |
| 600c3 | 708301005 | Latch Fixing Plate |
| 600c4 | 207086544 | Hex. Screw M8 x 65 |
| 600c5 | 233281414 | Hex. Flange Elastic Nut M8 |
| 600c6 | 704909041 | BRP Logo Emblem 68 MM UV |
| 600c7 | 708301177 | Logo Base |
| 600c8 | 250000698 | Countersunk Head Screw K30 X 10 |
| 600c9a | 605636002 | Clinch Nut Hexsert M8 |
| 600d | 704904233 | Warning Label |
