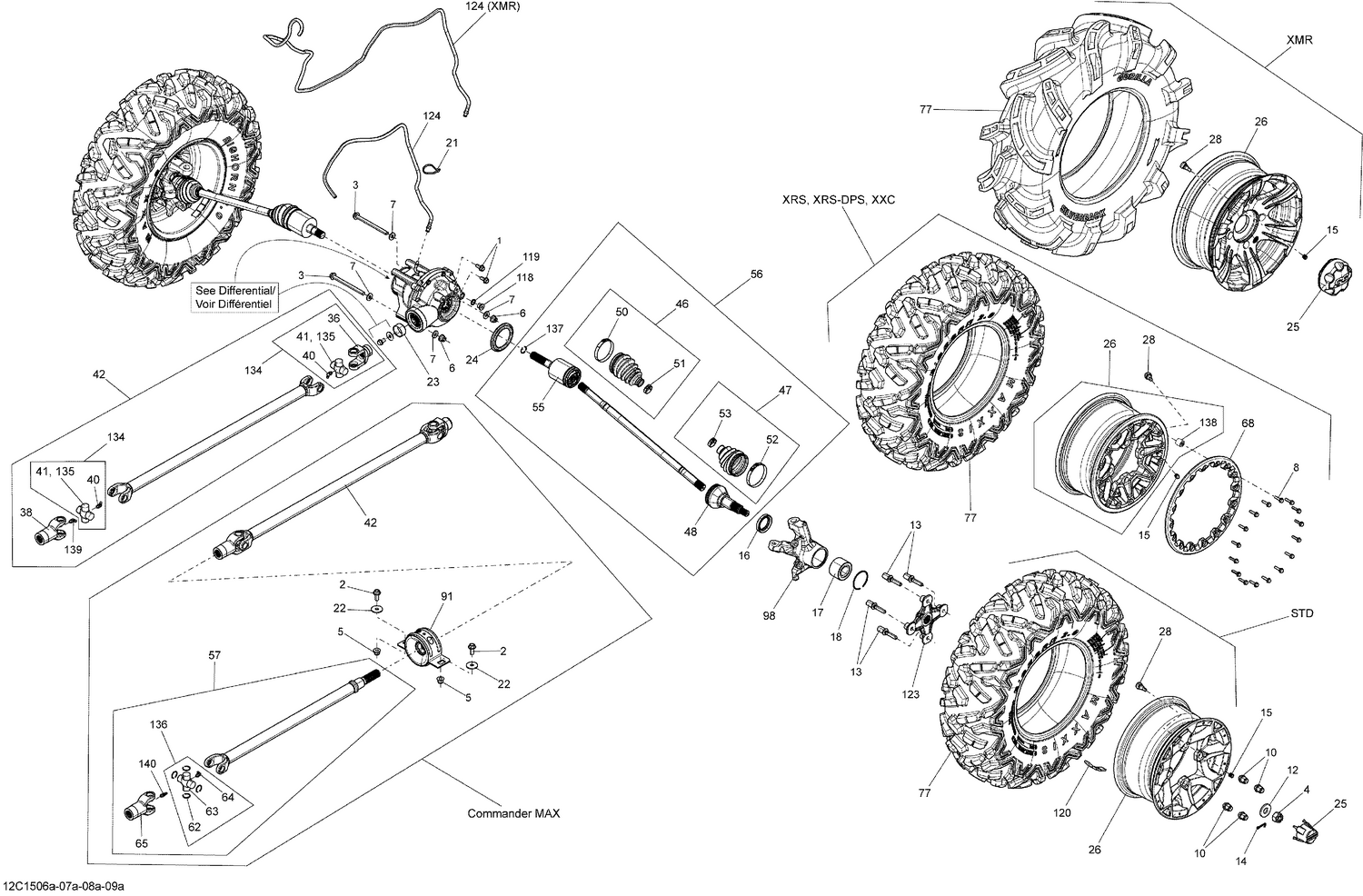

| Ref | Part Number | Description |
|---|
| 1 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 2 |
XXX |
Not Available As Spare Parts |
| 3 |
230603046 |
Hex. Flange Screw, M10 X 130 |
| 4 |
232291413 |
Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 5 |
XXX |
Not Available As Spare Parts |
| 6 |
233201436 |
Hex. Flange Elastic Nut M10 |
| 7 |
234201474 |
Conical Spring Washer 10 mm |
| 8 |
XXX |
Not Available As Spare Parts |
| 10 |
250100184 |
Black, Wheel Nut M10 X 1.25 This part replaces 250100100. |
| 12 |
250200171 |
Conical Spring Washer M18 This part replaces 250200049. |
| 13 |
250300060 |
Wheel Stud This part replaces 250300051. |
| 14 |
250400036 |
Cotter Pin |
| 15 |
293000110 |
Valve Cap |
| 16 |
293250246 |
O-Ring |
| 17 |
293350150 |
Ball Bearing This part replaces 293350040. |
| 18 |
293370019 |
Circlip |
| 21 |
414115200 |
Tie-Rap 180 mm |
| 22 |
XXX |
Not Available As Spare Parts |
| 23 |
705400036 |
Wear Ring |
| 24 |
XXX |
Not Available As Spare Parts |
| 25 |
705401318 |
Wheel Cap |
| 25 |
XXX |
Not Available As Spare Parts |
| 26 |
705401552 |
Matte Black Rim |
| 28 |
705400193 |
Rim Valve With Cap |
| 36 |
715900116 |
Fixed Yoke Joint |
| 40 |
703500813 |
GREASE FITTING - Call your local BRP dealership |
| 41 |
715900183 |
U-Joint |
| 42 |
705402068 |
Drive Shaft Assembly This part replaces 705401196. |
| 46 |
705401355 |
Boot Kit, Différential Side |
| 47 |
705401354 |
Boot Kit, Wheel Side |
| 48 |
705401407 |
CV Joint |
| 50 |
715900262 |
Oetiker Clamp, Large |
| 51 |
715900261 |
Oetiker Clamp, Small |
| 52 |
715900260 |
Oetiker Clamp, Large |
| 53 |
715900261 |
Oetiker Clamp, Small |
| 55 |
715900395 |
RH Plunging CV Joint This part replaces 705401357. |
| 56 |
705401877 |
LH CV Joint This part replaces 705401663. |
| 56 |
705401878 |
RH CV Joint This part replaces 705401664. |
| 57 |
XXX |
Not Available As Spare Parts |
| 62 |
XXX |
Not Available As Spare Parts |
| 63 |
XXX |
Not Available As Spare Parts |
| 64 |
XXX |
Not Available As Spare Parts |
| 65 |
XXX |
Not Available As Spare Parts |
| 68 |
XXX |
Not Available As Spare Parts |
| 77 |
705401501 |
TIRE_30X9R14 - Call your local BRP dealership |
| 91 |
XXX |
Not Available As Spare Parts |
| 98 |
705401548 |
LH Front Knuckle |
| 98 |
705401549 |
RH Front Knuckle |
| 118 |
705500504 |
Fill Level Plug |
| 119 |
705500506 |
Copper Washer |
| 120 |
XXX |
Not Available As Spare Parts |
| 123 |
705501900 |
Wheel Hub |
| 124 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 134 |
715900325 |
Ens. Croix*U-Joint Cross Kit This part replaces 703500814. |
| 135 |
715900117 |
SNAP RING - Call your local BRP dealership |
| 136 |
XXX |
Not Available As Spare Parts |
| 137 |
705401349 |
Circlip Joint |
| 138 |
XXX |
Not Available As Spare Parts |
| 139 |
703500815 |
Grease Fitting |
