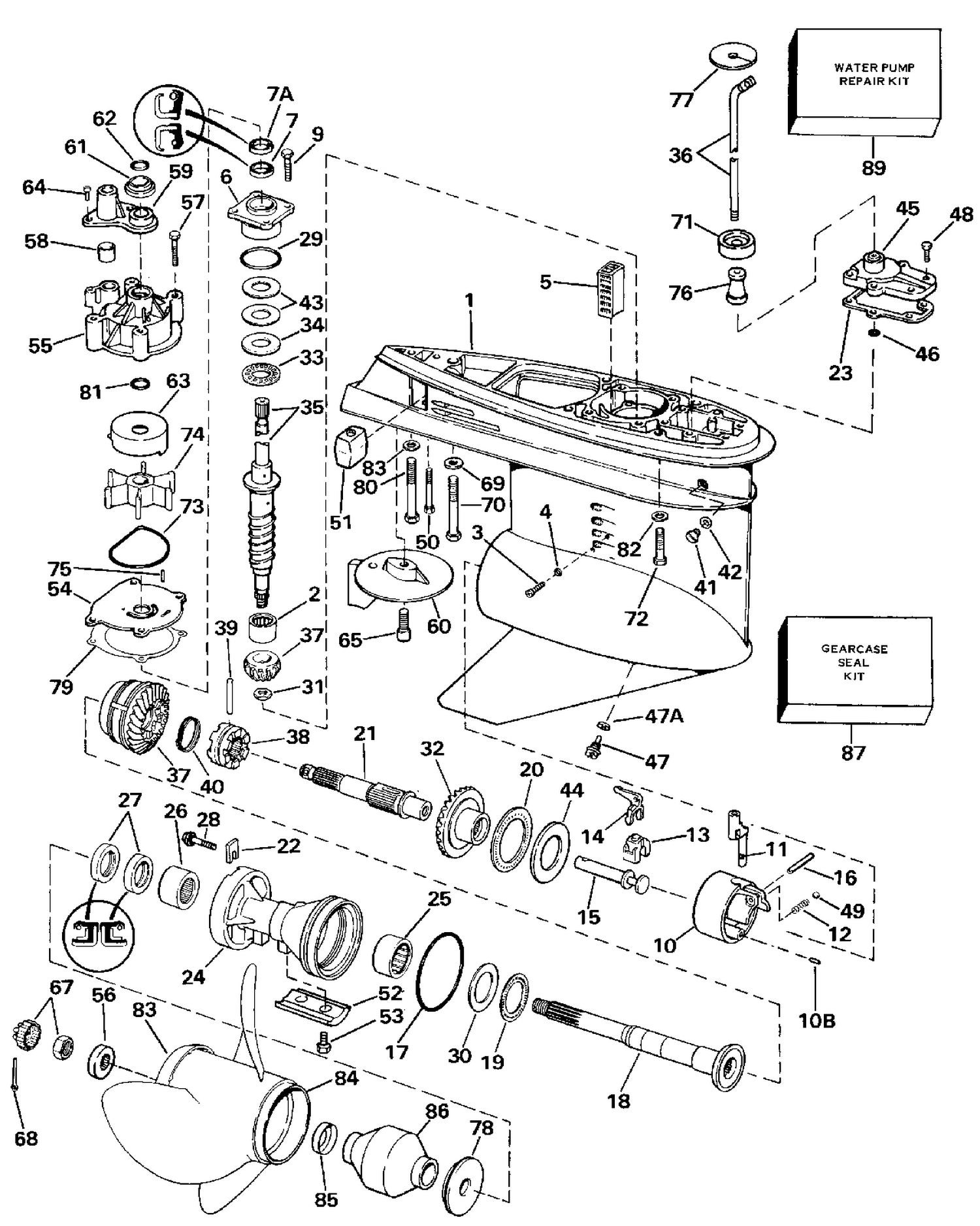

| Ref | Part Number | Description |
|---|
| 17 |
0305123 |
O RING This part replaces 0321119. |
| 18 |
0431943 |
PROPELLER SHAFT ASSY |
| 24 |
5000073 |
Hsg Ay This part replaces 0431694. |
| 35 |
5000776 |
Kit Ay This part replaces 0394616. |
| 36 |
0324408 |
SHAFT ROD. |
| 37 |
0431801 |
FWD GEAR, & PINION ASSY. |
| 54 |
0435027 |
CUP & PLATE This part replaces 0330380. |
| 54 |
0435526 |
CHROME CUP & PLATE KIT This part replaces 0330383. |
| 55 |
0435485 |
IMPELLER HOUSING ASSY. This part replaces 0395040. |
| 57 |
0335221 |
SCREW, Throttle body to reed plate This part replaces 0328715. |
| 60 |
0338743 |
TRIM TAB This part replaces 0333961. |
| 63 |
0435027 |
CUP & PLATE This part replaces 0330379. |
| 63 |
0435526 |
CHROME CUP & PLATE KIT This part replaces 0330384. |
| 65 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 70 |
0331998 |
SCREW, Gearcase to housing |
| 72 |
0331999 |
SCREW, Gearcase housing |
| 73 |
0331353 |
Seal, Impeller Housing Plate. |
| 77 |
0322302 |
SEAL, Adapter to frame |
| 78 |
0333592 |
THRUST BUSHING |
| 80 |
0330263 |
SCREW, Mounting, 3/8 in. X 3.50 in. |
| 81 |
0332000 |
SEAL RING |
| 83 |
0326785 |
WASHER |
| 84 |
0390821 |
PROPELLER, 14 1/2 x 19 SST II |
| 84 |
0390822 |
PROPELLER 14-1/4 X 21 |
| 84 |
0390823 |
PROPELLER 14-1/4 X 23 |
| 84 |
0394214 |
LH SRX 14 1/2 x 27 |
| 84 |
0394215 |
PROPELLER, 14 1/2 X 29 OMC RAKER |
| 84 |
0398502 |
PROPELLER, 14 1/2 X 20 RACKER |
| 84 |
0398503 |
LH Raker 14 1/2 x 22 |
| 84 |
0398504 |
LH Raker 14 1/2 x 24 |
| 84 |
0398505 |
LH Raker 14 1/2 x 26 |
| 84 |
0398506 |
LH Raker 14 1/2 x 28 |
| 84 |
0431930 |
PROPELLER, 15 x 17 SSS II |
| 87 |
5006373 |
GEARCASE SEAL KIT This part replaces 0396353. |
| 89 |
5001594 |
WATER PUMP REPAIR KIT This part replaces 0395060. |
| 0431906 |
0431906 |
GEARCASE., Complete |
