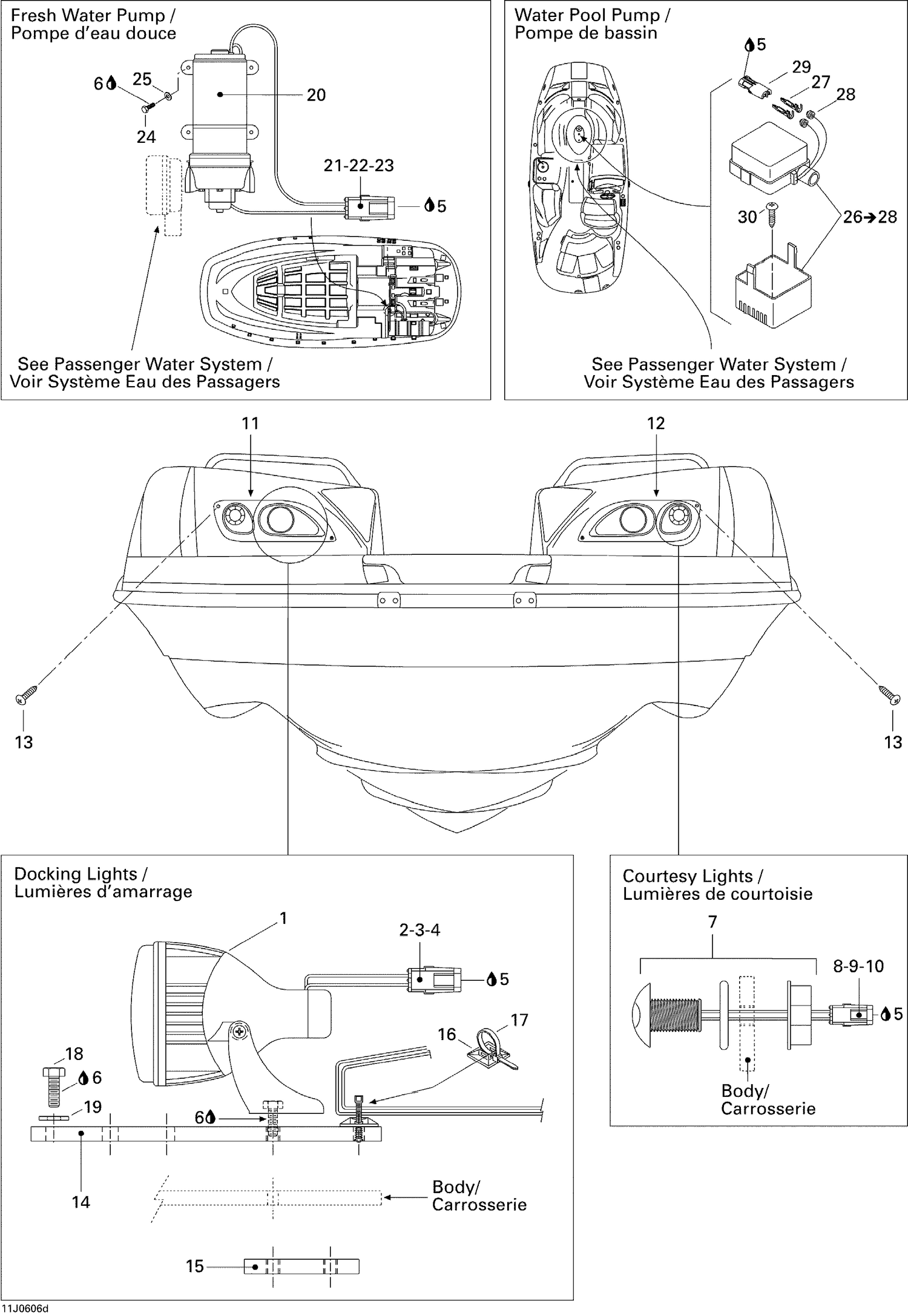

| Ref | Part Number | Description |
|---|
| 1 |
204470512 |
DOCKING LIGHT - Call your local BRP dealership |
| 2 |
278000217 |
Female Housing, 2 Circuits |
| 3 |
278000222 |
Male Terminal |
| 4 |
278000218 |
Wire Seal |
| 5 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 6 |
293800060 |
Loctite 243, 10 ml |
| 7 |
204470514 |
Courtesy Light |
| 8 |
278000217 |
Female Housing, 2 Circuits |
| 9 |
278000222 |
Male Terminal |
| 10 |
278000218 |
Wire Seal |
| 11 |
204470619 |
Light Fascia, Starboard |
| 12 |
204470620 |
Light Fascia, Port Side |
| 13 |
204100058 |
Phillips Tapping Screw |
| 14 |
204470536 |
UPPER PLATE - Call your local BRP dealership |
| 15 |
204470537 |
LOWER PLATE - Call your local BRP dealership |
| 16 |
293730040 |
Mount Dart This part replaces 293730018. |
| 17 |
293750002 |
Tie Wrap 142 mm |
| 18 |
207163060 |
Hex. Screw M6 X 30 |
| 19 |
234062600 |
Flat Washer M6, Stainless |
| 20 |
204470524 |
FRESH WATER PUMP R4305-144K - Call your local BRP dealership |
| 21 |
278000217 |
Female Housing, 2 Circuits |
| 22 |
278000222 |
Male Terminal |
| 23 |
278000218 |
Wire Seal |
| 24 |
207152060 |
Hex. Screw M5 X 20 |
| 25 |
234051600 |
Flat Washer M5, Stainless |
| 27 |
278000222 |
Male Terminal |
| 28 |
278000218 |
Wire Seal |
| 29 |
278000217 |
Female Housing, 2 Circuits |
