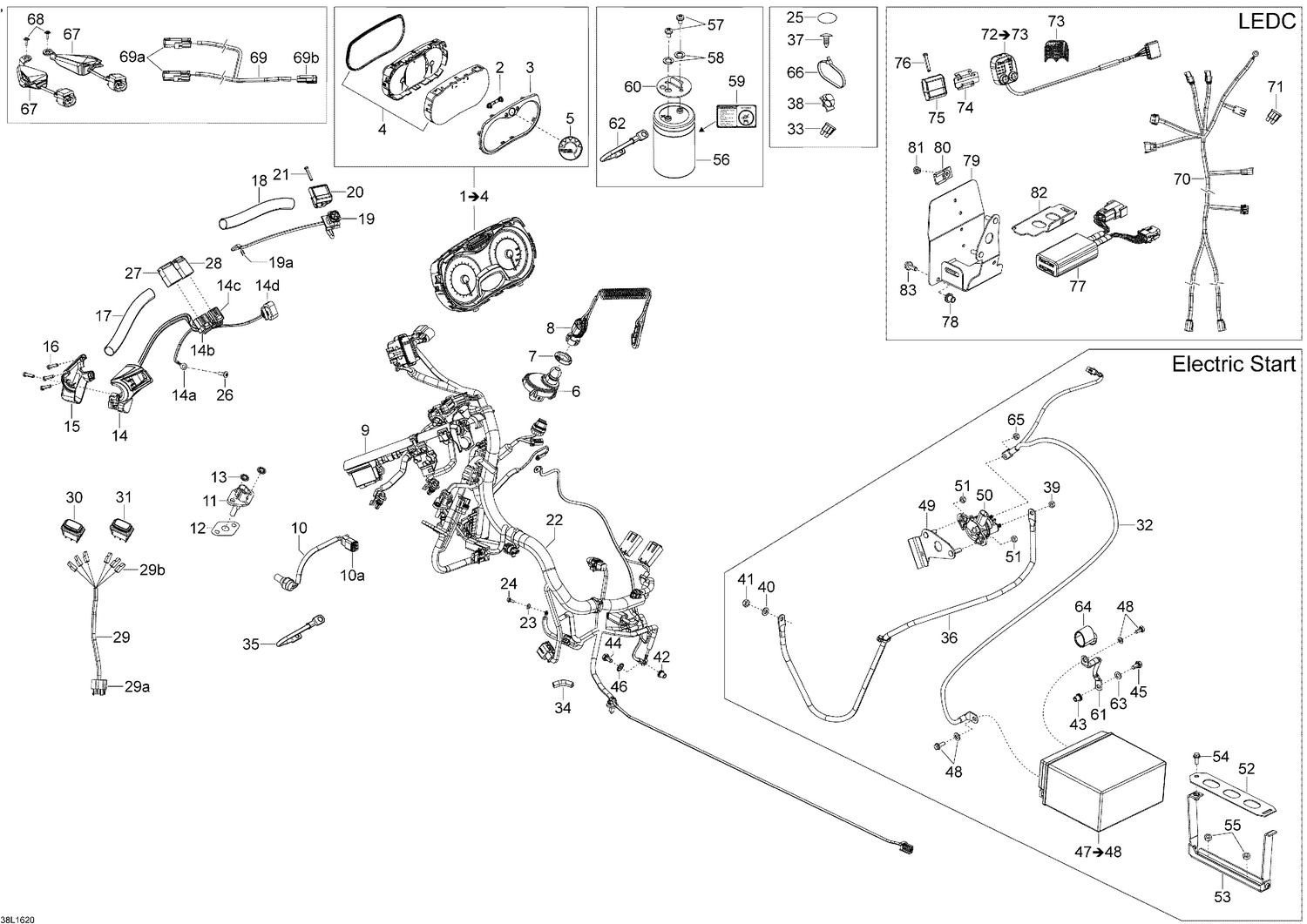

10- Electrical System
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 415129355 | Speedometer Button |
| 3 | 415129348 | Gauge Ring |
| 4 | 415129349 | Lens |
| 5 | 516006224 | BRP Logo |
| 6 | 515178840 | Terminal Dess One-Wire This part replaces 515178049. |
| 7 | 278002963 | Safety Nut (DESS Switch) |
| 8 | 515178044 | DESS Cap |
| 9 | 515177134 | Plate |
| 10 | 420664509 | Temperature Senor This part replaces 515177813. |
| 10a | 278000632 | Female Terminal |
| 10a | 278001661 | FEMALE TERMINAL - Call your local BRP dealership |
| 10a | 293000052 | Sealing Cap |
| 10a | 515175670 | Female Housing, 2 Circuits |
| 10a | 515175675 | Female Lock |
| 11 | 515176366 | Air Temperature Sensor |
| 12 | 508000769 | Ring |
| 13 | 389804300 | Push Nut |
| 14 | 515178305 | LH Switch Housing This part replaces 515177678. |
| 14a | 515175504 | Ring Terminal |
| 14b | 515175231 | Female Terminal |
| 14b | 515175543 | Female Housing, 6 Circuits |
| 14c | 515175231 | Female Terminal |
| 14c | 515175845 | Female Housing, 4 Circuits |
| 14d | 710001930 | Female Housing, 12 Circuits |
| 15 | 515177149 | Housing Plate |
| 16 | 250000671 | Torx Screw |
| 17 | 415129879 | Protector Tube |
| 18 | 415129879 | Protector Tube |
| 19 | 515177362 | Kill Switch |
| 19a | 515175232 | Male Terminal |
| 20 | 515177310 | Emergency Stop Switch Support |
| 21 | 250000263 | Torx Screw #8-18 |
| 23 | 234141601 | Lock Washer 4 mm |
| 24 | 250000741 | Screw-Torx Button Head M4 X 8 |
| 25 | 518325560 | Adhesive Patch |
| 26 | 250000690 | Forming Screw M5 x 10 |
| 27 | 515175232 | Male Terminal |
| 27 | 515175662 | Male Housing, 6 Cirsuits |
| 28 | 515175232 | Male Terminal |
| 28 | 515175846 | Male Housing, 4 Circuits |
| 29 | 515177495 | Warmer Harness |
| 29a | 710001928 | Female Housing, 8 Circuits |
| 29b | 710002398 | Female Housing, 1 Circuit |
| 29b | 710002399 | Female Terminal |
| 30 | 515177497 | Hand Warmer Rocker Switch |
| 31 | 515177498 | Thumb Warmer Rocker Switch |
| 34 | Not | Available As Spare Part - Trim |
| 35 | 515177289 | Ground Wire |
| 37 | 414644300 | Black, Dart |
| 42 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 44 | 207662044 | Hex. Flange Screw M6 X 20 |
| 46 | 250200041 | Serrated Lock Washer |
| 48 | 250000282 | Battery Bolt Kit |
| 56 | 515177272 | Capacitor |
| 57 | 250000462 | Socket Head Screw M10 x 32 |
| 58 | 250200026 | Lock Washer |
| 59 | 516006206 | Capacitor Decal |
| 60 | 515177193 | Cap |
| 66 | 293750002 | Tie-Rap 142 mm |
| 66 | 293750008 | Tie-Rap 368 mm |
| 66 | 414115200 | Tie-Rap 180 mm |
