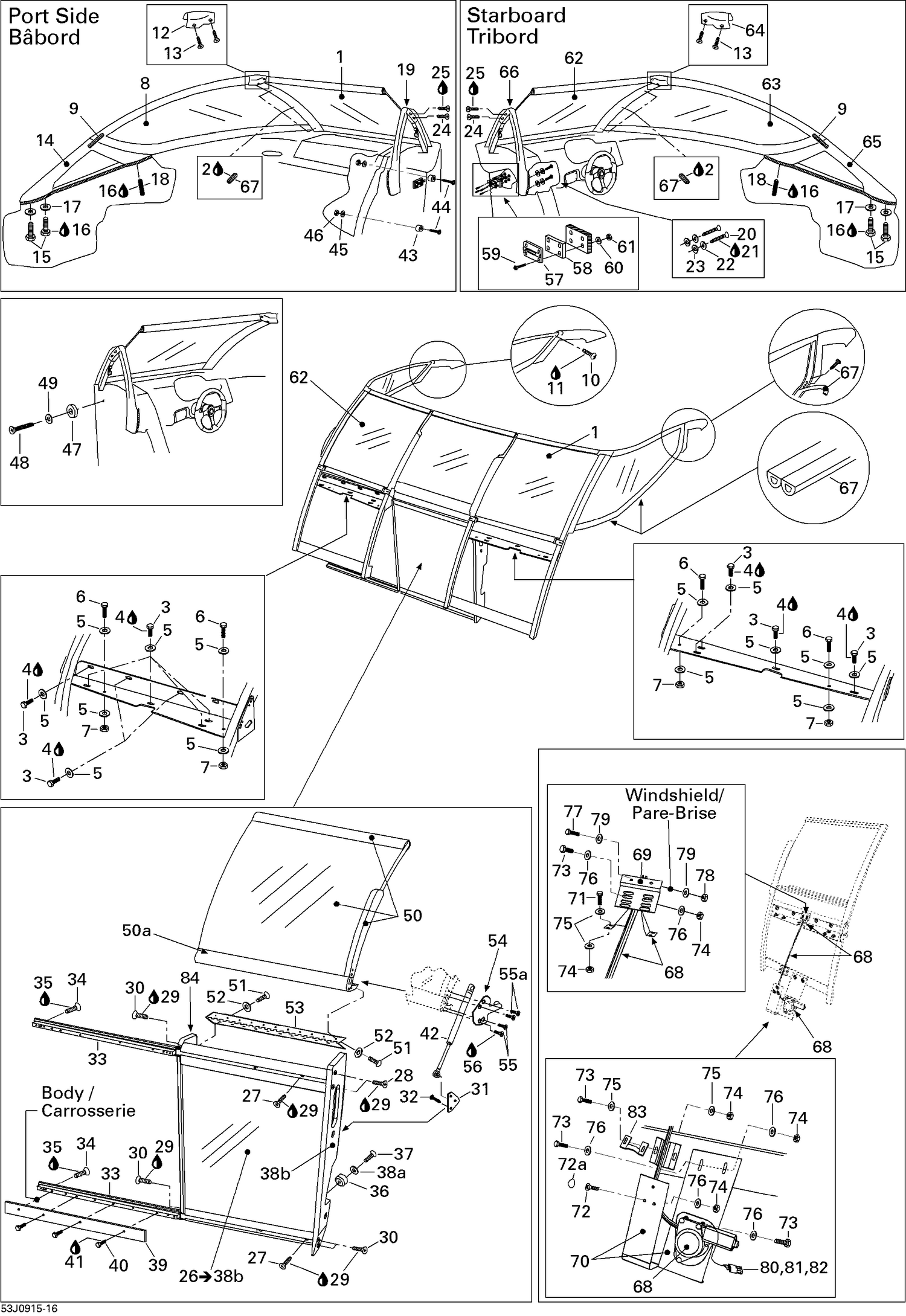

| Ref | Part Number | Description |
|---|
| 1 |
204072991 |
WINDSHIELD GATE ASS'Y, PORT SIDE - Call your local BRP dealership |
| 2 |
293800060 |
Loctite 243, 10 ml |
| 3 |
207161660 |
Hex. Screw M6 X 16 |
| 4 |
293800060 |
Loctite 243, 10 ml |
| 5 |
234062600 |
Flat Washer M6, Stainless |
| 6 |
207162560 |
Hex. Screw M6 X 25 |
| 7 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 8 |
204072506 |
WINDSHIELD WING ASS'Y, PORT SIDE - Call your local BRP dealership |
| 9 |
204130183 |
STAINLESS STEEL DOWEL PIN 1/4 - Call your local BRP dealership |
| 10 |
208651060 |
SCREW M5 X 10 - Call your local BRP dealership |
| 11 |
293800060 |
Loctite 243, 10 ml |
| 12 |
204072925 |
Corner Cap, Port Side |
| 13 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 14 |
204440049 |
WINDSHIELD SUPPORT - Call your local BRP dealership |
| 15 |
207182560 |
HEX. SCREW M8 X 25 - Call your local BRP dealership |
| 16 |
293800060 |
Loctite 243, 10 ml |
| 17 |
234082600 |
Flat Washer 8 mm, Stainless |
| 18 |
Not |
Available As Spare Part - Threaded Stud M8 x 25 |
| 19 |
204440048 |
STANCHION, PORT SIDE - Call your local BRP dealership |
| 20 |
207181860 |
Hex. Screw M8 X 18 |
| 21 |
293800060 |
Loctite 243, 10 ml |
| 22 |
234082600 |
Flat Washer 8 mm, Stainless |
| 23 |
234181601 |
Lock Washer 8 mm, Stainless |
| 24 |
208451260 |
PHILLIPS SCREW M5 X 12 - Call your local BRP dealership |
| 25 |
293800060 |
Loctite 243, 10 ml |
| 27 |
208640860 |
PHILLIPS SCREW M4 X 8 - Call your local BRP dealership |
| 28 |
208563560 |
Phillips Screw M6 X 35 |
| 29 |
293800060 |
Loctite 243, 10 ml |
| 30 |
208562560 |
Phillips Screw M6 X 25 |
| 31 |
204073065 |
SHOCK BRACKET - Call your local BRP dealership |
| 32 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 33 |
204073342 |
DRAWER SLIDE - Call your local BRP dealership |
| 34 |
208641260 |
PHILLIPS SCREW M4 X 12 - Call your local BRP dealership |
| 35 |
293800060 |
Loctite 243, 10 ml |
| 36 |
204073815 |
BUMPER PAD - Call your local BRP dealership This part replaces 204070760. |
| 37 |
204100147 |
PHILLIPS SCREW 6 X 1/2 - Call your local BRP dealership |
| 38a |
234032600 |
Flat Washer M3, Stainless |
| 38b |
204440441 |
Sliding Door End Cap |
| 39 |
204072896 |
Walk-Thru Door Support |
| 40 |
207163060 |
Hex. Screw M6 X 30 |
| 41 |
293800060 |
Loctite 243, 10 ml |
| 42 |
204072899 |
GAS SHOCK - Call your local BRP dealership |
| 43 |
204130166 |
LOCATOR STUD - Call your local BRP dealership |
| 44 |
205053560 |
SOCKET SCREW M5 X 35 - Call your local BRP dealership |
| 45 |
234051600 |
Flat Washer M5, Stainless |
| 46 |
232551600 |
Hex. Elastic Nut M5 |
| 47 |
204073815 |
BUMPER PAD - Call your local BRP dealership This part replaces 204070760. |
| 48 |
204100147 |
PHILLIPS SCREW 6 X 1/2 - Call your local BRP dealership |
| 49 |
234032600 |
Flat Washer M3, Stainless |
| 50 |
204072727 |
CENTER DOOR WINDOW - Call your local BRP dealership |
| 50a |
204073096 |
CENTRAL WINDOW EXTRUSION - Call your local BRP dealership |
| 51 |
208640860 |
PHILLIPS SCREW M4 X 8 - Call your local BRP dealership |
| 52 |
234041600 |
Flat Washer 4 mm, Stainless |
| 53 |
204073092 |
HINGE - Call your local BRP dealership |
| 54 |
204072900 |
Shock Support, Port Side |
| 54 |
204072901 |
Shock Support, Starboard |
| 55 |
208451260 |
PHILLIPS SCREW M5 X 12 - Call your local BRP dealership |
| 55a |
Not |
Available As Spare Part - Tapping Phillips Screw #10X1/2" |
| 56 |
293800060 |
Loctite 243, 10 ml |
| 57 |
204100233 |
Latch Bolt |
| 58 |
204440038 |
LATCH SPACER - Call your local BRP dealership |
| 58 |
204440052 |
LATCH SPACER - Call your local BRP dealership |
| 59 |
208443060 |
Phillips Screw M4 X 30 |
| 60 |
234041600 |
Flat Washer 4 mm, Stainless |
| 61 |
232541600 |
Elastic Stop Nut M4 |
| 62 |
204072995 |
WINDSHIELD GATE ASS'Y, STARBOARD - Call your local BRP dealership |
| 63 |
204072517 |
Windshield Wing Ass'y, Starboard |
| 64 |
204072926 |
Corner Cap, Starboard |
| 65 |
204440051 |
Windshield Wing Support, Starboard |
| 66 |
204440050 |
STANCHION, STARBOARD - Call your local BRP dealership |
| 67 |
204072544 |
WINDSHIELD INSTALLATION HARDWARE KIT - Call your local BRP dealership |
| 68 |
204072539 |
WINDSHIELD ACTUATOR - Call your local BRP dealership |
| 69 |
204073015 |
WINDSHIELD ACTUATOR BRACKET - Call your local BRP dealership |
| 70 |
204073014 |
ACTUATOR MOTOR SUPPORT - Call your local BRP dealership |
| 71 |
207164560 |
Hex. Screw M6 X 45 |
| 72 |
208662560 |
PHILLIPS SCREW M6 X 25 - Call your local BRP dealership |
| 72a |
204440047 |
CAP SCREW - Call your local BRP dealership |
| 73 |
207161660 |
Hex. Screw M6 X 16 |
| 74 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 75 |
234061600 |
Stainless Flat Washer M6 |
| 76 |
234062600 |
Flat Washer M6, Stainless |
| 77 |
207152060 |
Hex. Screw M5 X 20 |
| 78 |
232551600 |
Hex. Elastic Nut M5 |
| 79 |
234051600 |
Flat Washer M5, Stainless |
| 80 |
278000217 |
Female Housing, 2 Circuits |
| 81 |
278000222 |
Male Terminal |
| 82 |
278000218 |
Wire Seal |
| 83 |
204440029 |
WINDSHIELD STOPPER - Call your local BRP dealership |
