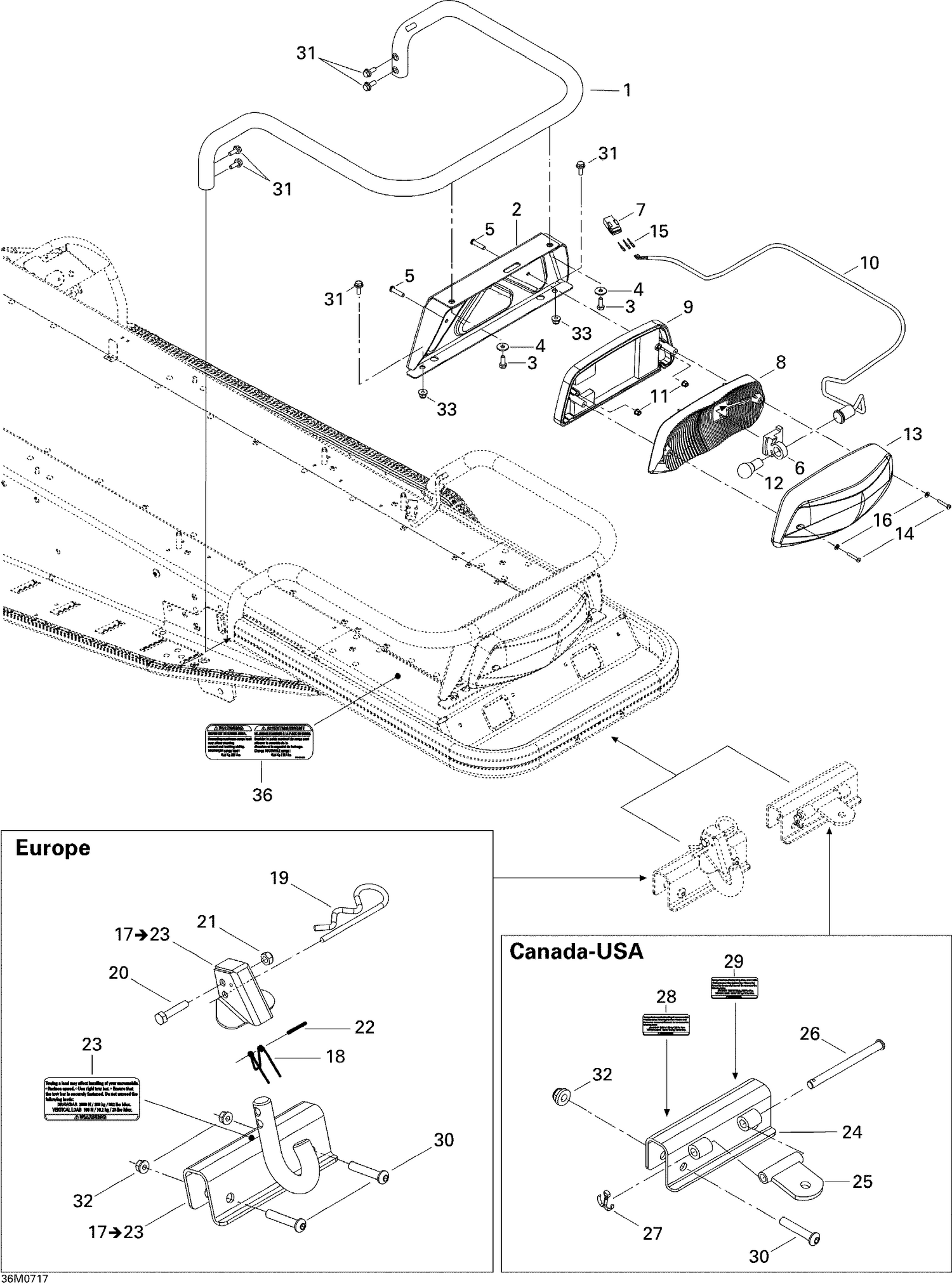

| Ref | Part Number | Description |
|---|
| 1 |
511000422 |
LUGGAGE RACK - Call your local BRP dealership |
| 2 |
511000187 |
REAR LIGHT SUPPORT - Call your local BRP dealership |
| 3 |
207161644 |
Hex. Screw M6 X 16 |
| 4 |
250200082 |
Flat Washer This part replaces 391302000. |
| 5 |
205452560 |
SOCKET SCREW M5 X 25 - Call your local BRP dealership |
| 6 |
511000431 |
BULB SUPPORT - Call your local BRP dealership |
| 7 |
515175494 |
Male Housing, 3 Circuits |
| 8 |
510004442 |
REFLECTOR - Call your local BRP dealership |
| 9 |
515176272 |
REAR LIGHT HOUSING - Call your local BRP dealership |
| 10 |
511000448 |
BULB SOCKET - Call your local BRP dealership |
| 11 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 12 |
520000758 |
Bulb This part replaces 410504100. |
| 13 |
511000315 |
Lens |
| 14 |
209632580 |
PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership |
| 15 |
515175232 |
Male Terminal |
| 16 |
414516400 |
Washer - Call your local BRP dealership |
| 30 |
205484546 |
Socket Head Screw M8 X 45 |
| 31 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 32 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 33 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
