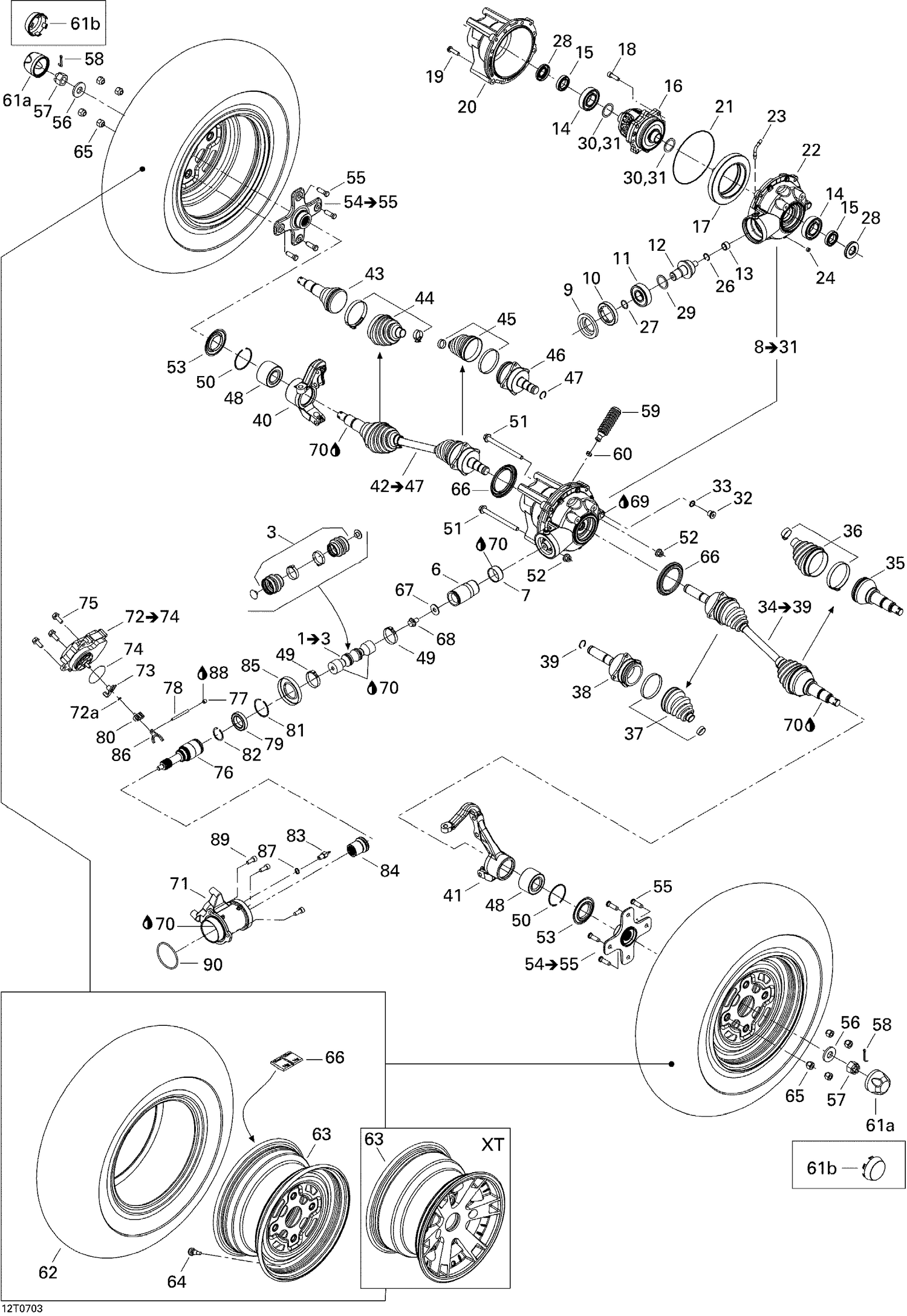

07- Drive System, Front STD

07- Drive System, Front STD

Parts (78)

RefPart NumberDescription
3 703500255 Rubber Boot Kit
6 703500678 Front Bushing Shaft Kit This part replaces 705400149.
7 705400036 Wear Ring
9 705401481 Oil Seal This part replaces 705400027.
10 705401603 Nut This part replaces 705500789.
11 705500260 Ball Bearing
12 705500268 GEAR, 10 TEETH - Call your local BRP dealership
13 705500261 Needle Bearing
14 705401606 Ball Bearing This part replaces 705500259.
15 293350044 Ball Bearing
16 703500871 Ens Differentiel*Differential Kit This part replaces 705400407.
17 705400192 GEAR, 36 TEETH - Call your local BRP dealership
18 705400101 RING GEAR SCREW - Call your local BRP dealership
19 705401601 Screw This part replaces 705500264.
20 705400762 FRONT COVER - Call your local BRP dealership This part replaces 705400297.
21 705500265 Seal
22 705400646 Front Cover This part replaces 705400299.
23 705500893 VENT VALVE - Call your local BRP dealership This part replaces 705500262.
24 705500894 Drain Plug This part replaces 705500245.
26 705500269 RETAINING RING - Call your local BRP dealership
27 705500267 O-Ring
28 705401618 Gasket This part replaces 705500255.
29 705502061 Pinion Gear Shim 1.67 mm This part replaces 703500049.
30 705401604 Shim This part replaces 703500288.
31 705401604 Shim This part replaces 703500050.
32 705500504 Fill Level Plug
33 705500506 Copper Washer
35 705500560 CV Joint
36 705400511 Wheel Boot Kit
37 705400512 Differential Boot Kit
38 705400513 RH Plunging Joint
39 705400042 CIRCLIP - Call your local BRP dealership
40 705400816 LH Knuckle This part replaces 705400341.
41 705400818 RH Knuckle This part replaces 705400345.
43 705500560 CV Joint
44 705400511 Wheel Boot Kit
45 705400512 Differential Boot Kit
46 705400514 LH Plunging Joint
47 705400042 CIRCLIP - Call your local BRP dealership
48 293350150 Ball Bearing This part replaces 293350040.
49 293650138 Oetiker Gear Clamp 44.0MM
50 293370019 Circlip
51 230602546 Hex. Flange Screw M10 X 125
52 233201436 Hex. Flange Elastic Nut M10 This part replaces 233201416.
53 705501121 Wear Sleeve This part replaces 705500564.
55 250300055 Wheel Stud M10 X 1.25 This part replaces 250300020.
56 250200171 Conical Spring Washer M18 This part replaces 250200049.
57 232291413 Hex. Flange Castellated Nut M18 This part replaces 250100047.
58 250400036 Cotter Pin This part replaces 250400016.
59 705400552 Rubber Bellow This part replaces 705400352.
60 293650042 Oetiker Clamp
61b XXX Not Available As Spare Parts
62 705400213 Front Tire
64 705400193 Rim Valve With Cap
66 705400780 Wear Sleeve This part replaces 705400309.
67 250200014 Flat Washer M10
68 250000060 Flange Screw M10 X 16, Scotch Grip
69 779221 JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML This part replaces 293600011.
70 293550010 Synthetic Grease, 400 G
71 705400169 HOUSING - Call your local BRP dealership
72a 293370042 Circlip This part replaces 415129176.
73 705400274 Fork
74 293300117 O-Ring
75 250000137 Hex. Flange Screw M8 X 20, Scotch Grip
76 705400917 UNION SHAFT - Call your local BRP dealership This part replaces 705400172.
77 206580890 Pressure Screw M8 X 8
78 250400025 Dowell Pin
79 705400249 Ball Bearing
80 705402139 Slider This part replaces 705400538.
81 293370029 Circlip
82 293370030 Circlip
83 710000324 SWITCH - Call your local BRP dealership
84 705400389 Coupling Sleeve
85 293250138 Oil Seal
86 705401553 Shifter Lever Plate This part replaces 705400387.
87 705601628 Copper Washer This part replaces 705600310.
88 293800060 Loctite 243, 10 ml
89 250000136 Socket Head Screw M8 X 20, Scotch Grip
