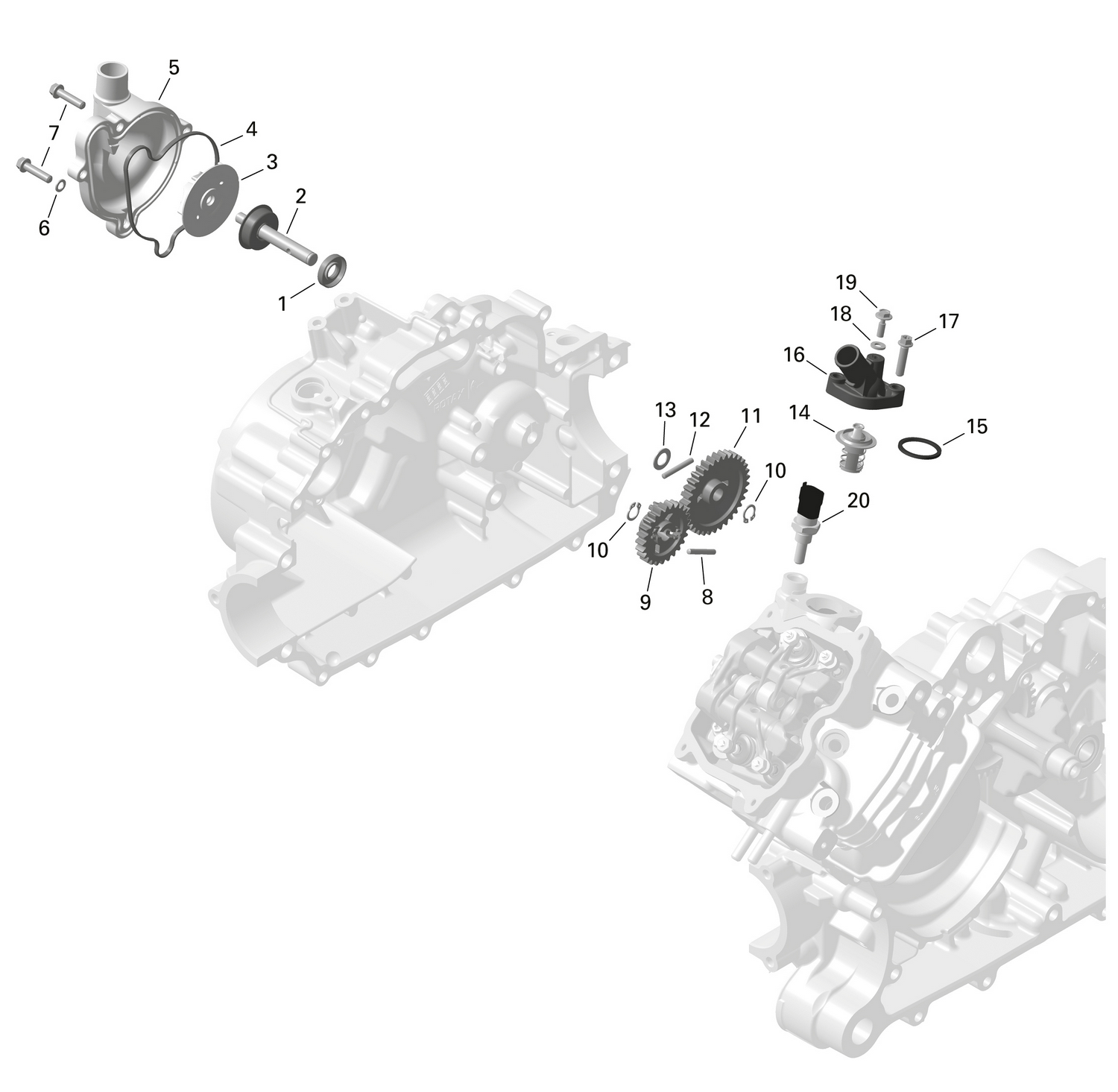

01- ROTAX - Engine Cooling
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420650315 | Oil Seal |
| 2 | 420620171 | Waterpump Shaft Ass'y |
| 3 | 420222505 | Water Impeller |
| 4 | 420630270 | Gasket This part replaces 420630271. |
| 5 | 420222680 | Water Pump Housing |
| 6 | 420230415 | Seal Washer |
| 7 | 420440234 | Torx Flange Screw M6 X 25 |
| 8 | 420232431 | Needle Pin |
| 9 | 420635191 | Idle Gear, 25 Teeth |
| 10 | 504152282 | Circlip |
| 11 | 504152282 | Circlip |
| 12 | 420635620 | Idle Gear, 34 Teeth |
| 13 | 420232431 | Needle Pin |
| 14 | 420827590 | Thrust Washer |
| 16 | 420650300 | Thermostat Gasket |
| 17 | 420222696 | Thermostat Cover This part replaces 420222691. |
| 18 | 420440234 | Torx Flange Screw M6 X 25 |
| 19 | 420650255 | Gasket Ring |
| 20 | 420441621 | Screw M5 X 16 |
