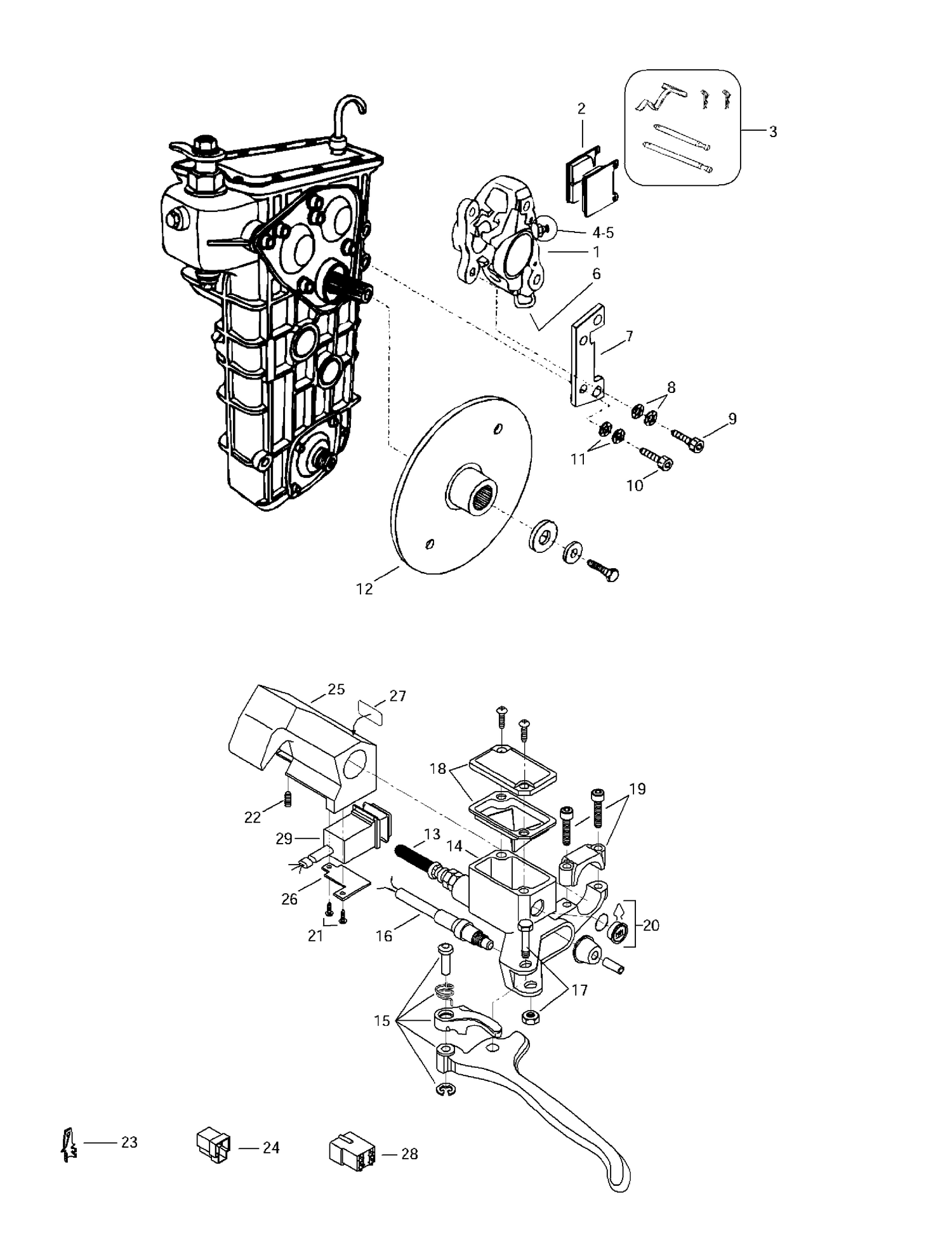

| Ref | Part Number | Description |
|---|
| 2 |
415084600 |
Brake Pad Kit This part replaces 414990000. |
| 3 |
414990700 |
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership |
| 4 |
414989800 |
BLEEDER SCREW - Call your local BRP dealership |
| 5 |
414989700 |
BOOT-QTS 20 - Call your local BRP dealership |
| 6 |
414989900 |
RIGID TUBING - Call your local BRP dealership |
| 7 |
M5441344 |
Support |
| 8 |
20068 |
Lock Washer D10 This part replaces M20068. |
| 9 |
M40053 |
Screw |
| 10 |
205083044 |
Socket Head Screw M8 X 30 This part replaces 222983065. |
| 11 |
M20072 |
Lock Washer |
| 12 |
M5340962 |
Brake Disk |
| 13 |
414972700 |
Hose |
| 15 |
507032428 |
LEVER - Call your local BRP dealership This part replaces 415075300. |
| 16 |
507032366 |
Microswitch This part replaces 415030100. |
| 17 |
415030000 |
Pin Ass'y |
| 18 |
415029900 |
Cap |
| 19 |
507032477 |
Clamp And Screw Kit This part replaces 415029800. |
| 20 |
414990600 |
WINDOW - Call your local BRP dealership |
| 21 |
414473200 |
Screw |
| 22 |
414440800 |
Socket Set Screw M8 X 10 |
| 23 |
409210000 |
MALE TERMINAL - Call your local BRP dealership This part replaces 409206100. |
| 24 |
409204200 |
FEMALE HOUSING - Call your local BRP dealership |
| 25 |
572079500 |
DIMMER SWITCH HOUSING - Call your local BRP dealership |
| 26 |
517283800 |
Plate |
| 27 |
415025500 |
Switch Decal |
| 28 |
409209300 |
MALE HOUSING - Call your local BRP dealership |
