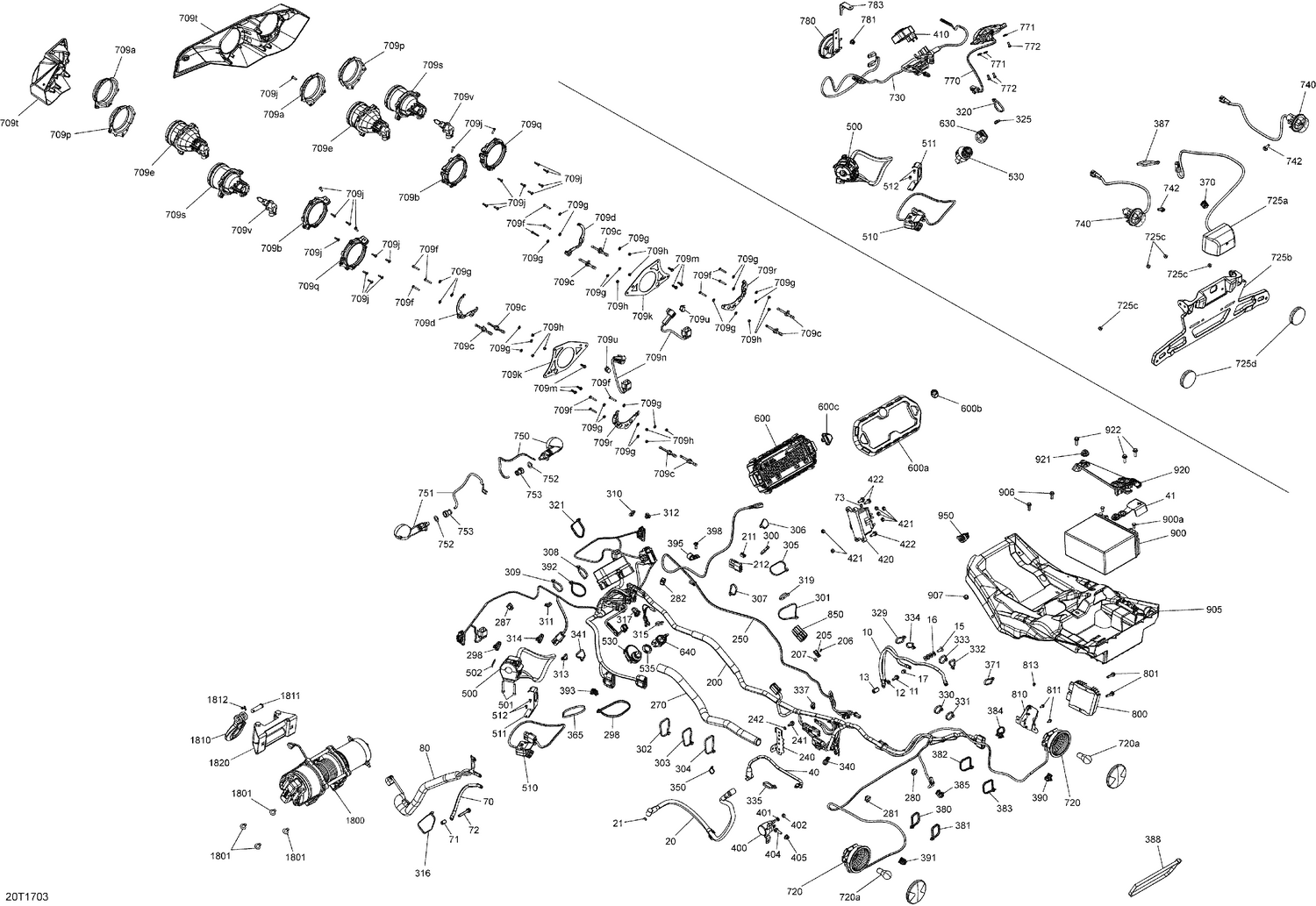

10- Electrical System - All Models
Parts (115)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 710004382 | Ground Cable |
| 12 | 234161601 | Lock Washer Helical M6 |
| 15 | 250000717 | Torx Head Screw M6 X 16 |
| 16 | 224061121 | Flat Washer |
| 17 | 232361493 | Domed Nut M6 |
| 20 | 710004377 | Positive Cable |
| 21 | 232561414 | Elastic Stop Nut M6 |
| 41 | 710006729 | Battery Cable Cap This part replaces 710002569. |
| 205 | 270000141 | Clip |
| 206 | 390402300 | Pop Rivet 3/16" |
| 207 | 391301600 | Washer |
| 240 | 710004118 | Connector Bracket |
| 241 | 210262040 | Hex. Flange Screw M6 X 20 |
| 242 | 234461608 | External Serrated Lock Washer 6 mm |
| 250 | 710004324 | Brake Harness |
| 280 | 414227300 | Clip |
| 281 | 414227300 | Clip |
| 282 | 414227300 | Clip |
| 298 | 293750008 | Tie Wrap 368 mm |
| 298 | 414115200 | Tie-Rap 180 mm |
| 300 | 414115200 | Tie-Rap 180 mm |
| 301 | 293750008 | Tie Wrap 368 mm |
| 302 | 293750008 | Tie Wrap 368 mm |
| 303 | 293750008 | Tie Wrap 368 mm |
| 304 | 293750008 | Tie Wrap 368 mm |
| 305 | 293750008 | Tie Wrap 368 mm |
| 306 | 293750008 | Tie Wrap 368 mm |
| 307 | 293750008 | Tie Wrap 368 mm |
| 308 | 293750008 | Tie Wrap 368 mm |
| 309 | 293750008 | Tie Wrap 368 mm |
| 310 | 414115200 | Tie-Rap 180 mm |
| 311 | 414115200 | Tie-Rap 180 mm |
| 312 | 414115200 | Tie-Rap 180 mm |
| 313 | 414115200 | Tie-Rap 180 mm |
| 314 | 414115200 | Tie-Rap 180 mm |
| 315 | 414115200 | Tie-Rap 180 mm |
| 316 | 293750008 | Tie Wrap 368 mm |
| 317 | 710002896 | Tie-Rap Clip |
| 319 | 293750008 | Tie Wrap 368 mm |
| 320 | 293750008 | Tie Wrap 368 mm |
| 321 | 293750008 | Tie Wrap 368 mm |
| 325 | 414115200 | Tie-Rap 180 mm |
| 329 | 414115200 | Tie-Rap 180 mm |
| 330 | 414115200 | Tie-Rap 180 mm |
| 331 | 414115200 | Tie-Rap 180 mm |
| 332 | 414115200 | Tie-Rap 180 mm |
| 333 | 414115200 | Tie-Rap 180 mm |
| 334 | 414115200 | Tie-Rap 180 mm |
| 335 | 414115200 | Tie-Rap 180 mm |
| 337 | 293750002 | Tie Wrap 142 mm |
| 340 | 414115200 | Tie-Rap 180 mm |
| 341 | 414115200 | Tie-Rap 180 mm |
| 350 | 293750001 | Tie Wrap 94 mm |
| 365 | 293750008 | Tie Wrap 368 mm |
| 370 | 710002896 | Tie-Rap Clip |
| 371 | 414115200 | Tie-Rap 180 mm |
| 380 | 414115200 | Tie-Rap 180 mm |
| 381 | 414115200 | Tie-Rap 180 mm |
| 382 | 414115200 | Tie-Rap 180 mm |
| 383 | 414115200 | Tie-Rap 180 mm |
| 384 | 710002896 | Tie-Rap Clip |
| 385 | 710002896 | Tie-Rap Clip |
| 387 | 293750008 | Tie Wrap 368 mm |
| 388 | 293750041 | Tie-rap 627 mm |
| 390 | 710002896 | Tie-Rap Clip |
| 391 | 710002896 | Tie-Rap Clip |
| 392 | 293750008 | Tie Wrap 368 mm |
| 393 | 710002896 | Tie-Rap Clip |
| 400 | 710007777 | Starter Relay This part replaces 710001364. |
| 401 | 234161601 | Lock Washer Helical M6 |
| 402 | 232561414 | Elastic Stop Nut M6 |
| 404 | 207662054 | Hex. Flange Screw M6 X 20 |
| 405 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 600a | 710001183 | Trim Ring Ass'y |
| 600b | 704904615 | BRP Logo13 mm |
| 600c | 715900265 | Button |
| 709a | 710001081 | RH Low Front Housing |
| 709a | 710001083 | LH Low Front Housing |
| 709b | 710001082 | RH Low Rear Housing |
| 709b | 710001084 | LH Low Rear Housing |
| 709c | 710001147 | Setting Screw |
| 709d | 710001037 | LH Low Light Support |
| 709d | 710001094 | RH Low Light Support |
| 709e | 710002524 | Low Beam Ass'y |
| 709f | 207142544 | Hex. Screw M4 X 25 |
| 709g | 234051410 | Flat Washer M5 |
| 709h | 232541414 | Elastic Stop Nut M4 |
| 709j | 250000723 | Phillips Screw K40 X 16 |
| 709k | 705004309 | Painted Headlamp Support |
| 709m | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 709n | 710005944 | Light Harness This part replaces 710004326. |
| 709p | 710001085 | RH High Front Housing |
| 709p | 710001087 | LH High Front Housing |
| 709q | 710001086 | RH High Rear Housing |
| 709q | 710001088 | LH High Rear Housing |
| 709r | 710001036 | LH High Light Support |
| 709r | 710001115 | RH High Light Support |
| 709s | 710002525 | High Beam Ass'y |
| 709t | 705004508 | LH Front Facia |
| 709t | 705004509 | RH Front Facia |
| 709u | 414227300 | Clip |
| 709v | 415129249 | Halogen Bulb |
| 801 | 210262550 | Hex. Flange Forming Screw M6 X 25 |
| 810 | 710002587 | Rectifier Support |
| 811 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 813 | 293830005 | Rubber Bumper |
| 850 | 710003006 | Housing |
| 900a | 250000282 | Battery Bolt Kit |
| 905 | 710008370 | Battery Support This part replaces 710003990. |
| 906 | 210262050 | Hexagonal Head Screw |
| 907 | 293830005 | Rubber Bumper |
| 920 | 710009129 | Retaining Plate This part replaces 710002404. |
| 921 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 922 | 207662054 | Hex. Flange Screw M6 X 20 |
| 950 | 710001248 | DC Outlet |
