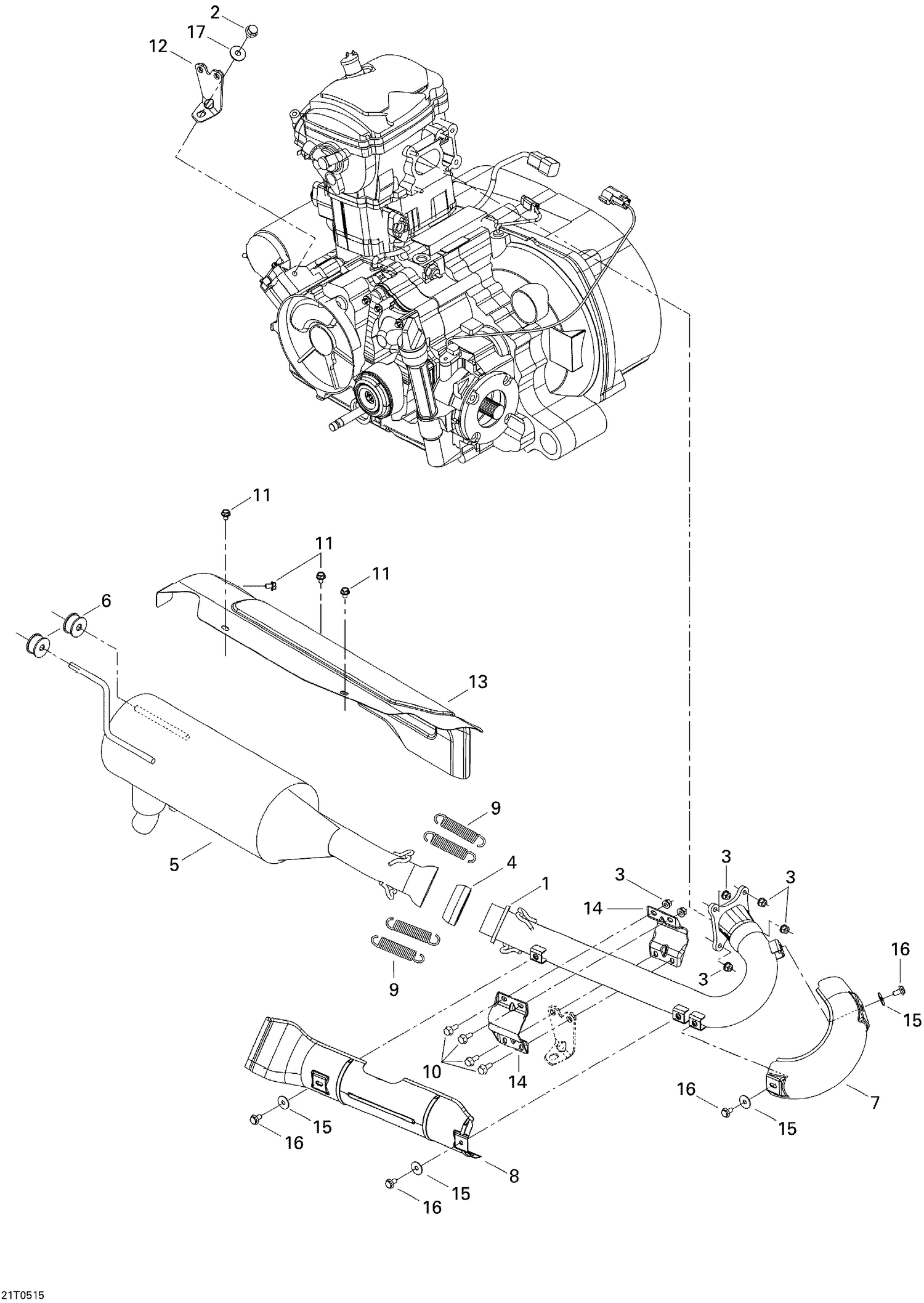

01- Exhaust System
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 707600084 | TUNED PIPE - Call your local BRP dealership |
| 2 | 207581646 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 3 | 233061414 | Hex. Flange Nut M6 |
| 4 | 707600164 | Pipe Gasket |
| 5 | 707600230 | Tuned Pipe |
| 6 | 707600702 | Anti-Vibration Rubber This part replaces 707600012. |
| 7 | 707600167 | Heat Shield Black |
| 8 | 707600168 | Heat Shield Black |
| 9 | 707600177 | SPRING - Call your local BRP dealership |
| 10 | 207661646 | Hex. Flange Screw M6 X 16 |
| 11 | 210261050 | Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 12 | 707600131 | Exhaust Support |
| 13 | 707600076 | Heat Shield |
| 14 | 707600165 | Exhaust Clamp |
| 15 | 224060201 | Flat Washer |
| 16 | 250000073 | HEX. FLANGED SCREW M6 X 12 - Call your local BRP dealership |
