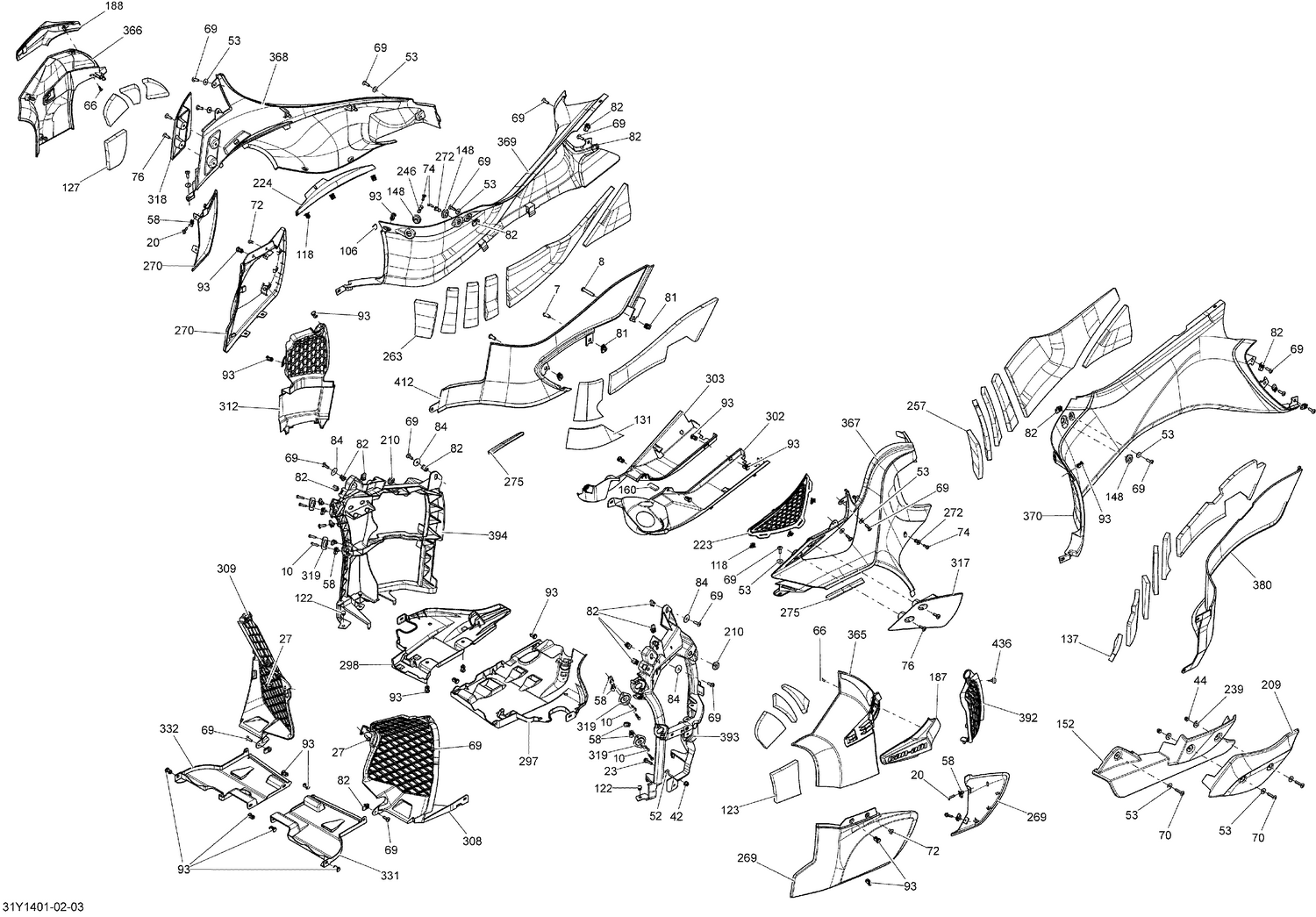

09- Body And Accessories _31Y1401
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 7 | 205482060 | Socket Head Screw M8 X 20 |
| 8 | 205484560 | Socket Screw M8 X 45 |
| 10 | 207152060 | Hex. Screw M5 X 20 |
| 20 | 207652044 | Hex.Flange Screw M5 X 20 |
| 23 | 207662544 | Hex. Flange Screw M6 X 25 |
| 27 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 42 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 44 | 233261494 | Hex. Flange Elastic Nut M6 |
| 52 | 234062410 | Flat Washer 6 mm |
| 53 | 234062670 | Stainless Steel Flat Washer |
| 58 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 66 | 250000759 | Torx Truss Pt K40 X 16 This part replaces 250000294. |
| 69 | 250000350 | Torx Truss Screw M6 X 20 |
| 70 | 250000842 | Stainless, Torx Screw M6 X 30 This part replaces 250000371. |
| 72 | 250000454 | Torx Screw M6 X 12 |
| 74 | 250000459 | Torx Screw, K50X16 |
| 76 | 250000488 | Torx Truss Screw M6 X 20 |
| 81 | 250100111 | Panel Nut M8 |
| 84 | 250200029 | Washer M6 |
| 93 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 106 | 293830143 | Rubber Pad |
| 122 | 518321954 | Panel Fastener |
| 123 | 705009311 | Side Foam LH This part replaces 518324751. |
| 127 | 705009312 | Side Foam RH This part replaces 518324752. |
| 131 | 518324756 | RH LOWER PANEL FOAM - Call your local BRP dealership |
| 137 | 518327490 | LH Lower Panel Foam |
| 148 | 705000321 | Oval Washer |
| 152 | 705002092 | Lower Belt Guard |
| 160 | 219704364 | Neoprene Seal (1PAC=3M) |
| 209 | 705009446 | Belt Guard Moulding This part replaces 705003250. |
| 210 | 705003264 | Grommet |
| 223 | 705003385 | LH Upper Side Panel Grille |
| 224 | 705003386 | RH Upper Side Panel Grille |
| 239 | 705003696 | Adhesive Spacer |
| 246 | 705003746 | Angled Knob |
| 257 | 705009313 | LH FOAM - Call your local BRP dealership This part replaces 705003757. |
| 263 | 705009314 | RH FOAM - Call your local BRP dealership This part replaces 705003758. |
| 269 | 705003759 | LH Water Deflector Ass'y |
| 270 | 705003760 | RH Water Deflector Ass'y |
| 272 | 705003842 | Knob |
| 275 | 219704368 | Seal Tray 1000Mm Long |
| 297 | 705004610 | LH Deflector Pannel |
| 298 | 705004611 | RH Deflector Pannel |
| 302 | 705004631 | LH Tank Cover Ass'y |
| 303 | 705004632 | RH Tank Cover Ass'y |
| 308 | 705004789 | LH Radiatior Moulding |
| 309 | 705004790 | RH Radiatior Moulding |
| 312 | 705004803 | RH Side Grille |
| 317 | 705004924 | LH Lower Air Deflector |
| 318 | 705004925 | RH Lower Air Deflector |
| 319 | 705005055 | Grommet Ass'y |
| 331 | 705005438 | LH Skid Plate |
| 332 | 705005439 | RH Skid Plate |
| 380 | 705006820 | LH Lower Pannel |
| 392 | 705007307 | LH Side Grille |
| 393 | 705009063 | LH Support This part replaces 705007308. |
| 394 | 705009064 | RH Support This part replaces 705007309. |
| 412 | 705007736 | RH Lower Pannel |
