Home / BRP / 2011 / MX Z / MX Z TNT 600, 2011 000MFBA00 000MFBB00 / 01- Engine 600

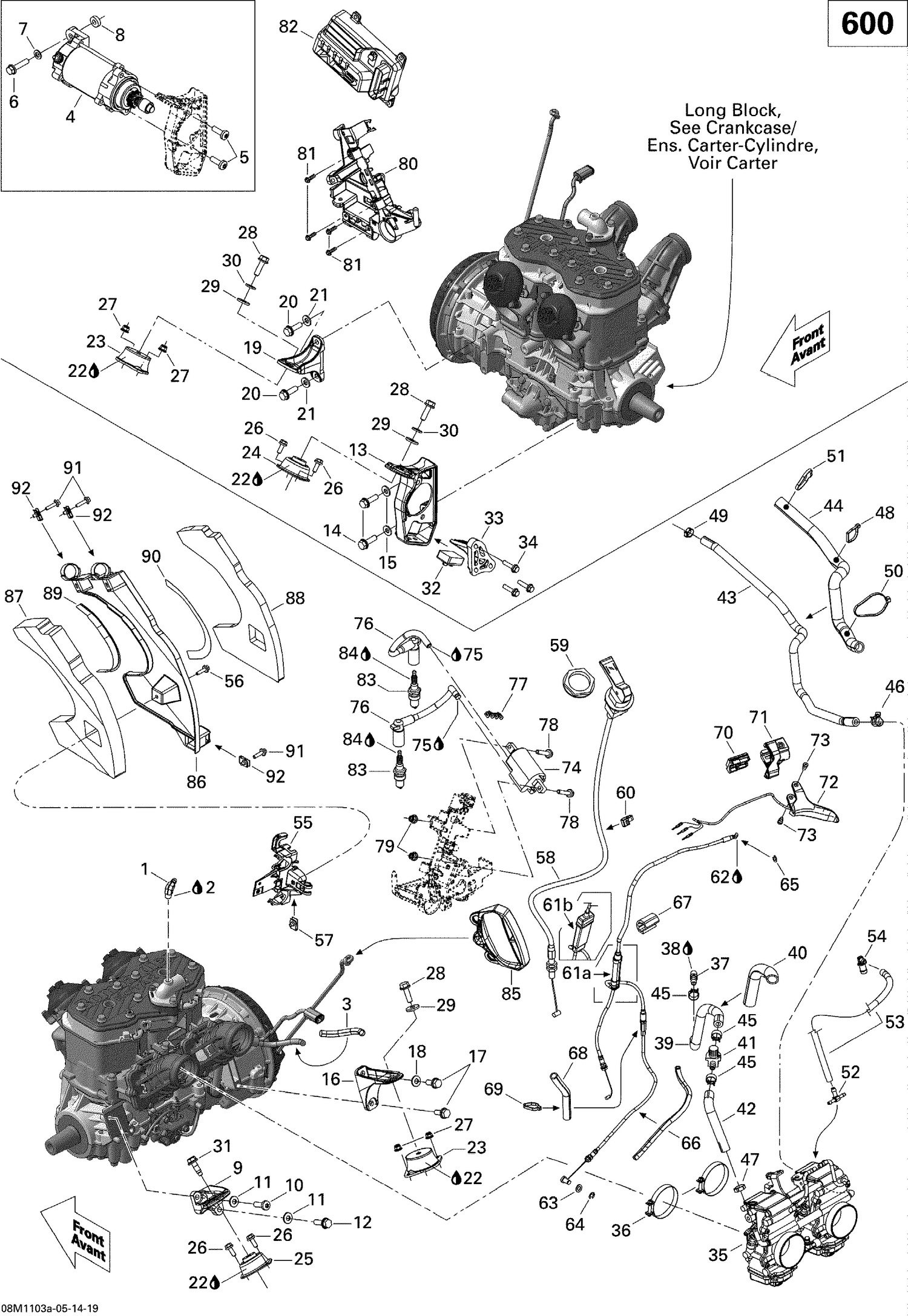

01- Engine 600

01- Engine 600

Parts (87)

RefPart NumberDescription
1 293700045 ELBOW FITTING 90 - Call your local BRP dealership
2 219704455 Was 293800018 Loctite 592, 50 ml
3 219704407 Tubing 10 MM 1000MM Long
9 512060478 Rear Support, PTO
10 250000752 Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
11 234281474 Conical Spring Washer M8
12 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
13 512060712 FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060560.
14 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
15 234281474 Conical Spring Washer M8
16 512060559 Rear Support, MAG
17 207582044 Hex. Flange Screw M8 X 20, Scotch Grip
18 234281474 Conical Spring Washer M8
19 512060469 Front Support, MAG
20 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
21 234281474 Conical Spring Washer M8
22 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
23 512060729 Rubber Mount This part replaces 512060457.
24 512061507 Vibration Damper This part replaces 512060387.
25 512060448 Rubber Mount
26 207561644 Hex. Flange Screw M6 X 16, Scotch Grip
27 233261414 Hex. Flange Elastic Nut M6 x 1.0
28 207583086 Hex. Flange Screw M8 X 30, Scotch Grip
29 503183200 Yellow, Washer
30 234281474 Conical Spring Washer M8
31 250000796 Hex. Flange Screw M8 X 1.25 X 25 This part replaces 250000361.
32 512060627 Stopper This part replaces 512060577.
33 512060576 Stopper Support
34 207562544 Hex. Flange Screw M6 X 25
35 403138815 Carburetor Kit, TM40-B418 This part replaces 403138809.
36 512059835 Gemi Clamp
37 512060196 Male Connector 1/8"-27 NPT
38 219704455 Was 293800018 Loctite 592, 50 ml
39 512060355 Hose Formed
40 219704408 Tubing 16 Mm 1000Mm Long
41 512059324 Valve 5/16”
42 512060353 Hose Formed
43 512060347 Hose Formed
44 219704408 Tubing 16 Mm 1000Mm Long
45 414655700 Spring Clamp
46 293650214 Norma Spring Clamp
47 293650125 Oetiker Clamp
48 414115200 Tie-Rap 180 mm
49 293650046 Oetiker Clamp
50 293750008 Tie Wrap 368 mm
51 414115200 Tie-Rap 180 mm
52 572045500 T-Fitting
53 219704410 Polyurethane Hose 10000Mm Long
54 414580700 Male Connector
55 512060298 Solenoid Support
56 207652044 Hex.Flange Screw M5 X 20
57 250000958 Panel Nut M5 X 0.8 This part replaces 250000079.
58 512060672 Choke Cable This part replaces 512060153.
59 512060671 Plastic Nut This part replaces 512060016.
60 414115200 Tie-Rap 180 mm
61a 512060886 Throttle Cable This part replaces 512060546.
61b XXX Not Available As Spare Parts
62 219704453 Was 293550004 Dielectric Grease, 150 g
63 234081100 Flat Washer 8 mm, Nylon
64 414753500 Circlip
65 414274500 Circlip
66 219704425 Tubing 6 Mm 3000Mm Long
67 512060313 Protector
68 219704407 Tubing 10 MM 1000MM Long
69 414115200 Tie-Rap 180 mm
70 512060198 Upper Housing Ass'y
71 512060860 Lower Housing This part replaces 512060430.
72 512061252 Throttle Handle Ass'y This part replaces 512060616.
73 732601143 Flange Screw
74 512059968 Ignition Coil
75 219704453 Was 293550004 Dielectric Grease, 150 g
76 512060291 Cable
77 410914600 Plastic Clip, Spark Plug Wire
78 207563034 Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044.
79 233261414 Hex. Flange Elastic Nut M6 x 1.0
80 512060924 Coils Support This part replaces 512060278.
81 241151640 Hex. Flange Screw K50 X 2.24 X 16
82 512060680 Calibrated Module, 600
83 512060354 Spark Plug NGK BR10ECS
84 219704453 Was 293550004 Dielectric Grease, 150 g
85 512060136 Starter Grip
86 512060338 Noise Shield
87 512060341 Inner Noise Foam
88 512060342 Outer Noise Foam
89 512060574 Heat Shield
90 512060575 Heat Shield
91 207652044 Hex.Flange Screw M5 X 20
