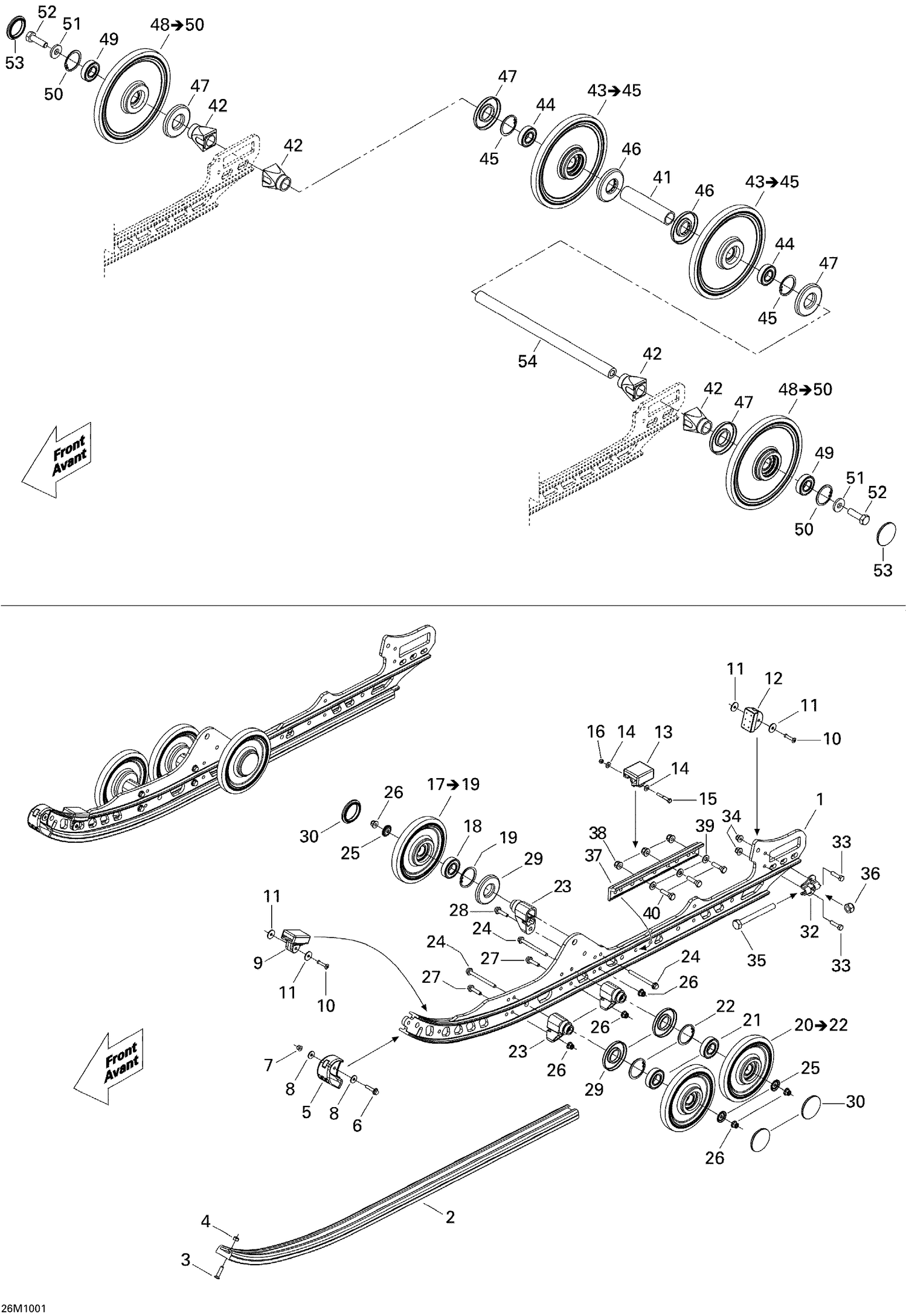

08- Rear Suspension
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503196633 | Suspension Rail 120 This part replaces 503192152. |
| 2 | 503191301 | Black Slider Shoe 120" |
| 3 | 208562531 | Phillips Screw M6 X 25 |
| 4 | 232561414 | Elastic Stop Nut M6 |
| 5 | 503191137 | Runner Protector |
| 6 | 207652544 | Hex. Flange Screw M5 X 25 |
| 7 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 8 | 391301600 | Washer |
| 9 | 503190576 | Rubber Stopper |
| 10 | 293150142 | Pop Rivet 3/16" |
| 11 | 503191273 | Washer |
| 12 | 503191291 | Rubber Stopper |
| 13 | 503190741 | RAIL STOPPER MIDDLE, FREERIDE - Call your local BRP dealership |
| 14 | 250200081 | FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 15 | 207053544 | Hex. Screw M5 X 35 |
| 16 | 232551414 | Elastic Stop Nut M5 |
| 18 | 503190396 | Ball Bearing |
| 19 | 415129371 | Retaining Ring |
| 21 | 503190396 | Ball Bearing |
| 22 | 415129371 | Retaining Ring |
| 23 | 503193894 | Casted Support This part replaces 503191833. |
| 24 | 207667056 | Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 25 | 503191820 | Wheel Cup M6 |
| 26 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 27 | 207662544 | Hex. Flange Screw M6 X 25 |
| 28 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 29 | 503190434 | Labyrinth Seal |
| 30 | 570063600 | Wheel Cap |
| 32 | 503192583 | Tensioner This part replaces 503190380. |
| 33 | 207162544 | Hex. Screw M6 X 25 |
| 34 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 35 | 230100044 | HEX. SCREW M10 X 100 - Call your local BRP dealership |
| 36 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 37 | 503191804 | RAIL REINFORCEMENT - Call your local BRP dealership |
| 38 | 233281414 | Hex. Flange Elastic Nut M8 |
| 39 | 503189157 | Washer |
| 40 | 207183044 | Hex. Screw M8 X 30 |
| 41 | 503191263 | Rear Spacer |
| 42 | 503190428 | Rear Wheel Spacer |
| 44 | 503190396 | Ball Bearing |
| 45 | 415129371 | Retaining Ring |
| 46 | 503190682 | Labyrinth Seal |
| 47 | 503190434 | Labyrinth Seal |
| 49 | 503190396 | Ball Bearing |
| 50 | 415129371 | Retaining Ring |
| 51 | 503190439 | Washer |
| 52 | 250000019 | Hex. Screw With Nylon |
| 53 | 570063600 | Wheel Cap |
