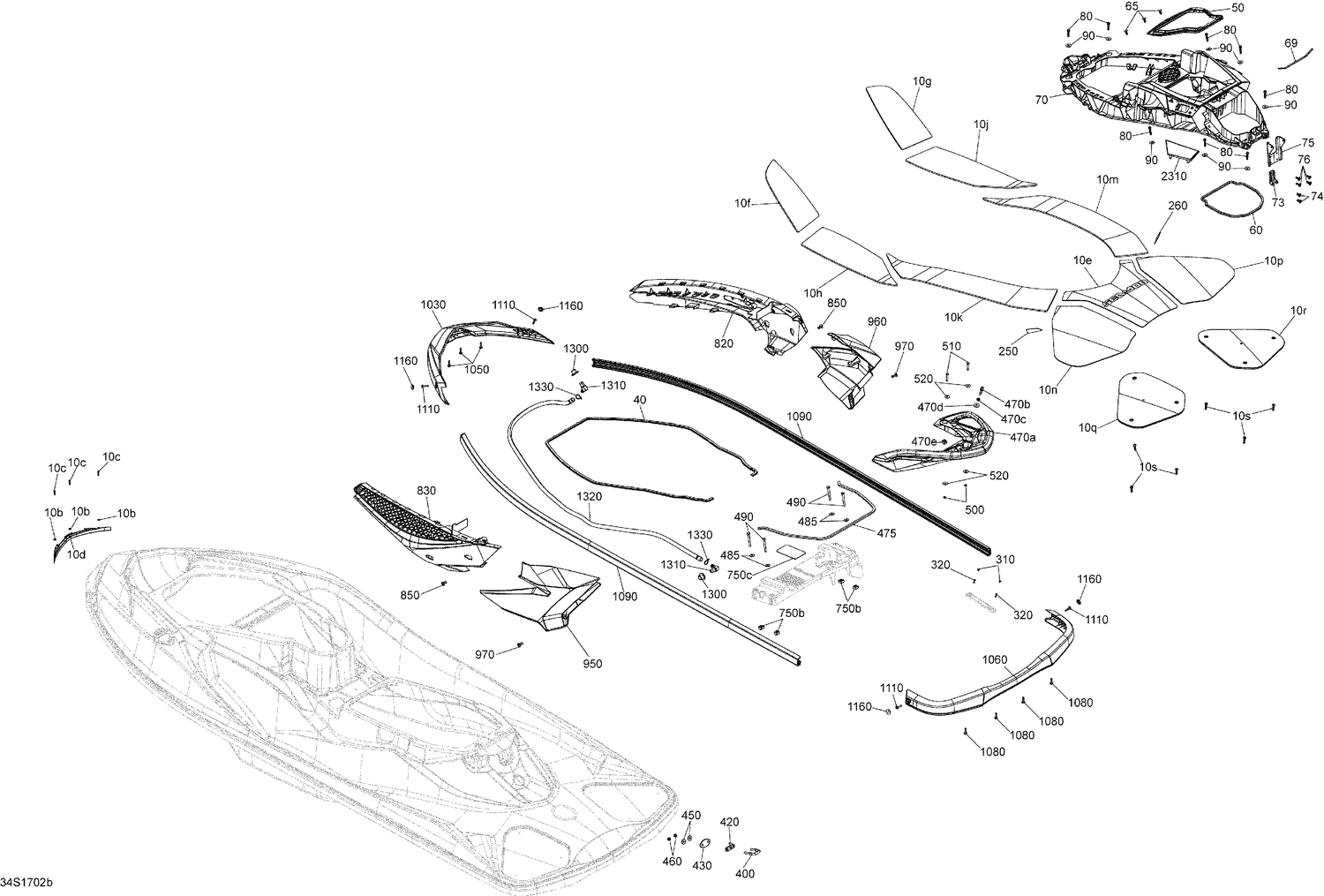

09- Body - GTX 155
Parts (66)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 234042600 | Flat Washer 4 mm, Stainless |
| 10c | 241142560 | Hex. Flange Screw K40 X 25 |
| 10d | 291002818 | DECK NOSE - Call your local BRP dealership |
| 10e | 291004291 | Carpet |
| 10f | 291003580 | LH Front Carpet |
| 10g | 291003581 | ANTI SLIP MAT FR - Call your local BRP dealership |
| 10h | 291004299 | ANTI SLIP MAT CTRL L - Call your local BRP dealership |
| 10j | 291004300 | Carpet |
| 10k | 291004289 | Carpet |
| 10m | 291004290 | Carpet |
| 10n | 291004336 | Carpet |
| 10p | 291004337 | Carpet |
| 10q | 291004295 | LH SPACER - Call your local BRP dealership |
| 10r | 291004296 | RH SPACER - Call your local BRP dealership |
| 10s | 250000879 | Plastite Torx Screw M6.81X30 |
| 40 | 293250259 | GASKET - Call your local BRP dealership |
| 50 | 293250365 | NEOPRENE SEAL - Call your local BRP dealership |
| 60 | 293250200 | NEOPRENE SEAL - Call your local BRP dealership |
| 65 | 293730010 | Black Dart |
| 69 | 219704381 | SEAL 1000MM LONG - Call your local BRP dealership |
| 70 | 291004595 | Front Module |
| 73 | 269002893 | CASE - Call your local BRP dealership |
| 74 | 293150123 | Pop Rivet 3/16" |
| 75 | 291004210 | SEAT PIVOT - Call your local BRP dealership |
| 76 | 293150123 | Pop Rivet 3/16" |
| 80 | 243163560 | Plastite Hex. Screw M6.8 X 35 |
| 90 | 234082600 | Flat Washer 8 mm, Stainless |
| 250 | 291002626 | LH Nonskid |
| 260 | 291002937 | RH NONSKID - Call your local BRP dealership |
| 310 | 293150016 | Rivet 1/8" |
| 320 | 293000014 | Black, Snap Cap |
| 400 | 292000933 | U-Clamp |
| 420 | 291002351 | Hook |
| 430 | 291001386 | Black, Finition Plate |
| 450 | 234082600 | Flat Washer 8 mm, Stainless |
| 460 | 232581200 | Hex. Elastic Nut M8 Brass |
| 470a | 291004621 | Black, Rear Handle |
| 470b | 291003878 | Seat Stud |
| 470c | 232100600 | Hex. Jam Nut M10 |
| 470d | 234002600 | Flat Washer 10 mm, Stainless |
| 470e | 271001732 | Elastic Nut M10 Housing |
| 475 | 219704378 | Gasket 3000Mm Long |
| 485 | 207065560 | Hex. Screw M6 x 55 |
| 490 | 234062600 | Flat Washer M6, Stainless |
| 500 | 232561200 | Brass Elastic Stop Nut M6 |
| 510 | 207164060 | Hex. Screw M6 X 40 |
| 520 | 250200022 | Flat Washer M6.6 X 22 |
| 750b | 269502408 | Housing Nut M6 This part replaces 269501166. |
| 750c | 219903184 | CAUTION ENGINE OIL - Call your local BRP dealership |
| 820 | 291004176 | Front RH Cosmetic Ass |
| 830 | 291004177 | FRONT LH COSMETIC ASS - Call your local BRP dealership |
| 850 | 293150123 | Pop Rivet 3/16" |
| 950 | 291004640 | LH COSMETIC - Call your local BRP dealership This part replaces 291004243. |
| 960 | 291004242 | RH Cosmetic |
| 970 | 293150123 | Pop Rivet 3/16" |
| 1030 | 291004275 | Front Bumper |
| 1050 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 1060 | 291004274 | Rear Bumper |
| 1080 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 1090 | 291004451 | Black, Side Bumper |
| 1110 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 1160 | 291002744 | Bumber Cap |
| 1300 | 513033435 | Grommet |
| 1310 | 414523600 | Elbow Fitting |
| 1320 | 219704356 | Was 275500008 Hose 12 mm |
| 1330 | 293750001 | Tie Wrap 94 mm |
