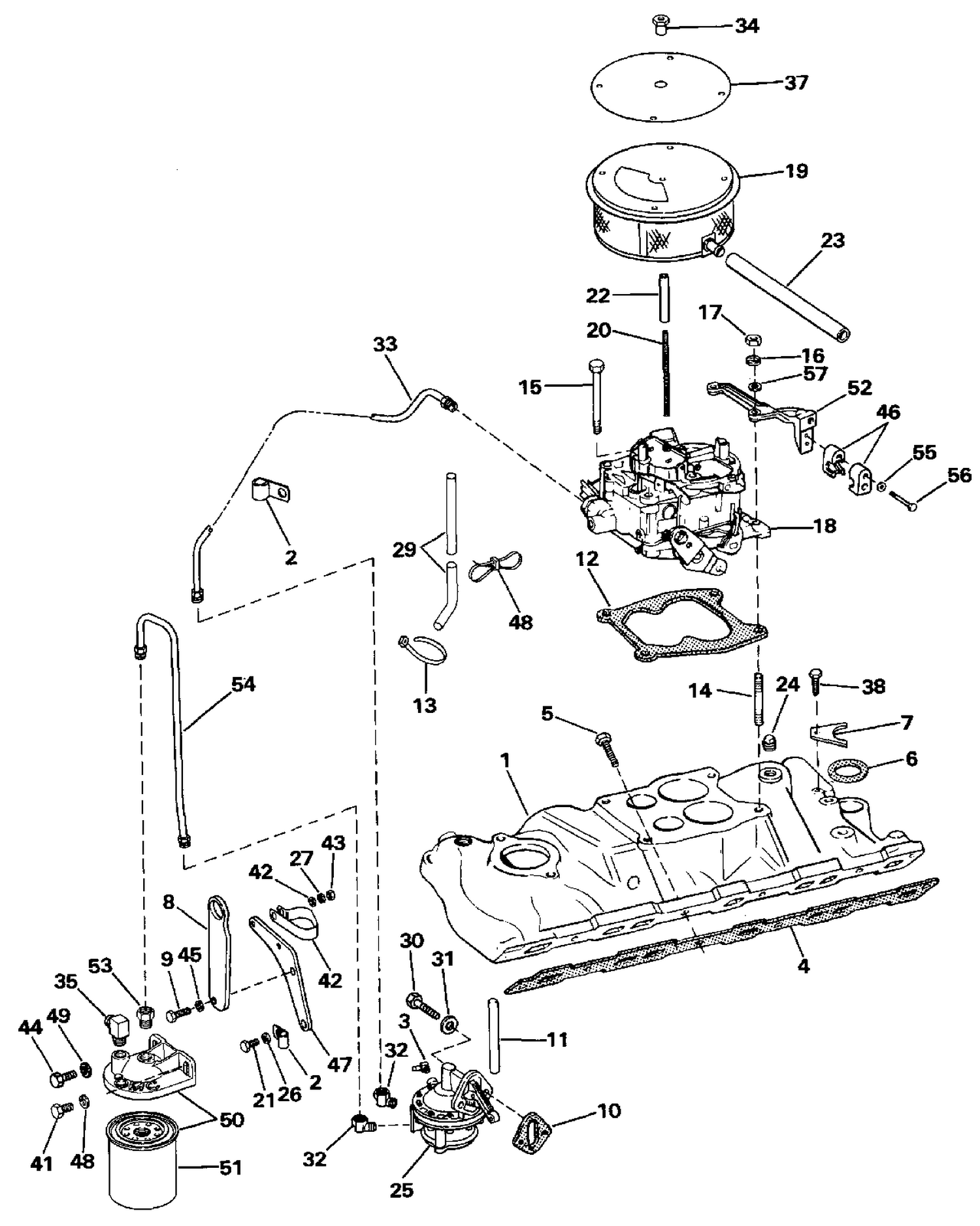

| Ref | Part Number | Description |
|---|
| 1 |
0986073 |
MANIFOLD, Intake |
| 2 |
0912782 |
CLAMP, Fuel line |
| 3 |
0908637 |
ELBOW, Bowl inlet |
| 4 |
0913697 |
GASKET SET, Manifold |
| 5 |
0454467 |
BOLT, Manifold to head (#1,#2) |
| 5 |
3736035 |
BLT, Mnfld to hd (#1, #2, #6 l sde #6 r sde |
| 6 |
0312780 |
GASKET, Dist. to manifold |
| 7 |
3852108 |
CLAMP, Distributor This part replaces 0312778. |
| 8 |
0912883 |
SCREW, Lift bracket |
| 10 |
0311064 |
GASKET, Fuel pump |
| 11 |
3852112 |
PUSH ROD, Fuel pump This part replaces 0312799. |
| 12 |
0908765 |
GASKET, Carburetor |
| 13 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 14 |
0321640 |
STUD |
| 15 |
0907725 |
SCREW, Carb mounting, front |
| 18 |
0984980 |
CARBURETOR |
| 19 |
0985053 |
FLAME ARRESTOR |
| 20 |
0912866 |
STUD, Flame arrestor |
| 21 |
0306838 |
BOLT, Bracket to head |
| 22 |
0912687 |
SPACER, Flame arrestor |
| 23 |
HOSE, |
Crankcase vent |
| 24 |
3852666 |
PLUG, Intake manifold This part replaces 0912993. |
| 25 |
0982228 |
FUEL PUMP ASSY |
| 26 |
0303269 |
L'WASHER, Upper |
| 27 |
0307708 |
RONDELLE GROWER |
| 29 |
0909938 |
HOSE, Fuel overflow |
| 30 |
0310896 |
SCREW |
| 31 |
0120177 |
L'WASHER, Alternator to brkt |
| 32 |
3852525 |
FITTING, Fuel pump This part replaces 0911455. |
| 33 |
0984899 |
FUEL LINE, Pump to carb |
| 34 |
0913088 |
NUT, Flame arrestor |
| 35 |
0174179 |
ELBOW, Filter inlet |
| 37 |
0913494 |
DECAL, Flame arrestor |
| 38 |
0306834 |
BOLT, Throttle lever retainer |
| 42 |
0912797 |
CLAMP, Hoses |
| 43 |
0309602 |
LOCK NUT, Steering handle |
| 44 |
0309484 |
SCREW |
| 45 |
0120177 |
L'WASHER, Alternator to brkt |
| 46 |
0913250 |
ANCHOR BLOCK |
| 47 |
0912781 |
BRACKET, Fuel filter |
| 50 |
0174176 |
FUEL FILTER & BRACKET ASSY |
| 52 |
0984838 |
BRACKET, Throttle cable |
| 53 |
0908951 |
FITTING, Filter outlet |
| 54 |
0984898 |
FUEL LINE, Filter to pump |
| 55 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz |
| 56 |
0913248 |
SCREW |
