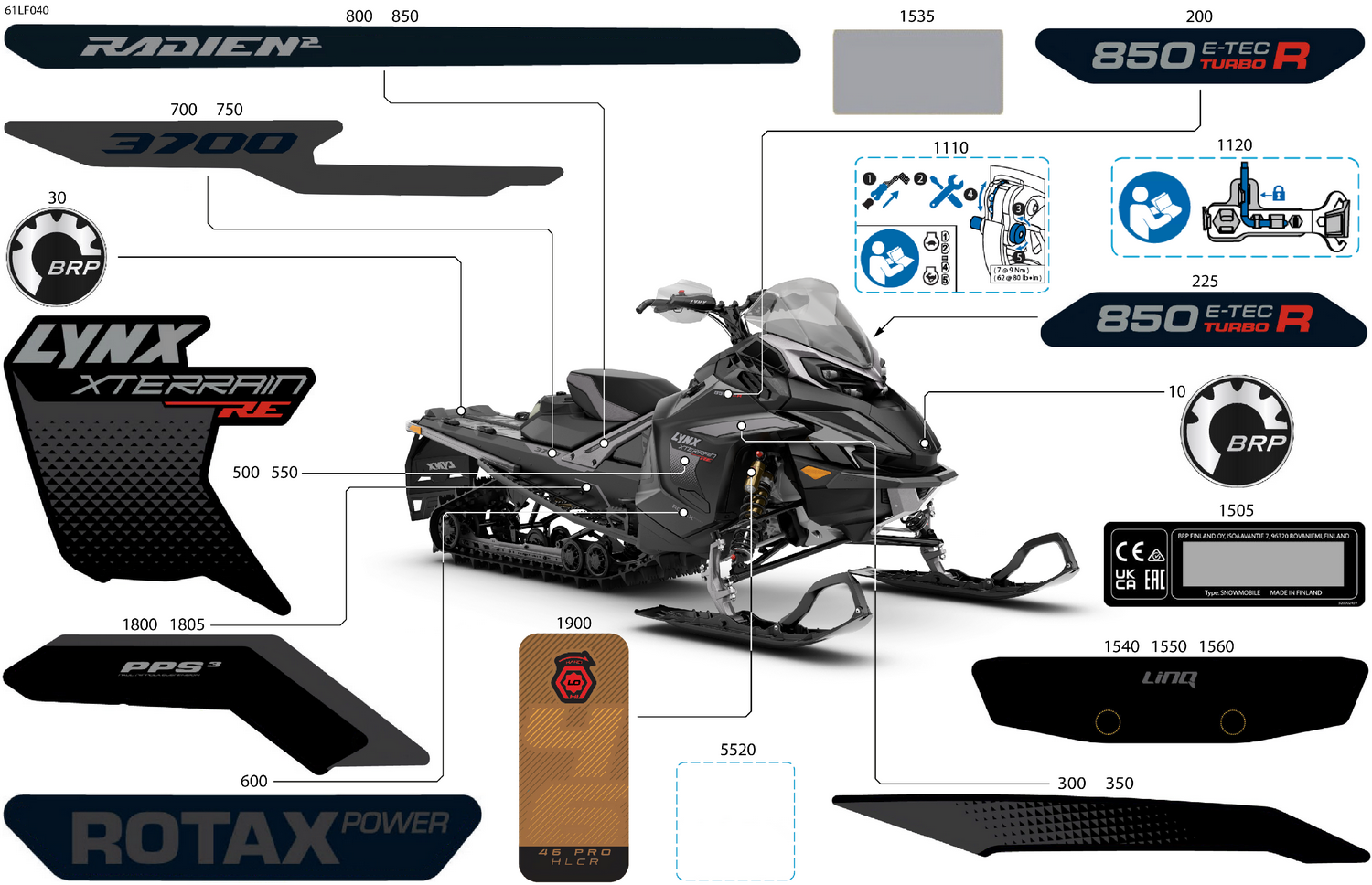

07- Body - Decals
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 704909040 | Emblem BRP Logo 48 MM UV |
| 30 | 704909040 | Emblem BRP Logo 48 MM UV |
| 200 | 516012470 | LH Engine Decal 850 E-TEC |
| 225 | 516012471 | RH Engine Decal 850 E-TEC |
| 300 | 516013124 | LH Top Panel Decal |
| 350 | 516013125 | RH Top Panel Decal |
| 500 | 516012541 | LH Middle Panel Decal |
| 550 | 516012542 | RH Middle Panel Decal |
| 600 | 516012258 | Decal Rotax Power |
| 700 | 516011806 | LH Middle Tunnel Decal |
| 750 | 516011807 | RH Middle Tunnel Decal |
| 800 | 516012389 | LH Cross Member Decal |
| 850 | 516012390 | RH Cross Member Decal |
| 1110 | 516011437 | Ramp Instruction Label |
| 1120 | 516011629 | Tool Instruction Label |
| 1505 | 520002459 | Conformity Decal CE UK CA EAC RCM |
| 1535 | 516009954 | Protective Decal |
| 1540 | 516011681 | Decal Q-Link |
| 1550 | 516011681 | Decal Q-Link |
| 1560 | 516011681 | Decal Q-Link |
| 1800 | 516012537 | LH Decal Pps3 |
| 1805 | 516012538 | RH Decal Pps3 |
| 1900 | 516012120 | Decal KYB PRO 46 HLCRK |
