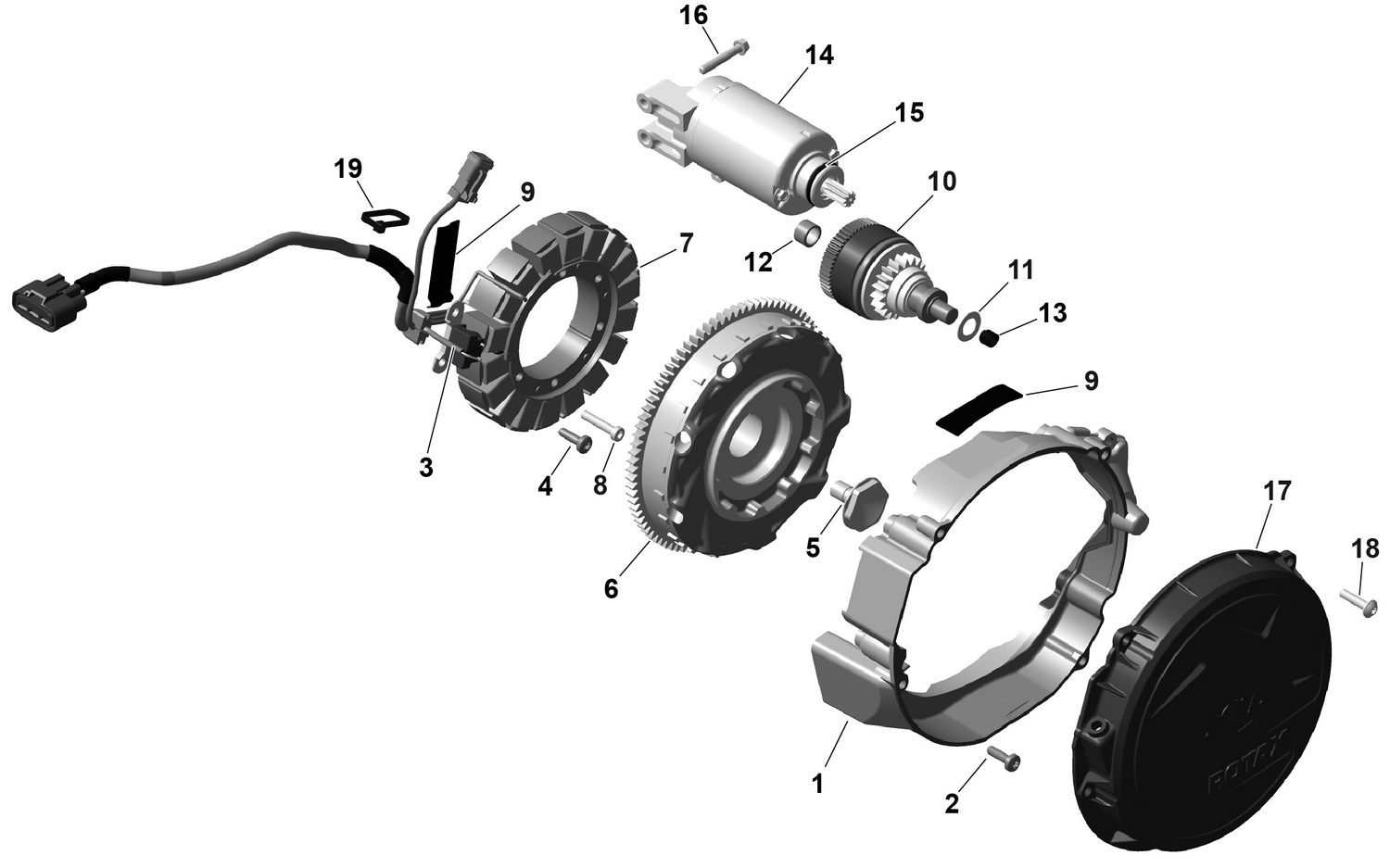

01- ROTAX - Magneto and Electric Starter
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420911854 | Ignition Housing |
| 2 | 420441386 | Torx Flange Screw M6 X 20 |
| 3 | 420966844 | Pickup Ass'y |
| 4 | 420441386 | Torx Flange Screw M6 X 20 |
| 5 | 420840851 | Collar Hex Screw M12 X 25 |
| 6 | 420866052 | Magneto Flywheel |
| 7 | 420864425 | Stator Plate Ass'y 12V/580W |
| 8 | 420540001 | Allen Screw M6 X 30 |
| 9 | 420201360 | Adhesive Pad, 1.6 mm X 20 mm X 60 mm |
| 10 | 420888044 | E-Starter Drive Ass'y |
| 11 | 420827261 | Thrust Washer |
| 12 | 420232482 | Needle Bushing |
| 13 | 420938204 | Spring |
| 15 | 420250141 | O-Ring |
| 16 | 420440274 | Torx Flange Screw M6 X 35 |
| 17 | 420912125 | Starter Housing |
| 18 | 420940431 | Plastite Screw |
