| Ref | Part Number | Description |
|---|
| 7 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306015. |
| 8 |
0328731 |
VIS, câble de verrouillage This part replaces 0329265. |
| 9 |
0310441 |
CLAMP, CPS lead |
| 10 |
0328695 |
CLAMP, Engine cable This part replaces 0323480. |
| 10 |
516010651 |
BRP Logo 20 MM x 2 MM |
| 11 |
0307267 |
SCREW |
| 12 |
5005440 |
THERMOSTAT This part replaces 0378065. |
| 13 |
0310058 |
GASKET, Thermostat |
| 14 |
0316132 |
GORMMET, Valve |
| 15 |
0335493 |
VALVE, Pressure relief This part replaces 0317653. |
| 15 |
704909040 |
Emblem BRP Logo 48 MM UV |
| 16 |
0315626 |
SPRING, Valve |
| 17 |
0315538 |
GASKET, Cover to head |
| 18 |
0322898 |
COVER, Cylinder head |
| 19 |
0323359 |
SCREW, Head cover |
| 20 |
0502180 |
SPARK PLUG, Champion QL77JC4 This part replaces 0387633. |
| 21 |
0376349 |
FIL, masse |
| 22 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 24 |
0308753 |
SCREW, Fram to c'case |
| 25 |
0314515 |
SCREW |
| 26 |
0325211 |
GASKET |
| 27 |
0437506 |
COVER & PLUG Assy, Water passage This part replaces 0325308. |
| 28 |
0302288 |
BOLT |
| 30 |
0317714 |
FRAME, Crank case |
| 30 |
704909040 |
Emblem BRP Logo 48 MM UV |
| 34 |
0320535 |
SPRING WASHER |
| 35 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 39 |
0316355 |
BUT, Carburetor mounting This part replaces 0315204. |
| 40 |
0314098 |
WASHER, Throttle lever |
| 41 |
0320971 |
LEVER, Spark advance |
| 42 |
0314003 |
BSHING, Spark lever |
| 43 |
0314094 |
LINK, Throttle lever to cam |
| 44 |
0389123 |
LEVER THROTTLE CONTROL |
| 45 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306015. |
| 48 |
0329702 |
THROTTLE CAM This part replaces 0319835. |
| 49 |
0333440 |
CLAMP, Battery cable This part replaces 0317755. |
| 51 |
0306337 |
SCREW, Adjustment |
| 58 |
0316101 |
SCREW, Advance |
| 59 |
0320536 |
STOP, Idle adjsutment |
| 60 |
0312316 |
CAPSCREW, Mounting brkt |
| 61 |
0395448 |
BALL & SOCKET ASSY This part replaces 0313700. |
| 62 |
0395448 |
BALL & SOCKET ASSY This part replaces 0313703. |
| 63 |
0335359 |
GASKET, Cylinder head This part replaces 0327795. |
| 64 |
0325603 |
CYLINDER HEAD |
| 65 |
0312708 |
BUSHING |
| 66 |
0329890 |
CLIP,Throttle shaft |
| 67 |
0314099 |
RONDELLE, vis, pignon de distribution |
| 70 |
0314416 |
BUMBER, Advance screw |
| 73 |
0329889 |
LINK Throttle lever to cam |
| 74 |
0327589 |
PIN, Shift lever to shift rod |
| 77 |
0315081 |
BAGUE, arbre de commande de sens de marche vers bloc-cylindres |
| 78 |
0386686 |
SWITCH TEMP |
| 80 |
0130524 |
SCREW, Frame to c case |
| 81 |
0395544 |
SHIFT LEVER This part replaces 0391284. |
| 84 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 85 |
0326644 |
LEVER, Shift rod |
| 87 |
0320302 |
BUSHING, Laink to lever |
| 90 |
0204757 |
BOW WASHER |
| 92 |
0326023 |
LIFT BRACKET |
| 93 |
0314002 |
BUSHING |
| 95 |
0327721 |
HOSE, Elbow to tee |
| 98 |
0306831 |
BATTERY CABLE ASSY. |
| 100 |

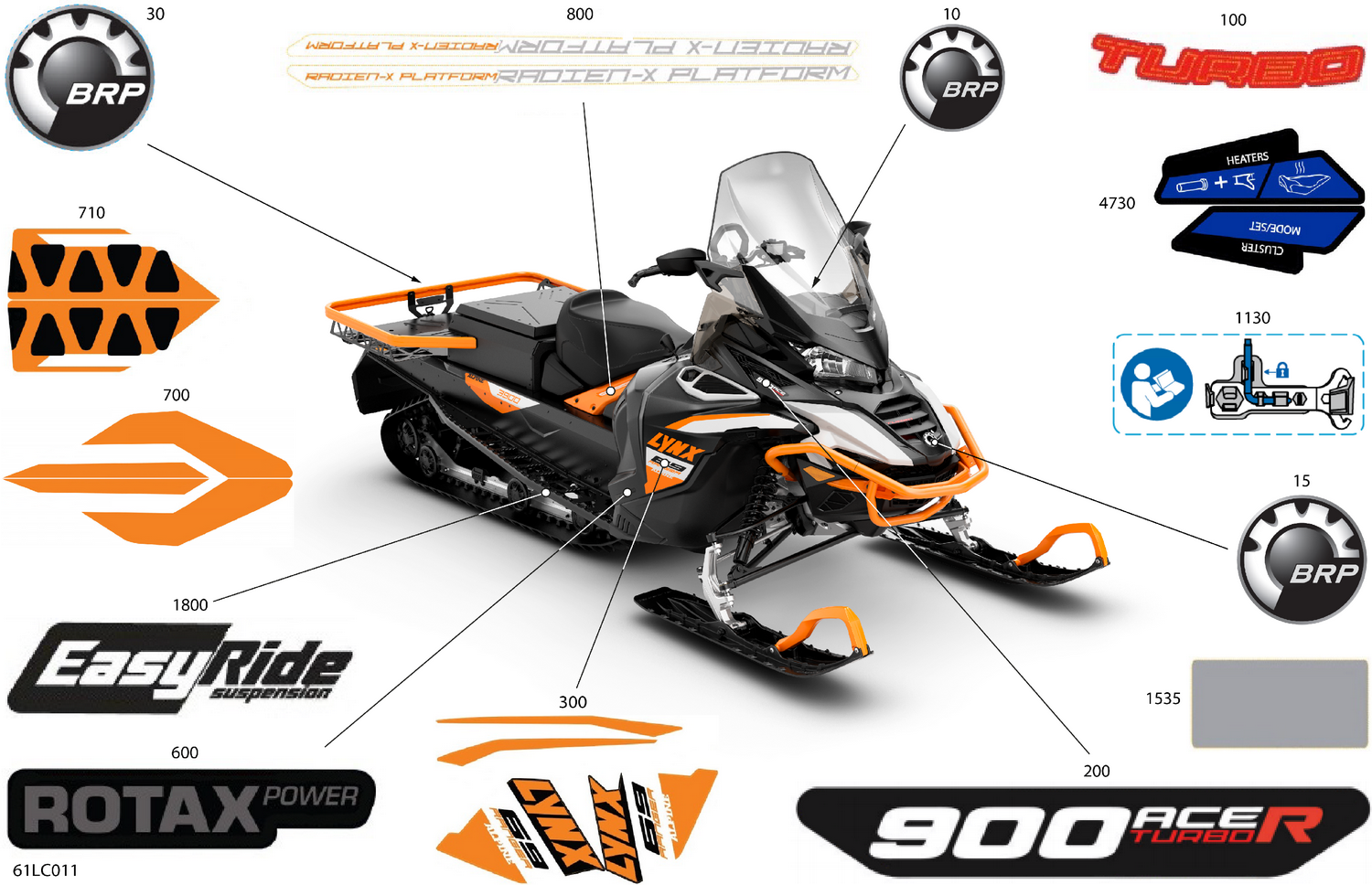

516009698 |
Hood Decal "Turbo" |
| 200 |
516011005 |
Upper Side Panel Decal |
| 300 |
516010402 |
LH/RH Sidepanel Decal "LYNX 69 Ranger" |
| 600 |
516008760 |
Decal "Rotax Power" |
| 700 |
516010657 |
LH/RH Frame Decal |
| 710 |
516010613 |
LH/RH Storage Box Decal |
| 800 |
516010411 |
LH/RH Rear Member Decal |
| 1130 |
516011629 |
Tool Instruction Label |
| 1535 |
516009954 |
Protective Decal |
| 1800 |
516008736 |
Black, WTS Decal |
| 0393284 |
0393284 |
CYLINDER & C'CASE ASSY. |
| 0395359 |
0395547 |
CYLINDER & C'CASE ASSY. This part replaces 0395359. |
