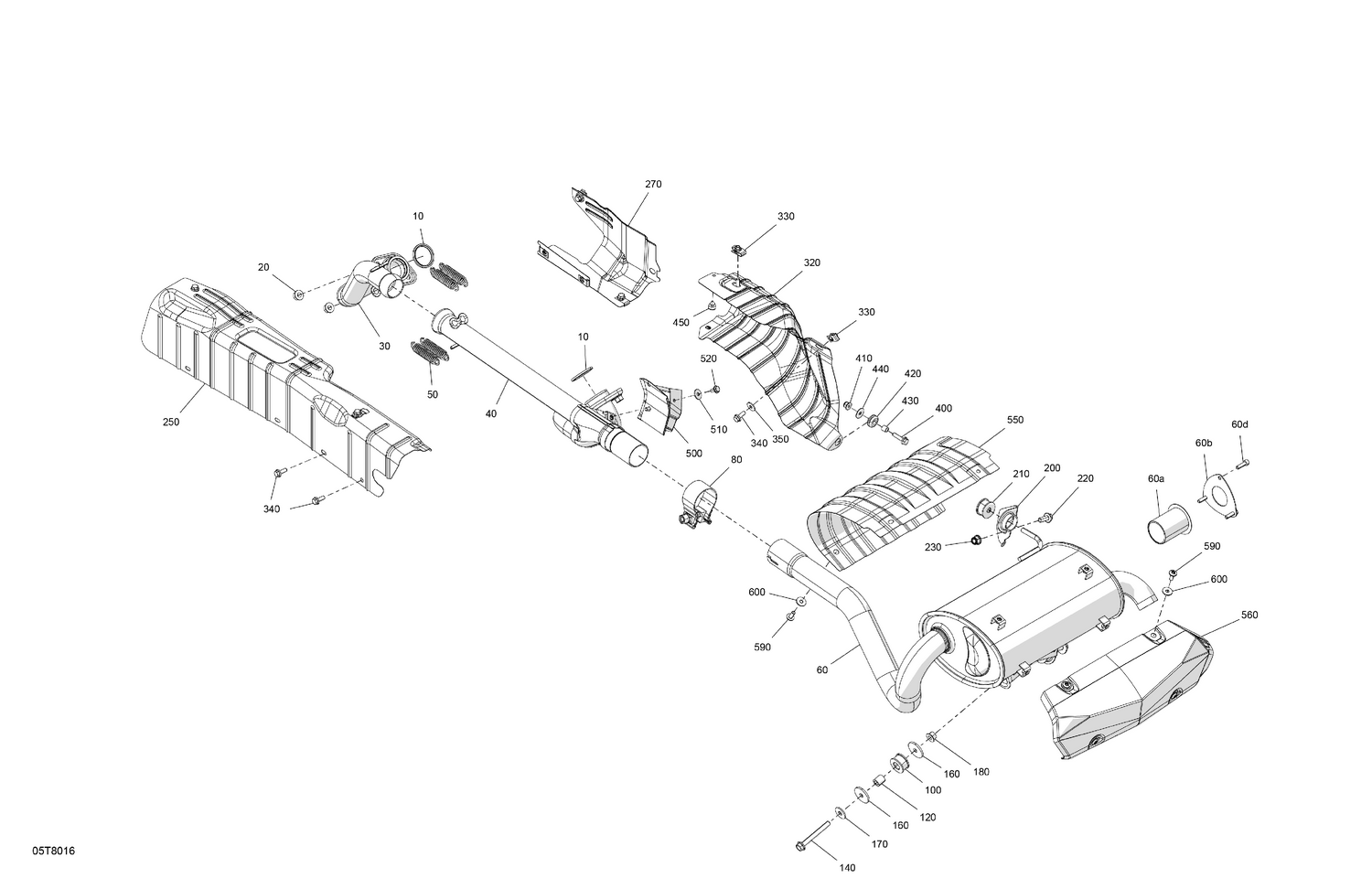

02- Engine - Exhaust
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 707600317 | Gasket |
| 20 | 233081416 | Hex. Flange Nut M8 |
| 30 | 707600764 | Front Head Pipe |
| 40 | 707601446 | Rear Head Pipe |
| 50 | 415107100 | Spring |
| 60a | 707601803 | Spark Arrester |
| 60b | 707601799 | Gasket |
| 60d | 205062060 | Socket Head Screw M6 X 20 |
| 80 | 293650228 | Exhaust Pipe Clamp |
| 100 | 707603323 | Vibration Damper This part replaces 707600701. |
| 120 | 293900116 | Spacer Bushing |
| 140 | 207687044 | Hex. Flange Screw M8 X 70 |
| 160 | 250200158 | Flat Washer M8 |
| 170 | 234082410 | Flat Washer 8 mm |
| 180 | 233081416 | Hex. Flange Nut M8 |
| 200 | 707600933 | Support |
| 210 | 707600702 | Anti-Vibration Rubber |
| 220 | 207682034 | Hex. Flange Screw |
| 230 | 233081416 | Hex. Flange Nut M8 |
| 250 | 707603724 | Heat Shield |
| 270 | 707601484 | Protector |
| 320 | 707601425 | Protector |
| 330 | 250100198 | Panel Nut M6 X 1.0 |
| 340 | 207661644 | Hex. Flange Screw M6 X 16 |
| 350 | 234062410 | Flat Washer 6 mm |
| 400 | 207662534 | Hex. Flange Screw M6 X 25 |
| 410 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 420 | 293720130 | Overmolded Grommet |
| 430 | 293900105 | Bushing |
| 440 | 224060201 | Flat Washer |
| 450 | 293830005 | Rubber Bumper |
| 500 | 707600932 | Pipe Protector |
| 510 | 250200082 | Flat Washer |
| 520 | 250000574 | Hex. Flange Screw M6 X 12 |
| 550 | 707600737 | Heat Deflector |
| 560 | 707600738 | Heat Deflector |
| 590 | 250000717 | Torx Head Screw M6 X 16 |
