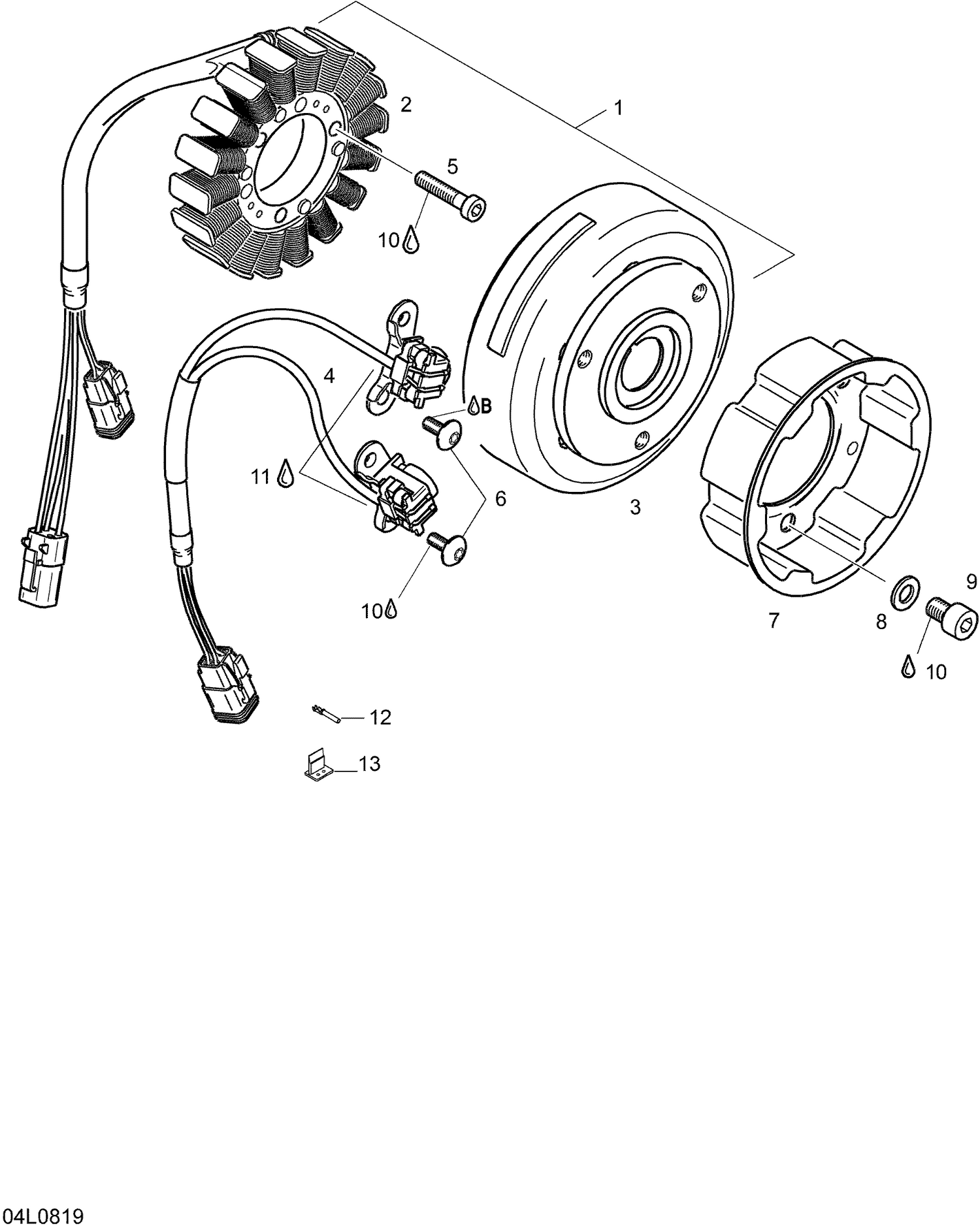

| Ref | Part Number | Description |
|---|
| 2 |
420889905 |
Stator ass'y This part replaces 410922993. |
| 3 |
420888324 |
Magneto flywheel |
| 4 |
410922948 |
Pickup Ass'y This part replaces 420966803. |
| 5 |
205063044 |
Allen screw M6x30 This part replaces 420840880. |
| 6 |
420640324 |
Torx Screw M6 X 16 This part replaces 420640321. |
| 7 |
420852590 |
Starting pulley |
| 8 |
420827405 |
Lock washer 8 mm |
| 9 |
420841520 |
Socket head screw M8 x 12 |
| 10 |
293800060 |
Liima Loctite 243, 10ml |
| 11 |
Not |
Available As Spare Part - Sikaflex 255, 310 ml |
| 12 |
278000632 |
Female connector |
