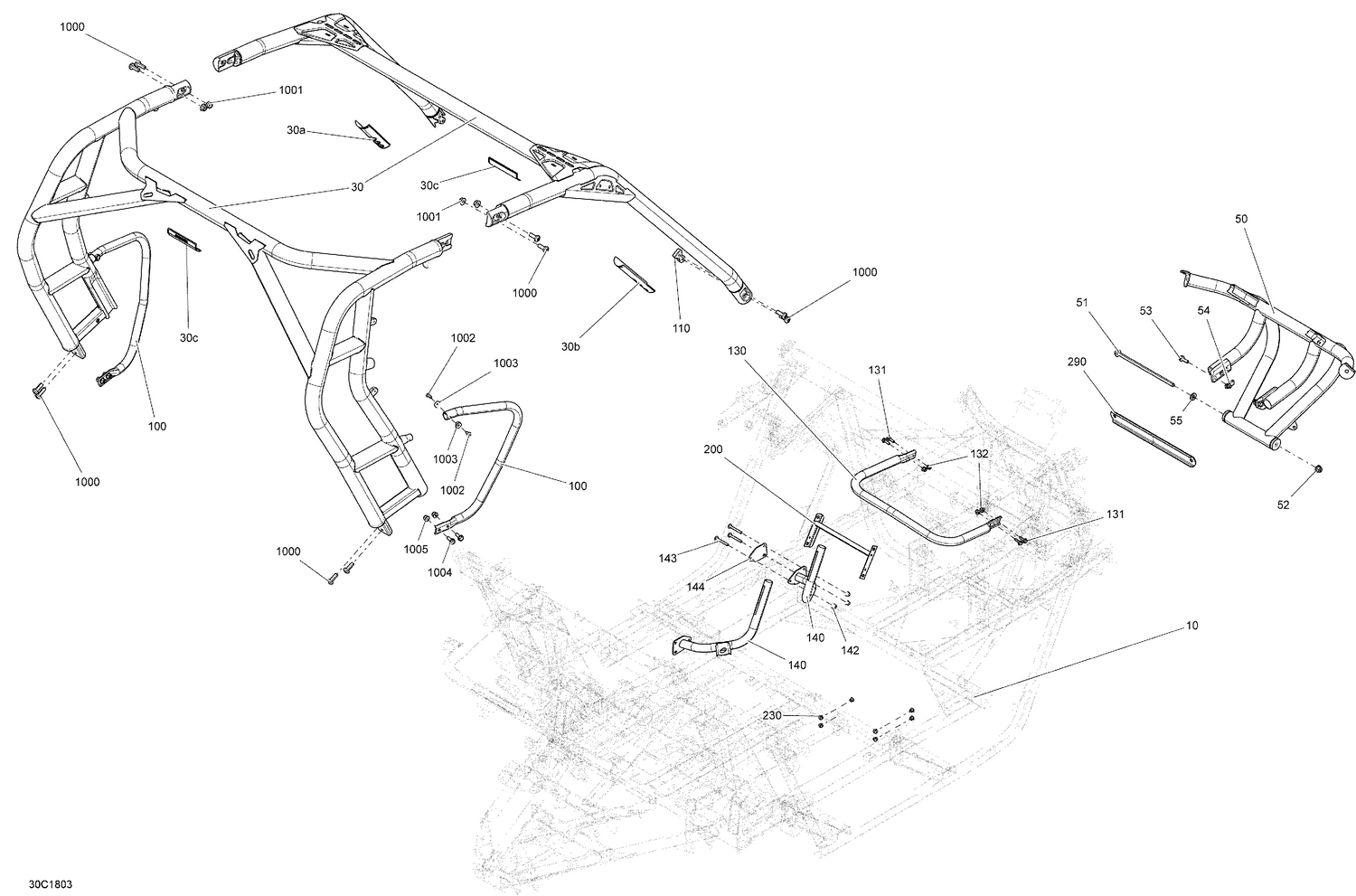

09- Frame Maverick Non MAX
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 715004817 | Frame Kit |
| 30a | 704903679 | Warning Label |
| 30b | 704903680 | Warning Label |
| 30c | 704903492 | Warning Label |
| 50 | 715001645 | FRONT BUMPER BLACK - Call your local BRP dealership This part replaces 705203685. |
| 51 | 250000597 | Hex. Flange Screw |
| 52 | 233201436 | Hex. Flange Elastic Nut M10 |
| 53 | 207382544 | SCREW-HEX.CAP DIN.933 S.GRIP - Call your local BRP dealership |
| 54 | 250100118 | Panel Nut M8 X 1.25 |
| 55 | 234201474 | Conical Spring Washer 10 mm |
| 110 | 705203415 | Binding Block |
| 130 | 705203332 | Black Handle |
| 131 | 207662046 | Hex. Flange Screw M6 X 20 |
| 132 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 140 | 705204399 | Black Console Handle |
| 142 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 143 | 250000317 | Torx Screw M6 X 50 |
| 144 | 705204606 | Steel Plate |
| 200 | 705203330 | Reinforcement Panel |
| 230 | 293150096 | Hemlock Rivet, 6.5 mm |
| 290 | 705203454 | FRONT SUSPENSION LINK - Call your local BRP dealership |
| 1000 | 250000848 | Screw Pan M10 X 30 |
| 1001 | 233101464 | Hex. Elastic Flange Nut , M10 X 1.5 |
| 1002 | 250000789 | Torx Truss M6X14 |
| 1003 | 705202223 | Offset Washer |
| 1004 | 207682044 | Hex. Flange Screw M8 X 20 |
