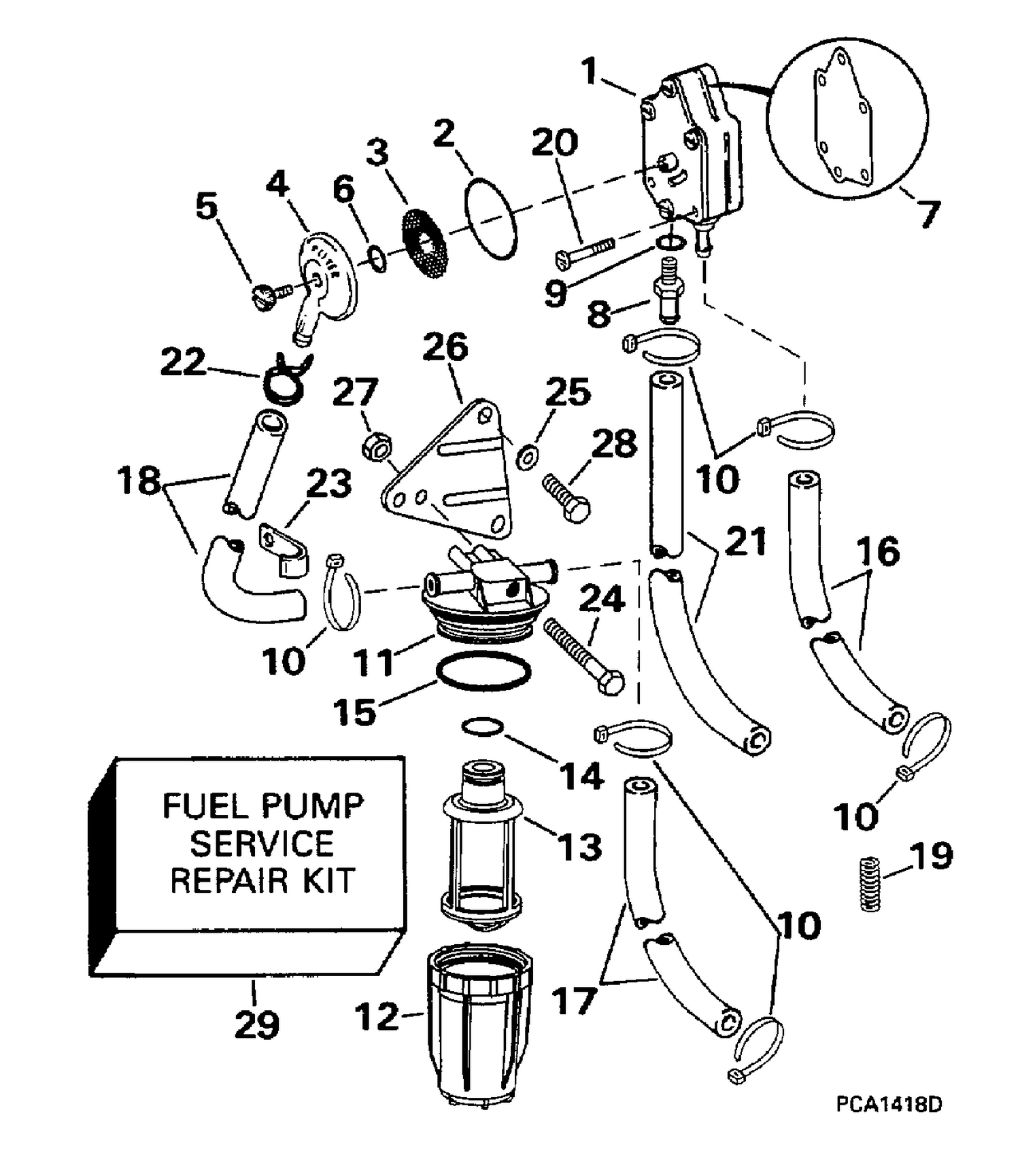

| Ref | Part Number | Description |
|---|
| 1 |
0438557 |
FUEL PUMP Assy |
| 10 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 16 |
HOSE, |
Pump to crankcase, 5 1/4 in. (133mm) |
| 17 |
0333395 |
HOSE, Connector to filter |
| 18 |
0333395 |
HOSE, Connector to filter |
| 19 |
0315942 |
SPRING |
| 20 |
0328717 |
NUT, Ground lead |
| 21 |
HOSE, |
Pump to manifold, 10 3/4 in. (273mm) |
| 22 |
0339279 |
COLLIER DE SERRAGE, conduite de carburant |
| 23 |
0330151 |
CLAMP, Harness to oil tank boss |
| 26 |
0344250 |
BRACKET, Filter to block |
| 28 |
0306503 |
SCREW, Short |
| 0438017 |
0438017 |
FUEL FILTER ASSY. |
