Home / BRP / EVINRUDE / 1999 / 225 / E225FPZEEO 1999 / 01- Engine 1

01- Engine 1

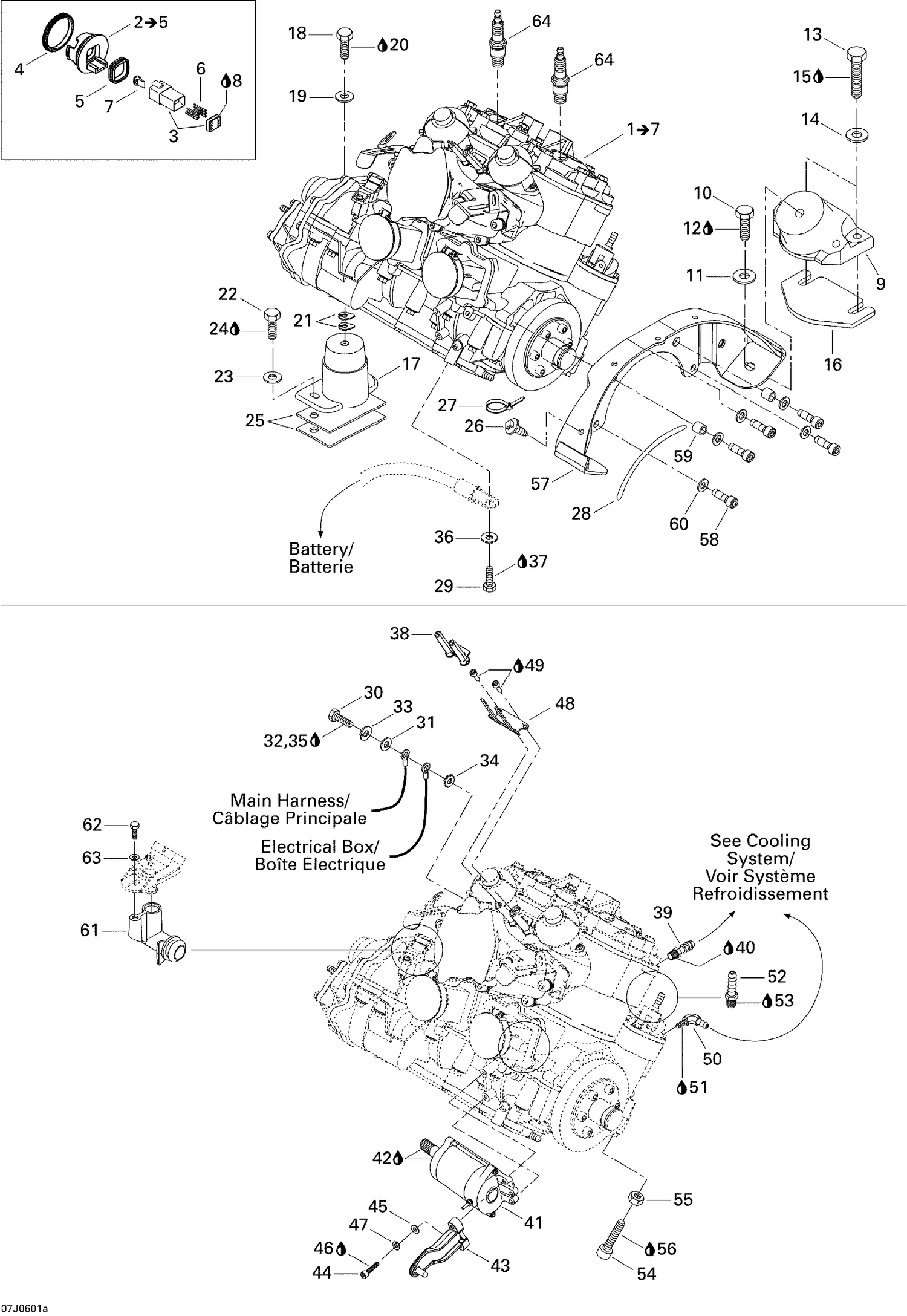

01- Engine 1

Parts (66)

RefPart NumberDescription
3 710001539 Male Terminal Housing, 6 Circuits This part replaces 270000137.
4 293300033 Gasket
5 293200055` Gasket
6 278000631 Male Terminal
7 278000735 Female Lock, 6 Circuits
8 219704453 Was 293550004 Dielectric Grease, 150 g
9 270000421 Rubber Mount, Black
10 207181660 Hex. Screw M8 X 16
11 234082600 Flat Washer 8 mm, Stainless
12 293800060 Loctite 243, 10 ml
13 207184060 Hex. Screw M8 X 40
13 207184560 HEX. SCREW M8 X 45 - Call your local BRP dealership
14 234081600 Stainless, Flat Washer 8 mm
15 293800060 Loctite 243, 10 ml
16 270000122 Shim 0.3 mm
16 270000123 SHIM 1.3 MM - Call your local BRP dealership
17 270000422 Rubber Mount, Black
18 207182060 HEX. SCREW M8 X 20 - Call your local BRP dealership
19 234082600 Flat Washer 8 mm, Stainless
20 293800060 Loctite 243, 10 ml
21 270000024 SHIM 0.4 MM - Call your local BRP dealership
22 207184060 Hex. Screw M8 X 40
23 234081600 Stainless, Flat Washer 8 mm
24 293800060 Loctite 243, 10 ml
25 0460868 NEEDS DESCRIPTION This part replaces 204250048.
25 204250049 SHIM 1.3 MM - Call your local BRP dealership This part replaces 204250049.
25 270000122 Shim 0.3 mm
25 270000123 SHIM 1.3 MM - Call your local BRP dealership
26 293730040 Mount Dart This part replaces 293730018.
27 414115200 Tie-Rap 180 mm
28 219704353 Was 271000110 Protection Trim
29 207302060 Hex. Screw M10 X 20, Scotch Grip
30 207162560 Hex. Screw M6 X 25
31 234062600 Flat Washer M6, Stainless
32 293800060 Loctite 243, 10 ml
33 234161601 Lock Washer Helical M6
34 234461608 External Serrated Lock Washer 6 mm
35 219704453 Was 293550004 Dielectric Grease, 150 g
36 234001600 Flat Washer 10 mm, Stainless
37 219704453 Was 293550004 Dielectric Grease, 150 g
38 278001512 INSULATOR - Call your local BRP dealership
39 293710066 MALE CONNECTOR - Call your local BRP dealership
40 219704454 Was 293800013 Loctite 56765
41 278001937 Starter Ass'y, Black
42 293550010 Synthetic Grease, 400 G
43 273000227 AIR SILENCER SUPPORT - Call your local BRP dealership
44 205063560 Socket Head Screw M6 X 35
45 234061600 Stainless Flat Washer M6
46 293800060 Loctite 243, 10 ml
47 234161601 Lock Washer Helical M6
48 278001662 GROUND PLATE - Call your local BRP dealership
49 293800060 Loctite 243, 10 ml
50 293700016 Elbow Fitting
51 219704454 Was 293800013 Loctite 56765
52 293710082 STRAIGHT FITTING - Call your local BRP dealership
53 219704454 Was 293800013 Loctite 56765
54 205003060 Socket Screw M10 X 30
55 232001600 HEX. NUT M10 - Call your local BRP dealership
56 293800005 Loctite 271, 10 ml
57 270000515 Engine Support, Black
58 205582560 Socket Head Screw M8 X 25, Scotch Grip
59 270000453 BUSHING - Call your local BRP dealership
60 234081600 Stainless, Flat Washer 8 mm
61 270600019 VALVE ADAPTOR - Call your local BRP dealership
62 243041660 HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership
63 211200035 Flat Washer
