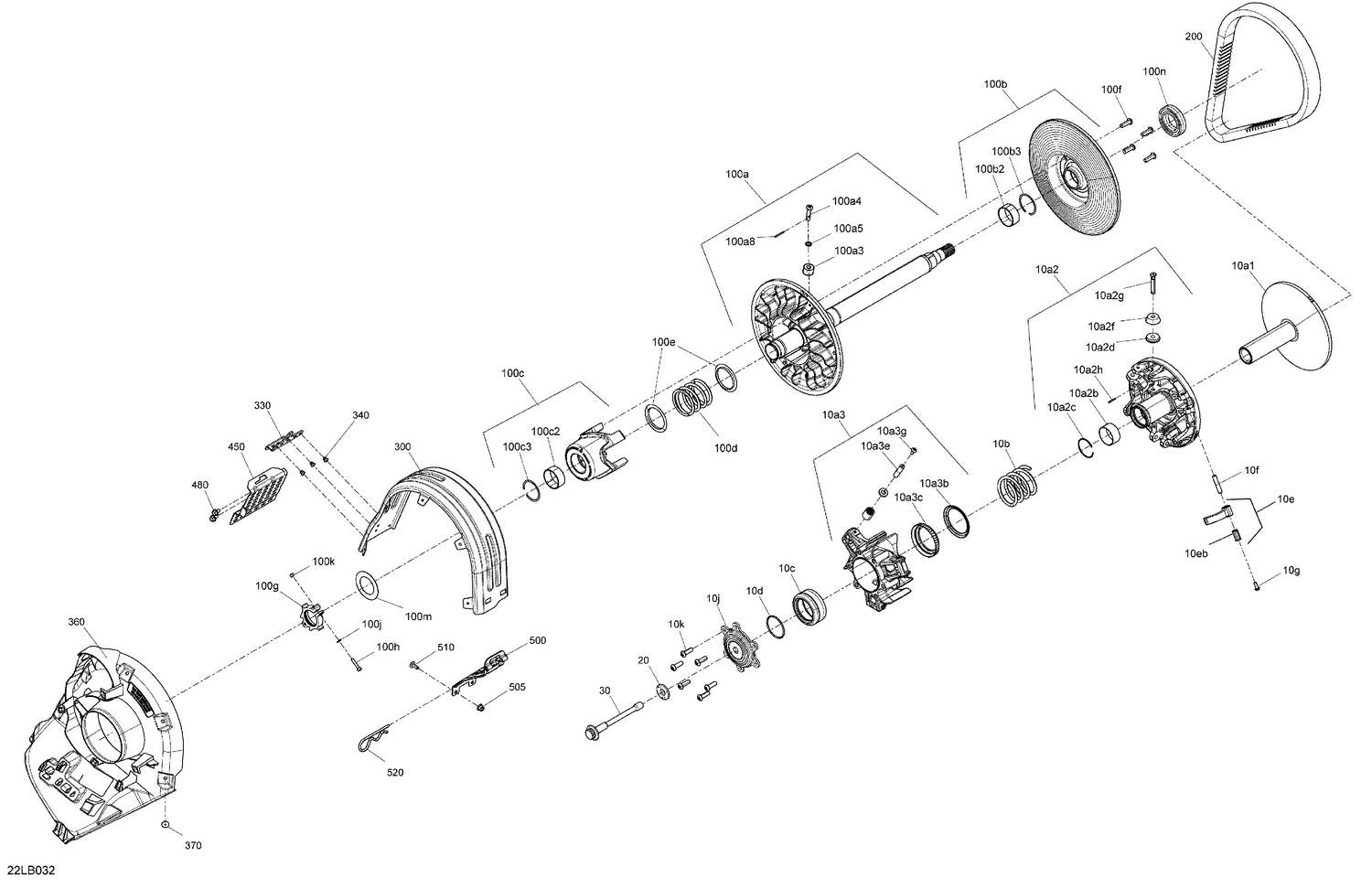

04- Drive - Pulley
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 10a1 | 417224210 | Fixed Flange Ass'y |
| 10a2b | 293250389 | Bushing |
| 10a2c | 293370137 | Circlip |
| 10a2d | 417224153 | Back Torque Roller |
| 10a2f | 417224916 | Pulley Roller Ext This part replaces 417224458. |
| 10a2g | 417224510 | Pin |
| 10a2h | 250400101 | Spring Pin 2.6MM X 20.5MM |
| 10a3b | 417224910 | Stopper Spring |
| 10a3c | 417224614 | Spring Guide |
| 10a3e | 417224204 | Axle - 10mm |
| 10a3g | 250000763 | Torx-Truss M/S M5 X 14 S.Grip |
| 10b | 417224165 | Clutch Spring |
| 10c | 417224003 | Seat Spring |
| 10d | 293370116 | Circlip |
| 10eb | 417224833 | Bushing |
| 10f | 417224694 | Pin Ramp |
| 10g | 250000763 | Torx-Truss M/S M5 X 14 S.Grip |
| 10j | 417224680 | Coupling Flange |
| 10k | 250000757 | Screw-Torx Button Head M8 X 25 S.Gr |
| 20 | 250200144 | Conical Spring Washer M14 |
| 30 | 417300522 | Pulley Drive Bolt M14 X 144 |
| 100a3 | 417127016 | Roller |
| 100a4 | 417127294 | Torx Screw M8 x 25, Scotch Grip |
| 100a5 | 250200009 | Ribbed Lock Washer 8 mm |
| 100a8 | 250400070 | Spring Pin |
| 100b2 | 417127318 | Bushing ID 41mm OD 45mm X 19mm L |
| 100b3 | 293370049 | Spacer (1.91/2.21mm) |
| 100c2 | 417127318 | Bushing ID 41mm OD 45mm X 19mm L |
| 100c3 | 293370049 | Spacer (1.91/2.21mm) |
| 100d | 417127137 | Spring (Green, 800-1350N / 179-303lbs) |
| 100e | 417127116 | Swivel Abutment |
| 100f | 250000757 | Screw-Torx Button Head M8 X 25 S.Gr |
| 100g | 415129604 | Pulley Adjuster Ass'y |
| 100h | 250000981 | Socket Screw M5 X 25 |
| 100j | 234051410 | Flat Washer M5 |
| 100k | 232551414 | Elastic Stop Nut M5 |
| 100m | 417127155 | Washer |
| 100n | 504152574 | Ball Bearing |
| 200 | 417300571 | Drive Belt |
| 300 | 417300620 | Belt Guard This part replaces 417300479. |
| 330 | 417300525 | Front Retaining Hook |
| 340 | 390909200 | Avex Rivet |
| 360 | 417300557 | CVT Cooling Duct |
| 370 | 293150103 | Pop Rivet 3/16 |
| 450 | 417300583 | Front Guard Support |
| 480 | 207561044 | Flange Screw M6 X 10, Scotch Grip |
| 500 | 417300633 | Rear Guard Support This part replaces 417300596. |
| 505 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 510 | 250000755 | Torx Screw M6 X 16 |
