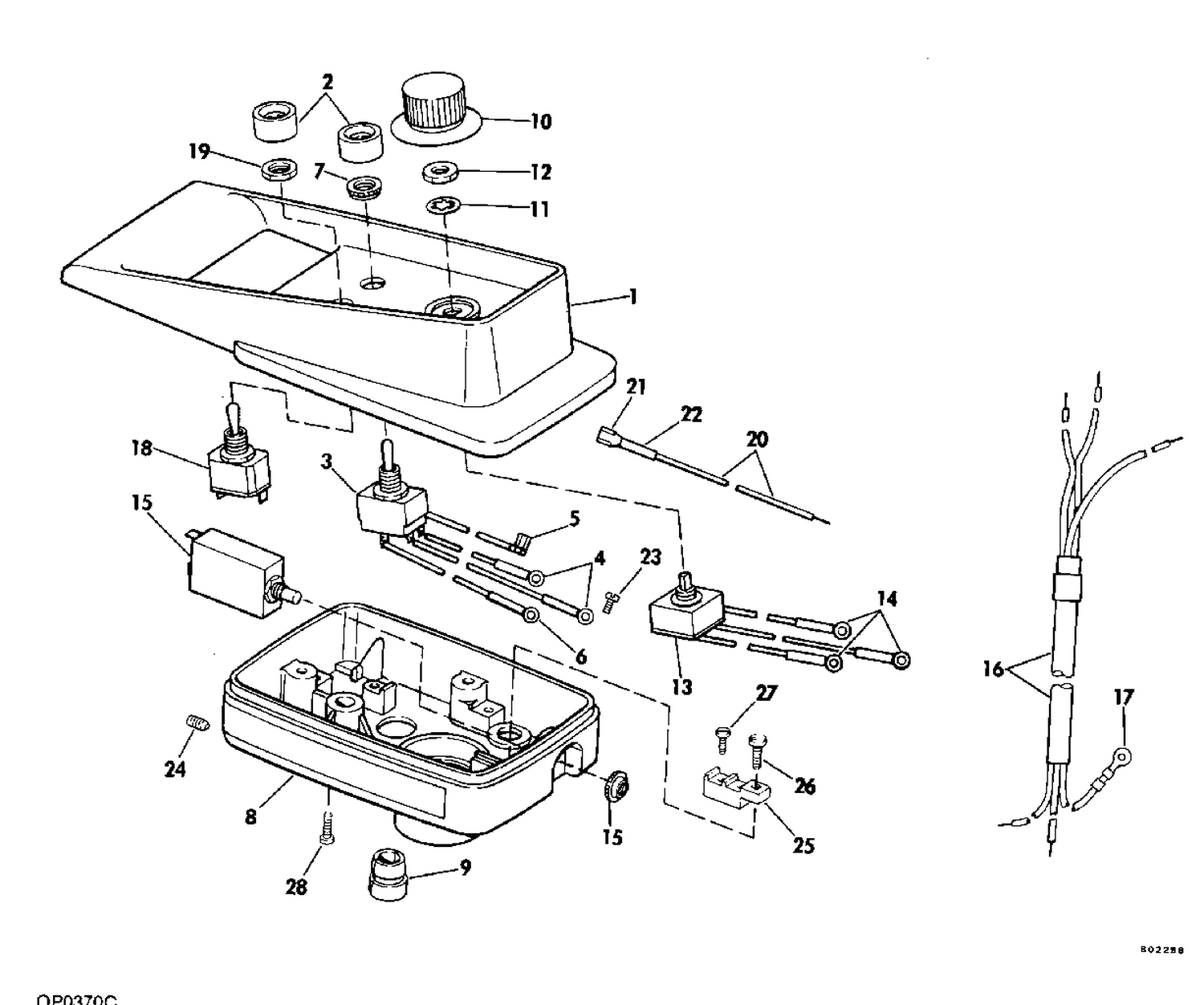

| Ref | Part Number | Description |
|---|
| 1 |
0325613 |
COVER ASSEMBLY |
| 3 |
0582117 |
REVERSE SWITCH & LEAD ASSY. |
| 8 |
0325609 |
STEERING HOUSING |
| 9 |
0320414 |
BUSHING, Strain relief |
| 10 |
0325611 |
KNOB, Rotary switch assy. |
| 11 |
0320688 |
L WASHER, Potentiometer, 12v |
| 13 |
0390480 |
ROTARY SWITCH ASSY |
| 15 |
0390629 |
CIRCUIT BREAKER |
| 16 |
0390631 |
CABLE ASSY., Battery |
| 18 |
0392219 |
SPEED SELECTOR SWITCH This part replaces 0390630. |
| 20 |
0582116 |
LEAD ASSEMBLY |
| 23 |
0319614 |
SCREW, Bar clamp This part replaces 0319616. |
| 24 |
0321223 |
SET SCREW |
| 25 |
0319650 |
TERMINAL BOARD |
| 26 |
0319605 |
GROMMET, Cable lwr mot cov. |
