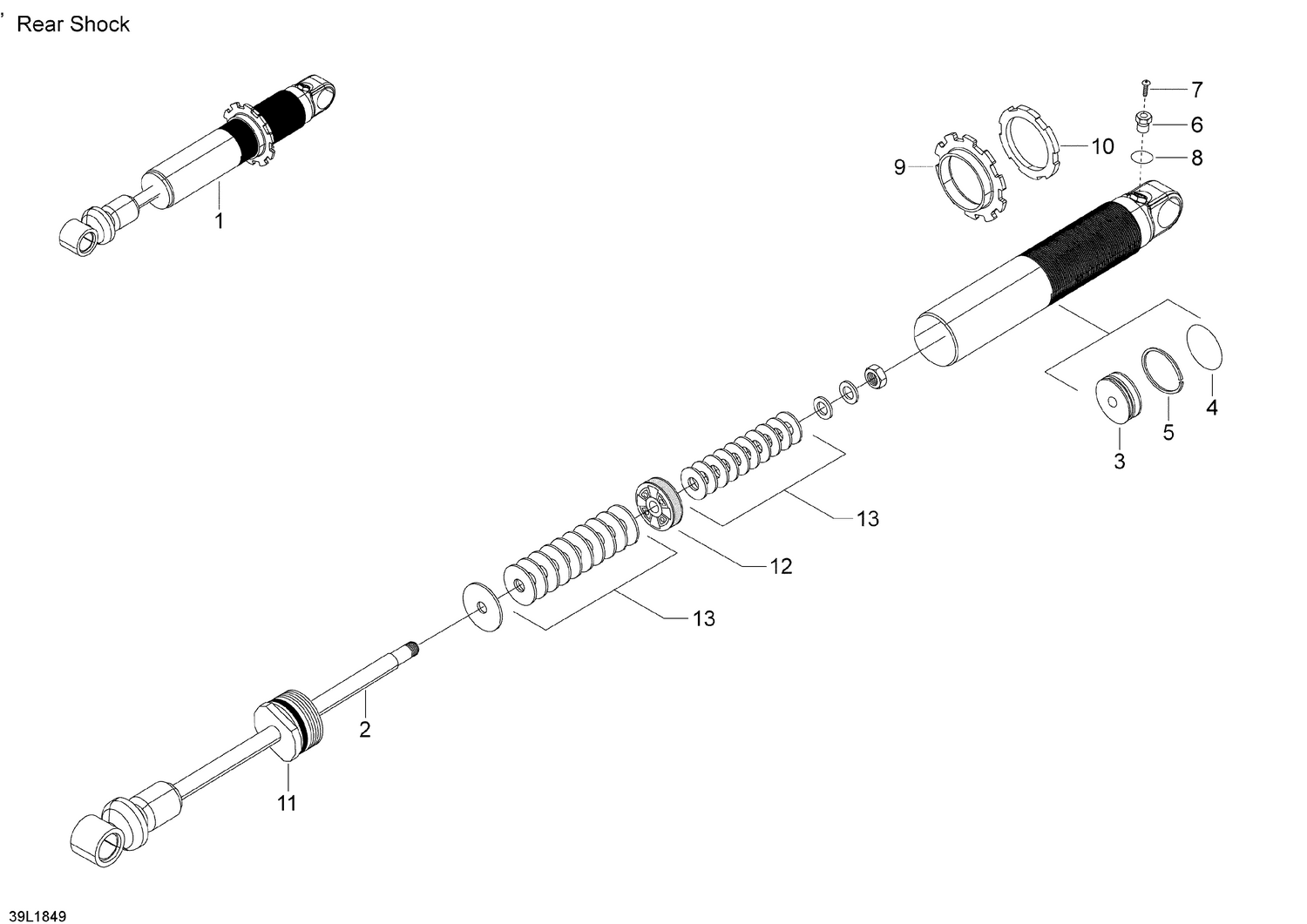

08- Take Apart Shock, Rear Commander - Package 800

08- Take Apart Shock, Rear Commander - Package 800

Parts (72)

RefPart NumberDescription
2 Not Available As Spare Part - Rod Ass´y
3 503189008 FLOTTING PISTON - Call your local BRP dealership
4 503189007 O-RING - Call your local BRP dealership
5 503189006 PISTON RING - Call your local BRP dealership
6 505070398 Air Valve
7 505070399 Screw
8 505070400 O-Ring
9 706000062 SHOCK SPRING STOPPER - Call your local BRP dealership
10 706000082 STOPPER RING - Call your local BRP dealership
11 230060 Seal Carrier Ass'y
12 230039 Piston 2,0 Mm
12 230043 Piston 0 Bleed
12 619300159 Piston 1.2
12 619300160 Piston-rod
12 Not Available As Spare Part - Piston 46 mm, 2.2 mm
13 230029 Leaf Valve 20 X 0,114
13 230030 Leaf Valve 20 X 0,152
13 230031 Leaf Valve 20 X 0,203
13 230032 Leaf Valve 20 X 0,254
13 230033 Leaf Valve 34 X 0,114
13 230034 Leaf Valve 34 X 0,152
13 230035 Leaf Valve 34 X 0,203
13 230036 Leaf Valve 34 X 0,254
13 230037 Leaf Valve 36 X 0,114
13 230040 Leaf Valve 38 X 0,152
13 230041 Leaf Valve 38 X 0,203
13 230042 Leaf Valve 38 X 0,254
13 230082 Leaf Valve D32 X 0.114.
13 619300022 Leaf Valve 32 X 0,305
13 619300056 Leaf Valve 30 X 0,305
13 619300059 Leaf Valve 32x0,254
13 619300060 Leaf Valve 17x0,114
13 619300067 Leaf Valve 18x0,152
13 619300068 Shim 36 mm, 18 x 0,114
13 619300069 Leaf Valve 17x0,203
13 619300070 Leaf Valve 34 X 0,305
13 619300095 Shim 36 mm, 24 x 0,254
13 619300097 Leaf Valve 20 X 0,305
13 619300098 Shim 36 mm, 22 x 0,203
13 619300099 Shim 36 mm, 26 x 0,254
13 619300100 Leaf Valve 26 X 0,305
13 619300101 Leaf Valve 28 X 0,114
13 619300102 Shim 36 mm, 28 x 0,203
13 619300103 Leaf Valve 28 X 0,254
13 619300104 Leaf Valve 30 X 0,152
13 619300105 Leaf Valve 36 X 0,305
13 619300106 Leaf Valve 38 X 0,305
13 619300112 Leaf Valve D40 X 0.203
13 619300113 Shim 36 mm, 30 x 0,254
13 619300134 Washer-piston 22 X
13 619300137 Leaf Valve 32 X 0.152
13 619300138 Leaf Valve 32 X 0.203
13 619300140 Washer-piston 22 X 0.152t
13 619300141 Washer-piston 26 X 0.152t
13 619300142 Washer-piston 36 X 0.203t
13 619300143 Washer-piston 22 X 0.114
13 619300144 Washer-piston 22 X
13 619300145 Washer-piston 24 X
13 619300146 Washer-piston 24 X
13 619300147 Washer-piston 24 X
13 619300148 Washer-piston 24 X
13 619300149 Washer-piston 26 X
13 619300150 Washer-piston 26 X
13 619300151 Washer-piston 28 X
13 619300152 Washer-piston
13 619300153 Washer-Piston 30 X
13 619300154 Washer-piston 30 X
13 619300155 Washer-piston 36 X
13 619300156 Washer-Piston 36 X
13 619300157 Washer-piston 40 X
13 619300158 Washer-Piston 40 X
13 Not Available As Spare Part - Shim 40/46 mm, 17 x 0,152
