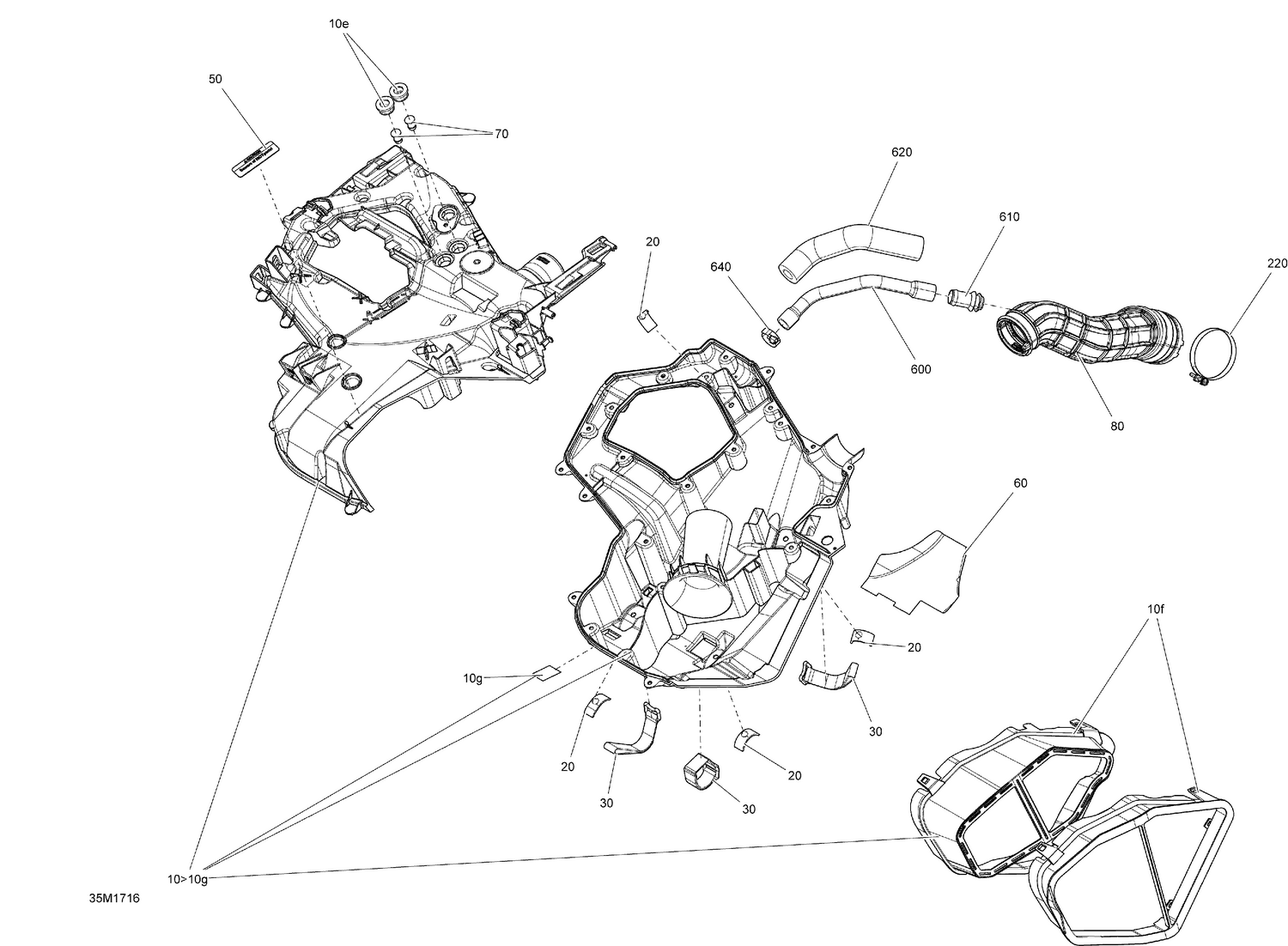

02- Air Intake System - All Models
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 10e | 508000574 | Grommet |
| 10f | 508000595 | Air Intake Filter |
| 10g | 509000688 | Reflective Sheet |
| 20 | 508000537 | Stopper |
| 30 | 508000820 | Velcro Strip |
| 50 | 516005280 | Caution Decal Hot Parts |
| 60 | 508000622 | Reflective Sheet |
| 70 | 572092900 | Cap |
| 80 | 508000838 | Air Intake Hose |
| 220 | 293650229 | Gemi Clamp |
| 600 | 508000774 | Formed Vent Hose |
| 610 | 273000234 | Breather Valve |
| 620 | 508000648 | Tube Isolator |
