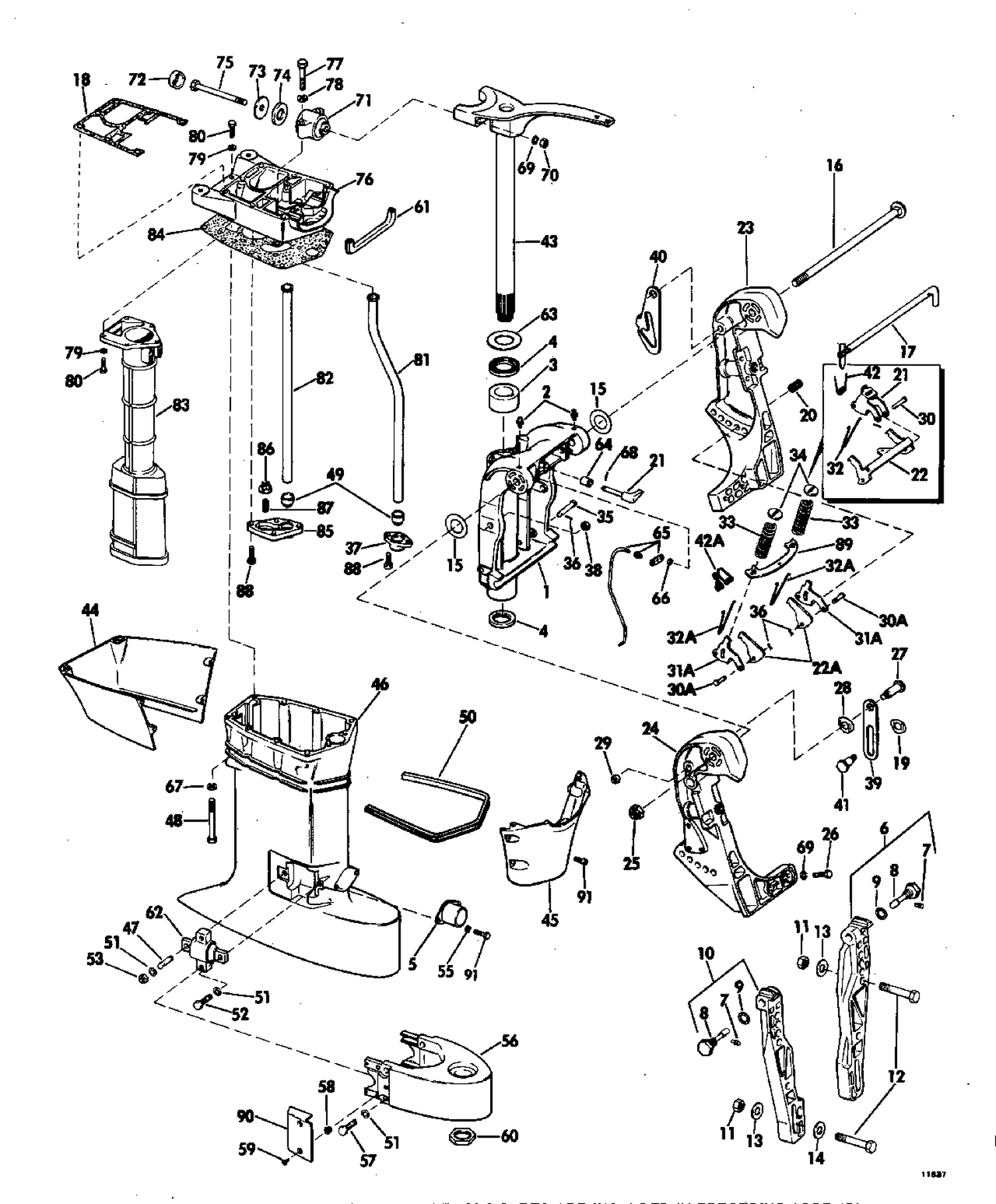

| Ref | Part Number | Description |
|---|
| 1 |
0383146 |
SWIVEL BRACKET |
| 1 |
0383147 |
SWIVEL BRACKET, Long |
| 3 |
0313880 |
BUSHING, Lower |
| 4 |
0317776 |
SEAL This part replaces 0313691. |
| 5 |
0382388 |
THRUST MOUNT ASSEMBLY |
| 6 |
0387482 |
CLAMP ASSEMBLY, Port This part replaces 0381832. |
| 10 |
0387483 |
CLAMP ASSY, Starboard (incl items 7,8, and 9 This part replaces 0381833. |
| 11 |
0363254 |
NUT, Stern bracket screw This part replaces 0307407. |
| 12 |
0363012 |
SCREW, Bracket mounting This part replaces 0313327. |
| 13 |
0307238 |
RONDELLE |
| 14 |
0320248 |
RONDELLE, écrou This part replaces 0312910. |
| 15 |
0313820 |
THRUSH WASHER, Stern brkt. |
| 16 |
0307226 |
BOLT, Tilting |
| 17 |
0383568 |
THRUST ROD & RETAINER |
| 18 |
0313763 |
GASKET, Adapter |
| 19 |
0315085 |
O-RING, Driveshaft to crankcase |
| 20 |
0307068 |
SPRING & Thrust rod |
| 21 |
0382652 |
SHAFT & LEVER ASSEMBLY |
| 22 |
0313818 |
LOCKING LEVER |
| 22A |
0316608 |
LOCK LEVER |
| 23 |
0313824 |
STERN BRACKET, Port |
| 24 |
0313825 |
STERN BRACKET, Starboard |
| 25 |
0313650 |
NUT |
| 26 |
0552940 |
SCREW, Stern bracket This part replaces 0313699. |
| 27 |
0313848 |
SCREW, Stop link |
| 28 |
0314031 |
SPRING WASHER, Stop link |
| 29 |
0314898 |
L'NUT, Stud, alt frt |
| 30 |
0313822 |
PIN, Link |
| 30A |
0315962 |
GOUPILLE, tringlerie vers levier |
| 31 |
0313819 |
LINK, Reverse lock |
| 31A |
0316610 |
LINK, Reverse lock |
| 32 |
0313816 |
SPRING, Retainer |
| 32A |
0315965 |
DISPOSITIF DE RETENUE, ressort |
| 33 |
0313817 |
RESSORT, verrouillage de marche arrière |
| 34 |
0314007 |
CUP, Reverse lock spring |
| 35 |
0313821 |
ROD, Link to swivel |
| 36 |
0302858 |
GOUPILLE, fendue - Tringlerie de verrouillage de marche arrière |
| 37 |
0305181 |
COUPLING, Flange |
| 39 |
0315960 |
STOP LINK, Starboard |
| 40 |
0313878 |
STOP LINK, Port |
| 41 |
0313849 |
SCREW, Stop lin to stern brkt. |
| 42 |
0313823 |
SPRING, Link |
| 42A |
0316611 |
SPRING, Link |
| 43 |
0382386 |
ARM & SHAFT ASSY., Long |
| 43 |
0382389 |
ARM & SHAFT ASSY., Std |
| 44 |
0340777 |
COVER, Housing, rear This part replaces 0206006. |
| 45 |
0206008 |
COVER, Exh housing, front |
| 46 |
0384364 |
EXHAUST HOUSING, Outer, long |
| 46 |
0384372 |
EXHAUST HAG.,Outer |
| 47 |
0301185 |
STUD |
| 48 |
0133022 |
SCREW |
| 49 |
0305145 |
GROMMET |
| 50 |
0314024 |
SEAL HOUSING, Outer |
| 52 |
0552940 |
SCREW, Stern bracket This part replaces 0313699. |
| 54 |
0329894 |
SCREW This part replaces 0302510. |
| 56 |
0389600 |
APPLIQUE |
| 57 |
0306503 |
SCREW, Short This part replaces 0316533. |
| 58 |
0313785 |
GROMMET |
| 59 |
0314245 |
SCREW |
| 60 |
0313429 |
NUT, Bracket to shaft |
| 61 |
0314059 |
SEAL, Adapter to cover |
| 62 |
0382387 |
RUBBER MOUNT |
| 63 |
0313427 |
THRUST WASHER ,Pivot shaft |
| 64 |
0314246 |
BLUSHING |
| 65 |
0384284 |
BELLCRANK ROD & BUSHING ASSEMBLY |
| 67 |
0120255 |
LOCKWASHER |
| 70 |
0314898 |
L'NUT, Stud, alt frt |
| 71 |
0382472 |
RUBBER MOUNT ASSEMBLY |
| 72 |
0313581 |
BUMBER, Mount screw |
| 73 |
0321232 |
RETAINER WASHER This part replaces 0313546. |
| 74 |
0313580 |
WASHER |
| 75 |
0316324 |
SCREW, Robber mount |
| 76 |
0313403 |
ADAPTER, Exhaust housing |
| 77 |
0306423 |
BOLT |
| 80 |
0329894 |
SCREW This part replaces 0302510. |
| 81 |
0314076 |
WATER TUBE, Inlet |
| 81 |
0314077 |
WATER TUBE, Inlet, long |
| 82 |
0314078 |
WATER TUBE, Return |
| 82 |
0314079 |
WATER TUBE, Return, long |
| 83 |
0313401 |
EXHAUST HOUSING, Inner |
| 83 |
0313402 |
EXHAUST HOUSING, Inner |
| 84 |
0313764 |
GASKET, Exhaust to adapter |
| 85 |
0313582 |
COVER, Check value |
| 86 |
3613583 |
CHECK VALVE, Cover |
| 87 |
0313584 |
SPRING |
| 88 |
0306446 |
SCREW, Coupling to adapter |
| 89 |
0316609 |
PALTE,Reverse lock |
| 90 |
0313784 |
COVER, Mount bracker |
| 0312911 |
0322751 |
TEMPLATE, Clamp screw This part replaces 0312911. |
| 0381836 |
0381836 |
TRANSOM MOUNT KIT |
