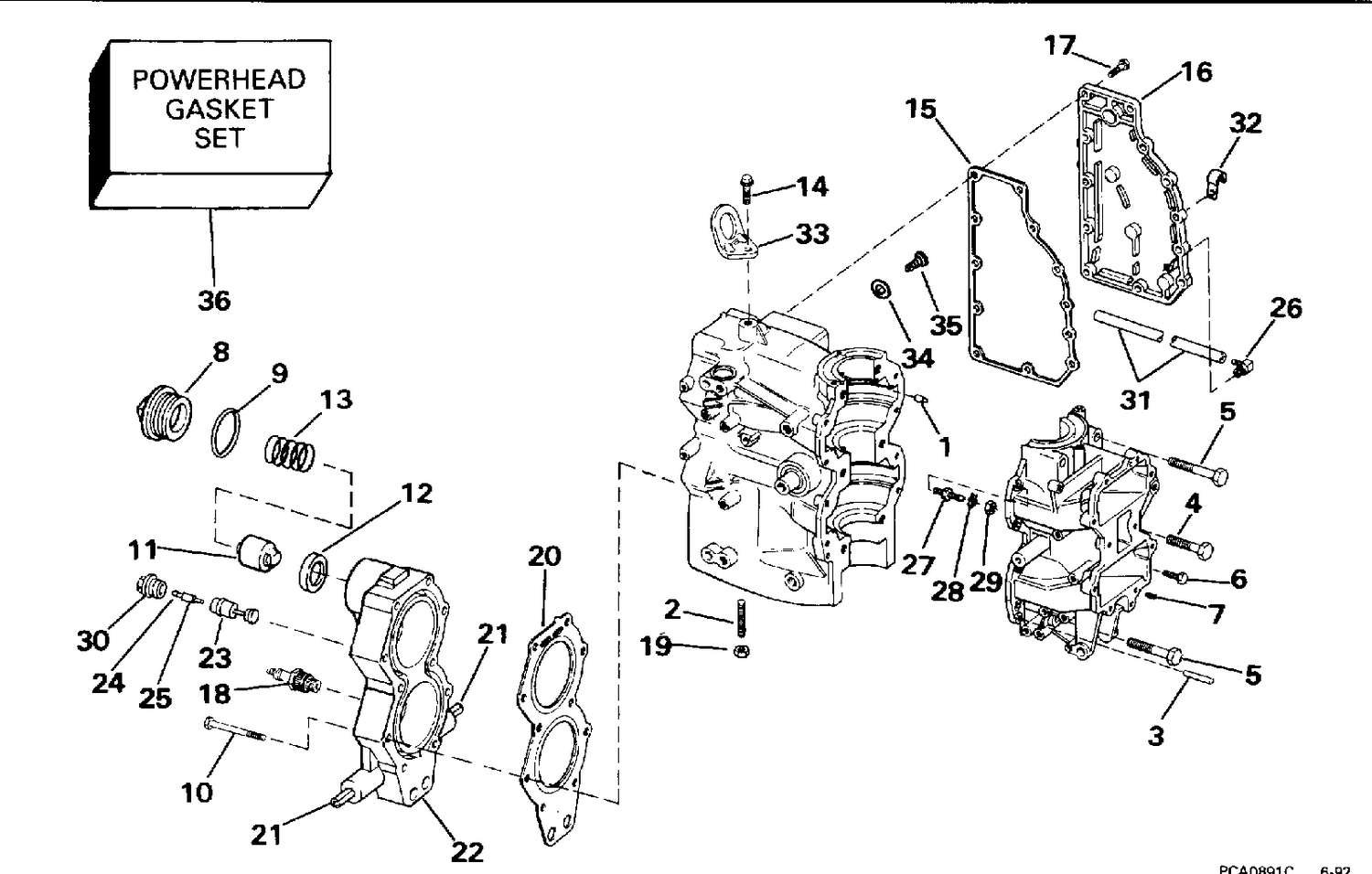

CYLINDER & CRANKCASE
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 8 | 0332944 | COVER, Thermostat |
| 9 | 0331188 | O-Ring |
| 10 | 0322323 | SCREW |
| 11 | 0433379 | THERMOSTAT |
| 12 | 0334742 | GASKET, Thermostat |
| 13 | 0331186 | SPRING |
| 14 | 0314515 | SCREW |
| 15 | 0325211 | GASKET |
| 16 | 0437506 | COVER & PLUG Assy, Water passage This part replaces 0433561. |
| 17 | 0302288 | BOLT |
| 18 | 0432981 | SP PLG QL78C |
| 19 | 0316355 | BUT, Carburetor mounting This part replaces 0315204. |
| 20 | 0335359 | GASKET, Cylinder head |
| 22 | 0432618 | CYL HEAD AY |
| 22 | 0432619 | CYL HEAD AY |
| 23 | 0584592 | SWITCH, Temperature |
| 31 | HOSE, | Overboard indicator, 28 in. |
| 32 | 0330151 | CLAMP, Harness to oil tank boss |
| 33 | 0326023 | LIFT BRACKET |
| 0435535 | 0435535 | CYLINDER & C'CASE ASSY. |
| 0435563 | 0435563 | CYLINDER & C'CASE ASSY. |
