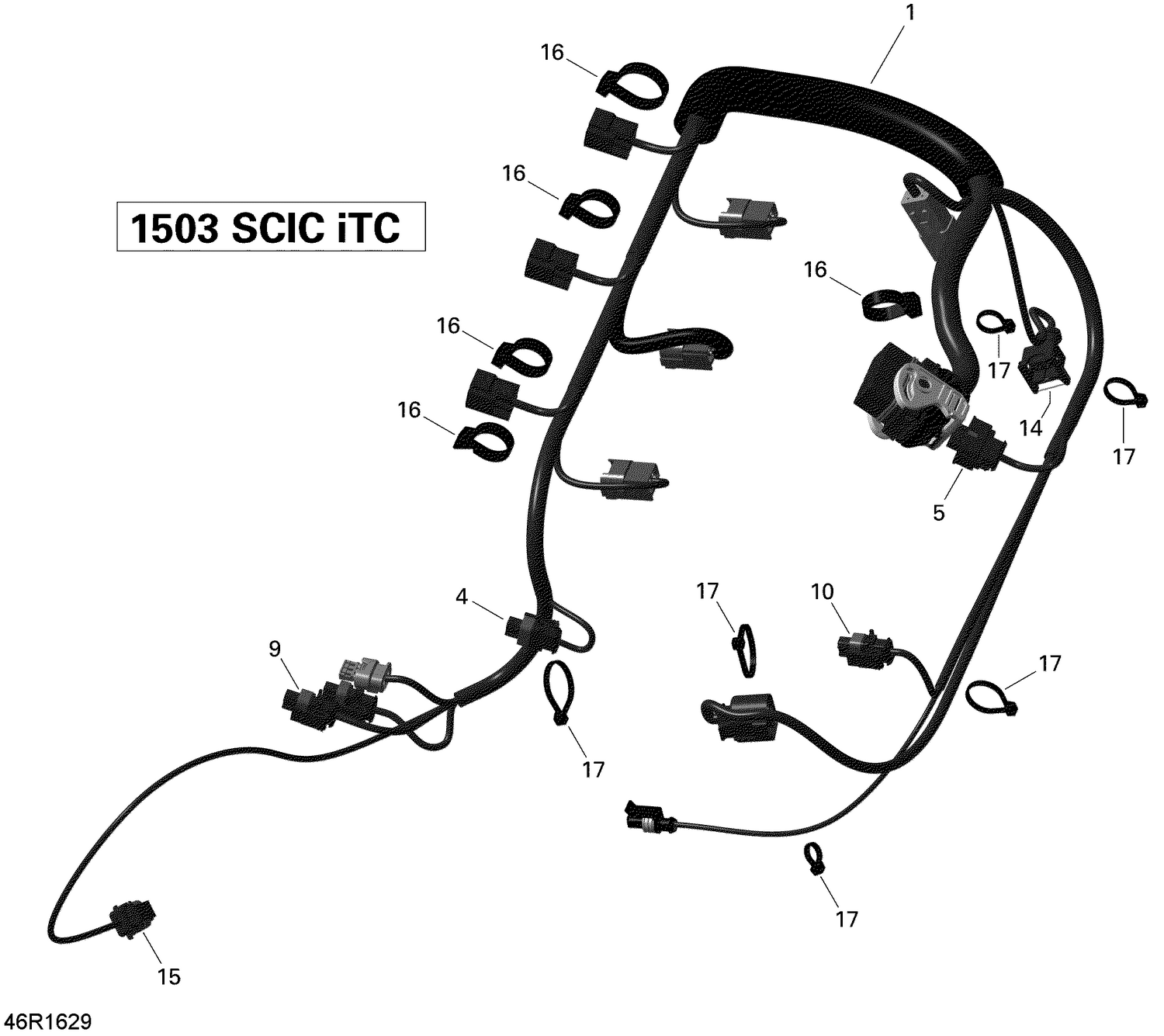

10- Engine Harness - 215
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420864220 | Engine Wiring Harness Ass'Y This part replaces 420665206. |
| 4 | 710001136 | Housing |
| 5 | 278001829 | Housing Connector, 3 Circuits |
| 9 | 278001005 | Male Housing, 2 Circuits |
| 10 | 278001005 | Male Housing, 2 Circuits |
| 14 | 415128566 | MALE HOUSING, 2 CIRCUITS, AMP - Call your local BRP dealership |
| 15 | 278001005 | Male Housing, 2 Circuits |
| 16 | 420866716 | Tie-Rap |
| 17 | 420866714 | Tie Rap |
