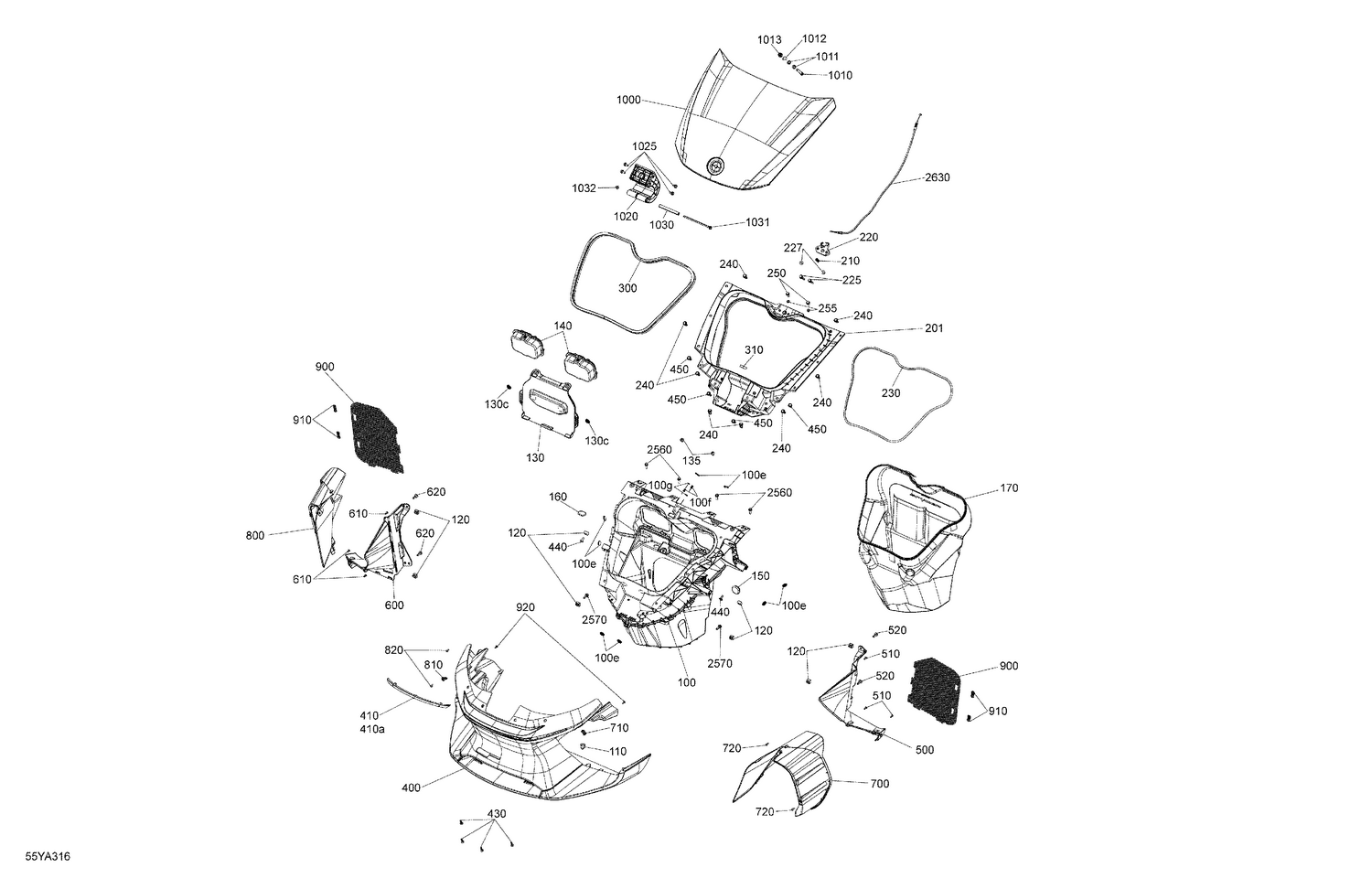

| Ref | Part Number | Description |
|---|
| 100e |
293740028 |
Dual Lock Velcro Washer 3/4" |
| 100f |
390401400 |
Rivet |
| 100g |
234031600 |
Flat Washer 3 mm, Stainless Steel |
| 110 |
293830005 |
Rubber Bumper |
| 130c |
293740028 |
Dual Lock Velcro Washer 3/4" |
| 135 |
250000767 |
Torx Truss Screw M6 X 12 |
| 140 |
705011444 |
Fuse Cover Ass'y |
| 150 |
710002858 |
Rubber Plug |
| 160 |
708400166 |
Cap |
| 170 |
708304274 |
Soft Box Liner This part replaces 708303266. |
| 201 |
708201071 |
Deep Black, Upper Box Support |
| 210 |
705003911 |
Spring |
| 220 |
705007379 |
Latch |
| 225 |
207663544 |
Hex. Flange Screw M6 X 35 |
| 227 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 230 |
293250529 |
Neoprene Seal 1420MM |
| 240 |
293150230 |
Tuflok Plastic Rivet |
| 250 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 255 |
232561434 |
Elastic Stop Nut M6 |
| 300 |
219704371 |
Neoprene Seal 3000 mm Long |
| 310 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 400 |
708201076 |
Deep Black, Front Bumper |
| 410a |
708201124 |
Upper Bumper Trim This part replaces 708200921. |
| 430 |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 440 |
250000755 |
Torx Screw M6 X 16 |
| 450 |
293150230 |
Tuflok Plastic Rivet |
| 500 |
708200879 |
Deep Black, LH Inner Air Scoop |
| 510 |
250001131 |
Torx Truss PT K40 x 12 |
| 520 |
250000712 |
Torx Screw M6 X 20 |
| 600 |
708200880 |
Deep Black, RH Inner Air Scoop |
| 610 |
250001131 |
Torx Truss PT K40 x 12 |
| 620 |
250000712 |
Torx Screw M6 X 20 |
| 700 |
708201086 |
Deep Black, LH Exterior Scoop This part replaces 708200876. |
| 710 |
293150230 |
Tuflok Plastic Rivet |
| 720 |
250001131 |
Torx Truss PT K40 x 12 |
| 800 |
708201087 |
Deep Black, RH Exterior Scoop This part replaces 708200877. |
| 810 |
293150230 |
Tuflok Plastic Rivet |
| 820 |
250001131 |
Torx Truss PT K40 x 12 |
| 900 |
708200970 |
Black Epoxy, Air Scoop Grille |
| 910 |
705004838 |
Flat Clip |
| 920 |
250001131 |
Torx Truss PT K40 x 12 |
| 1000 |
708201050 |
Highland Green, Front Hood |
| 1010 |
705002223 |
Lug |
| 1011 |
232180600 |
Hex. Jam Nut M8 |
| 1012 |
234081410 |
Flat Washer 8 mm |
| 1013 |
233281464 |
Elastic Flange Nut M8 |
| 1020 |
708200886 |
Black, Hood Hinge |
| 1025 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 1030 |
705003322 |
Spacer |
| 1031 |
230663084 |
Hex. Flange Screw M6 X 130 |
| 1032 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 2560 |
210262050 |
Hexagonal Head Screw |
| 2570 |
207662044 |
Hex. Flange Screw M6 X 20 |
