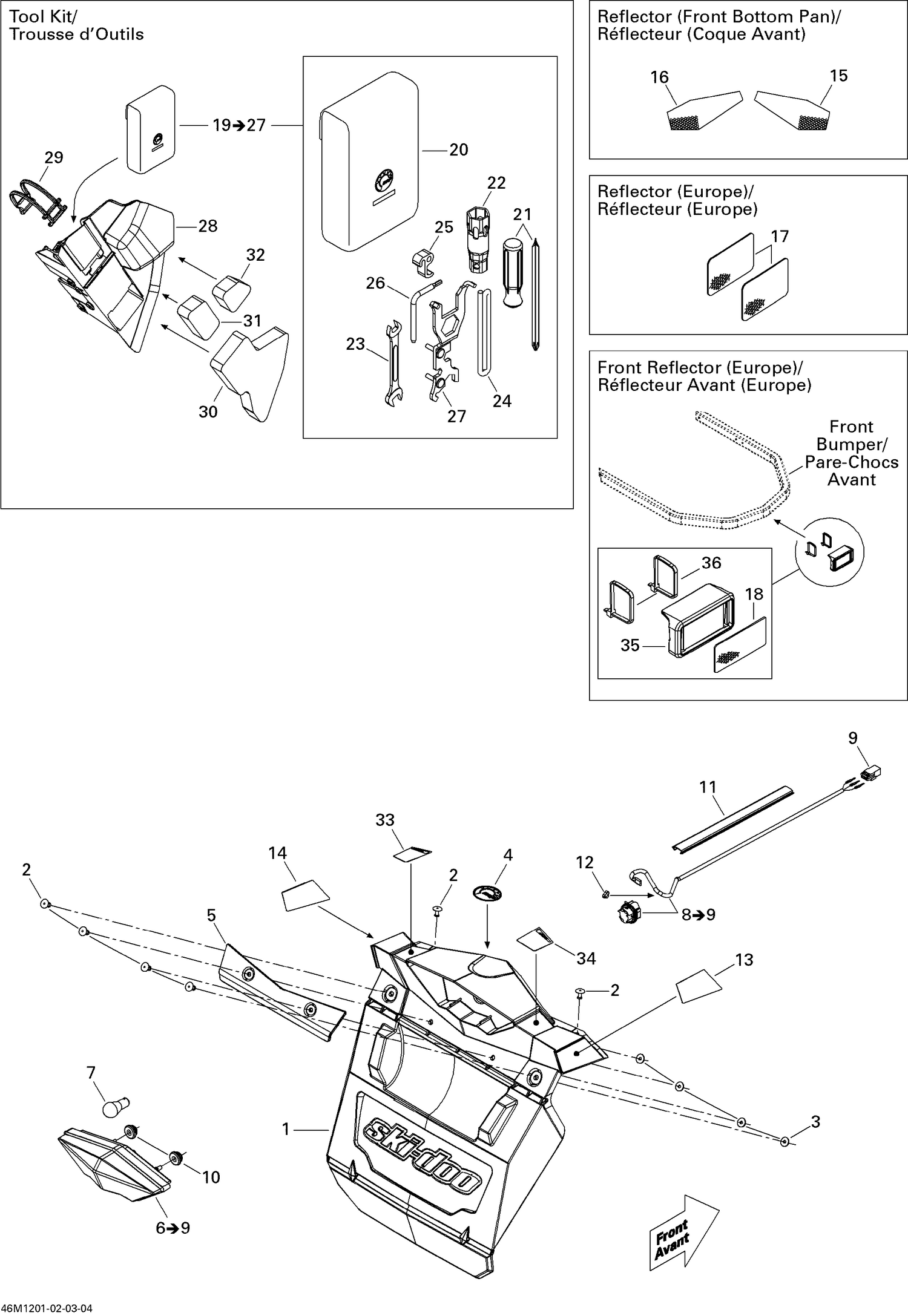

09- Utilities
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520000702 | Snow Guard |
| 2 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 3 | 517124300 | Washer |
| 4 | 219903305 | BRP Logo 48 mm |
| 5 | 520000751 | Reinforcement |
| 7 | 520000758 | Bulb |
| 9 | 515175494 | Male Housing, 3 Circuits |
| 10 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 11 | 520000829 | Radiator Trim |
| 12 | 293750002 | Tie Wrap 142 mm |
| 15 | 520000718 | Yellow, RH Front Reflector |
| 16 | 520000719 | Yellow, LH Front Reflector |
| 17 | XXX | Not Available As Spare Parts |
| 18 | XXX | Not Available As Spare Parts |
| 20 | Not | Available As Spare Part - Tool Bag |
| 21 | 529000004 | SCREWDRIVER - Call your local BRP dealership |
| 22 | Not | Available As Spare Part - Socket Wrench, 16/21 mm |
| 23 | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 24 | 219704403 | Was 412500100 Rope-Starter |
| 25 | 529000060 | Starter Grip |
| 26 | 520001142 | Spacing Tool |
| 27 | 520000988 | WRENCH SUSPENSION - Call your local BRP dealership |
| 28 | 520000842 | Tool Kit Rack |
| 29 | 520000528 | Latch |
| 30 | 520001059 | Foam |
| 31 | 520001061 | Foam |
| 32 | 520001062 | Foam |
| 33 | 516005057 | WARNING DECAL, SAFETY - Call your local BRP dealership This part replaces 516004550. |
| 34 | 516005058 | Warning Decal, Safety This part replaces 516004601. |
| 35 | XXX | Not Available As Spare Parts |
