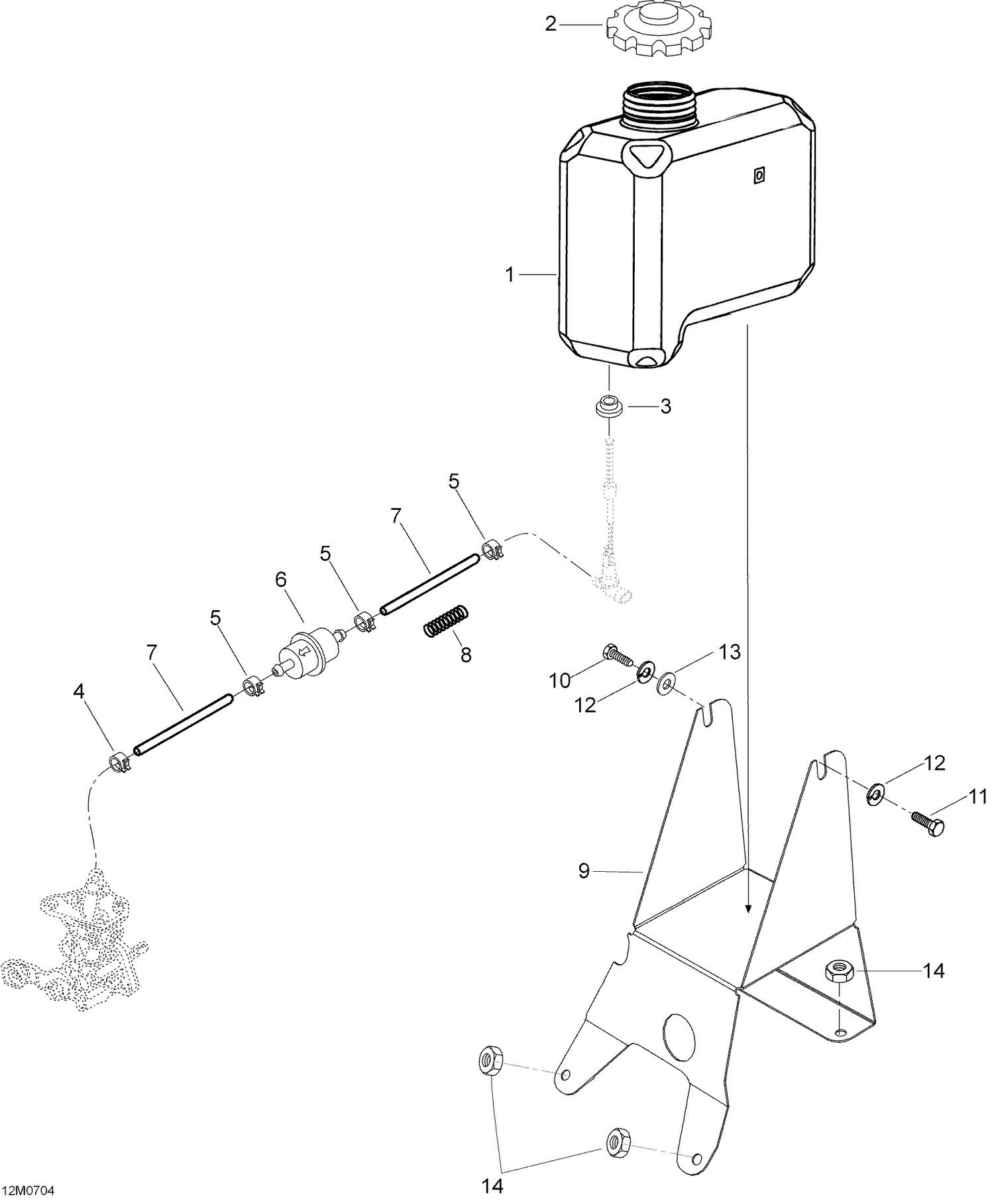

02- Oil System
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 572106700 | Oil Tank |
| 2 | 519000044 | CAP - Call your local BRP dealership |
| 3 | 570023000 | Insulating Ring |
| 4 | 414420700 | Spring Clamp |
| 5 | 414415200 | Spring Clamp |
| 6 | 414536500 | Filter |
| 7 | 219704412 | Polyurethane Hose, 8 Mm 3000Mm Long |
| 8 | M25005 | SPRING - Call your local BRP dealership |
| 9 | M5246036 | Tank Support |
| 10 | 207161244 | HEX. SCREW M6 X 12 - Call your local BRP dealership |
| 11 | 207161044 | HEX. SCREW M6 X 10 - Call your local BRP dealership |
| 12 | 234161471 | Lock Washer M6, Black |
| 13 | 234062410 | Flat Washer 6 mm This part replaces M20009. |
