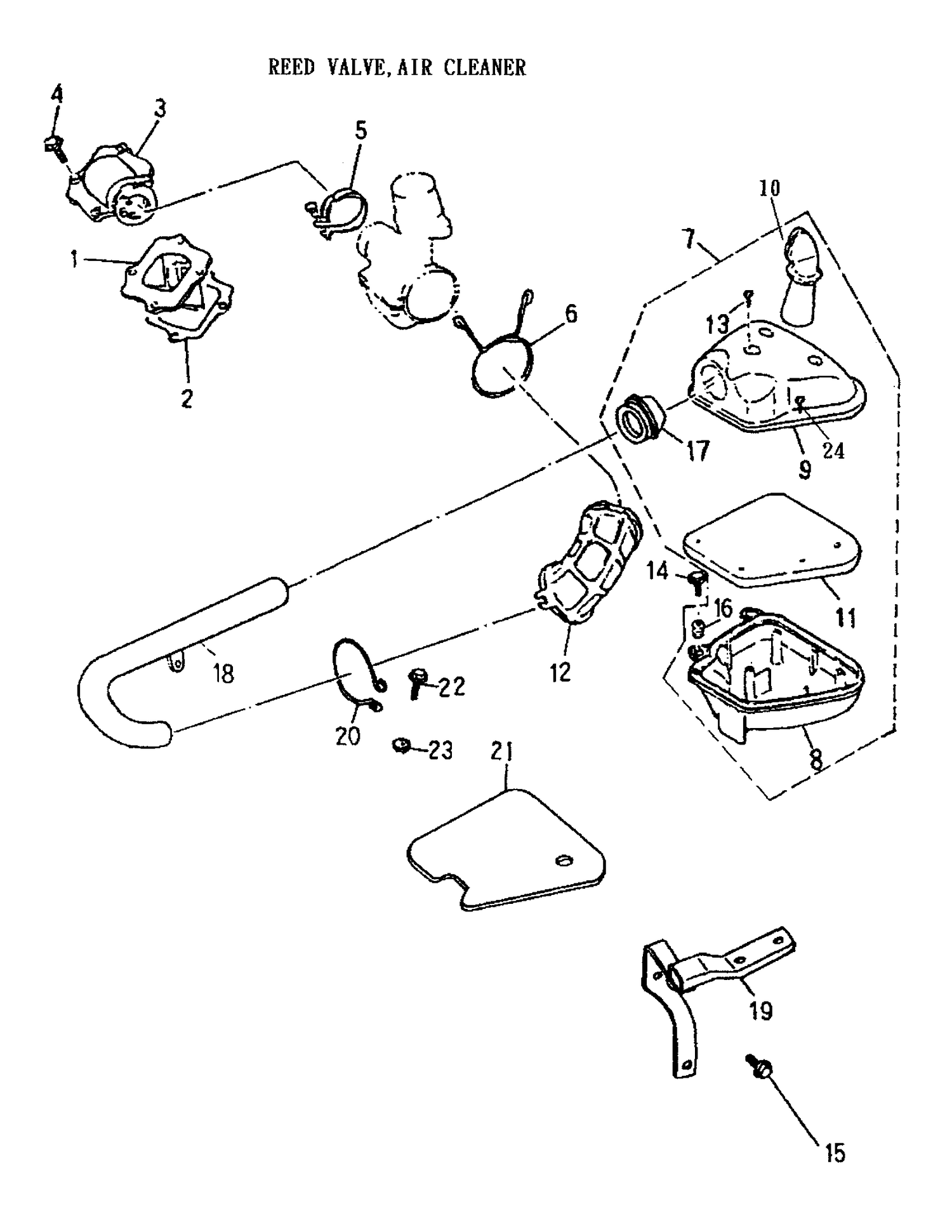

01- Reed Valve, Air Cleaner 170-05
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A14100116000 | Reed Valve Ass'y |
| 2 | A17111116000 | REED VALVE GASKET - Call your local BRP dealership |
| 3 | A17100116000 | INTAKE MANIFOLD - Call your local BRP dealership |
| 4 | A960000601808 | HEXAGONAL WASHER FACE BOLT M6X18 - Call your local BRP dealership |
| 5 | A14110104000 | Intake Manifold Hose Clamp |
| 6 | A9451040000 | CLIP - Call your local BRP dealership |
| 7 | A1720014500A | Air Cleaner Ass'y |
| 8 | A17206145000 | Air Cleaner Base |
| 9 | A17207145000 | Air Cleaner Cover |
| 10 | A17219145000 | Cleaner Guide Pipe |
| 11 | A17205145000 | Air Cleaner Element |
| 12 | A17253116000 | Air Cleaner Joint |
| 13 | A9390305025 | Tapping Screw Truss Head Phillips M5 X 2 |
| 14 | A920000602010 | Hex. Bolt M6 x 20 |
| 15 | A960000802512 | Hex. Washer Face Bolt M8 X 25 |
| 16 | A96485116000 | Grommet |
| 17 | A17254145000 | Air Cleaner Connection |
| 18 | A17257146000 | Air Duct |
| 19 | A17260145000 | Air Cleaner Bracket |
| 20 | A945104500A | Clip |
| 21 | A17220145000 | Air Cleaner Isolation Gasket |
| 22 | A920010502808 | Hex. Head Phillips Bolt (M5 x 28) |
| 23 | A9405005000 | Hex. Flange Nut With Serration M5 |
