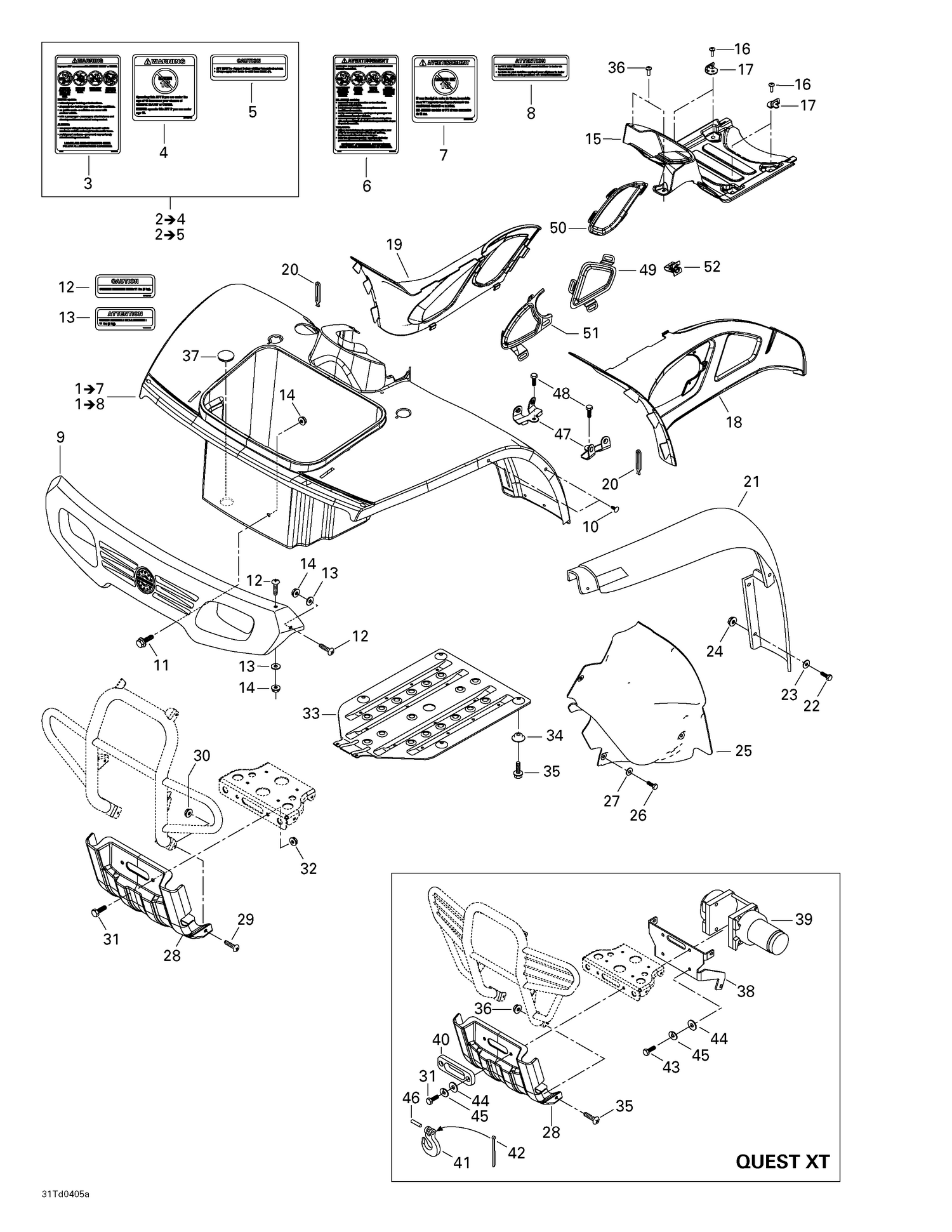

| Ref | Part Number | Description |
|---|
| 9 |
705000708 |
Front Fascia, Slate Gray |
| 10 |
293730011 |
Black, Dart |
| 11 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 12 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 13 |
224060201 |
Flat Washer |
| 14 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 15 |
705001052 |
Console |
| 16 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 17 |
705000369 |
HOOK, BLACK - Call your local BRP dealership |
| 20 |
570023800 |
Windshield Latch |
| 21 |
705000827 |
LH Front Mudguard |
| 22 |
207162044 |
Hex. Screw M6 X 20 |
| 23 |
224060201 |
Flat Washer |
| 24 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 26 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 27 |
224061201 |
Flat Washer |
| 28 |
705000713 |
PROTECTOR PLATE, SLATE GRAY - Call your local BRP dealership |
| 29 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 30 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 33 |
705200536 |
SKID PLATE - Call your local BRP dealership |
| 34 |
705200533 |
CUP - Call your local BRP dealership |
| 35 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 36 |
414745900 |
Tuflock Phillips Plastic Screw |
| 37 |
570041600 |
Rubber Cover |
| 47 |
705000311 |
Bracket, Black |
| 48 |
210261050 |
Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 49 |
705000367 |
LH Rear Grill, Black |
| 50 |
705000366 |
RH Rear Grill, Black |
| 51 |
705000368 |
LH Front Grill |
| 705000828 |
Garde-Boue |
Avant DR 705000828 |
| 705000828 |
RH |
Front Mudguard 705000828 |
