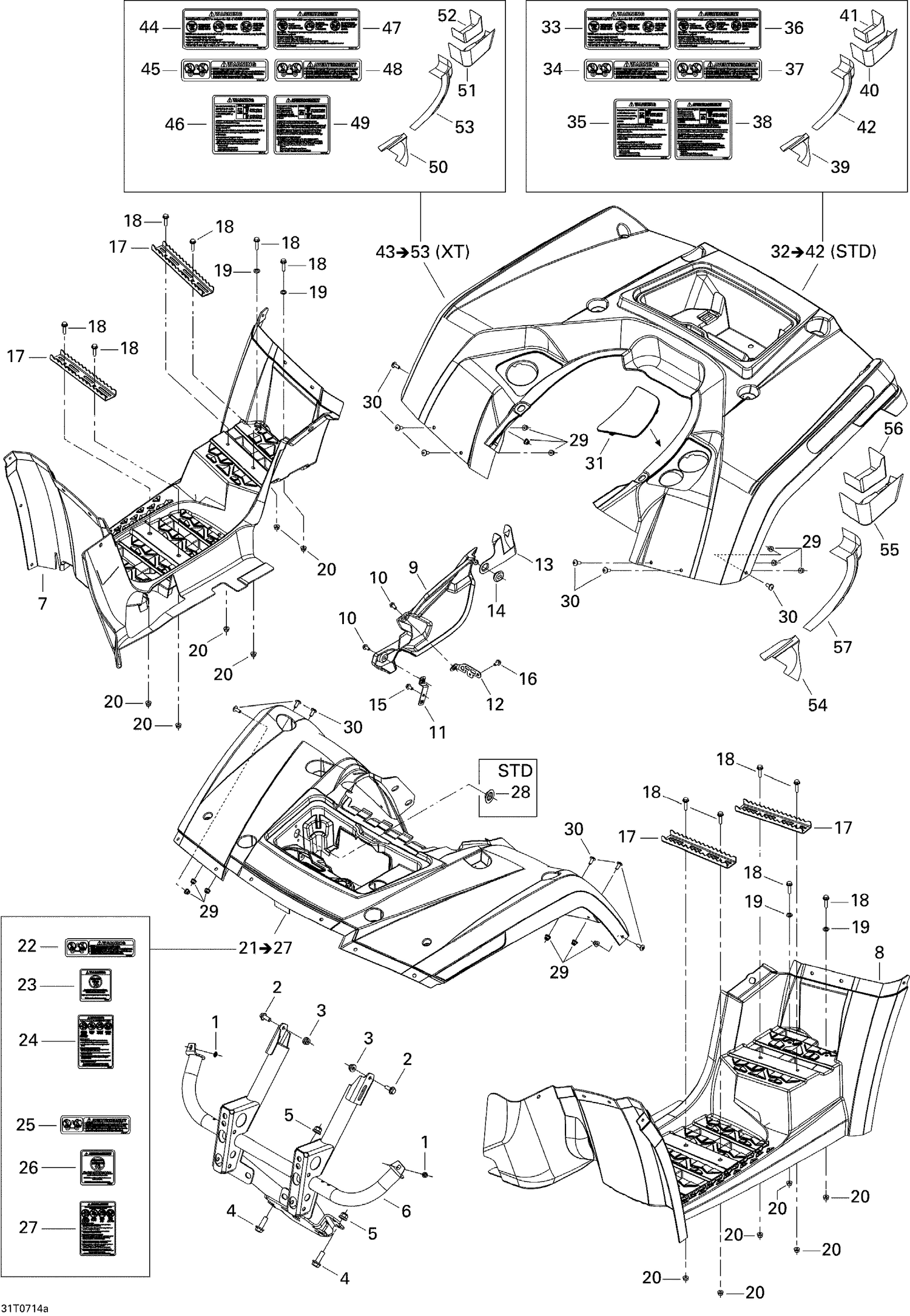

| Ref | Part Number | Description |
|---|
| 1 |
732610072 |
Push Nut |
| 2 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 3 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 4 |
207603044 |
Hex. Flange Screw M10 X 30 |
| 5 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 6 |
705003196 |
Front Bumper This part replaces 705001827. |
| 7 |
705002487 |
RH Footboard This part replaces 705001981. |
| 8 |
705003633 |
LH Footboard This part replaces 705001940. |
| 9 |
705001452 |
REFLECTING SHEET - Call your local BRP dealership |
| 10 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 11 |
705003646 |
Engine Cover Support This part replaces 705000657. |
| 12 |
705011461 |
Engine Cover Support This part replaces 705001826. |
| 13 |
705002121 |
ENGINE COVER SUPPORT - Call your local BRP dealership |
| 14 |
705005156 |
Oval Washer |
| 15 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 16 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 17 |
705003648 |
Footrest This part replaces 705000428. |
| 18 |
207662554 |
Hex. Flange Screw M6 X 25 This part replaces 207662584. |
| 19 |
234161471 |
Lock Washer M6, Black |
| 20 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 29 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 30 |
250000755 |
Torx Screw M6 X 16 This part replaces 250000261. |
| 31 |
705017923 |
LH Rear Body Panel Cap This part replaces 705001910. |
| 39 |
705002014 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 40 |
705002191 |
Reflective Sheet |
| 41 |
705002189 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 42 |
705002085 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 43 |
XXX |
Not Available As Spare Parts |
| 44 |
XXX |
Not Available As Spare Parts |
| 45 |
XXX |
Not Available As Spare Parts |
| 46 |
XXX |
Not Available As Spare Parts |
| 47 |
XXX |
Not Available As Spare Parts |
| 48 |
XXX |
Not Available As Spare Parts |
| 49 |
XXX |
Not Available As Spare Parts |
| 50 |
XXX |
Not Available As Spare Parts |
| 51 |
XXX |
Not Available As Spare Parts |
| 52 |
XXX |
Not Available As Spare Parts |
| 53 |
XXX |
Not Available As Spare Parts |
| 54 |
705002014 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 55 |
705002191 |
Reflective Sheet |
| 56 |
705002189 |
REFLECTIVE SHEET - Call your local BRP dealership |
