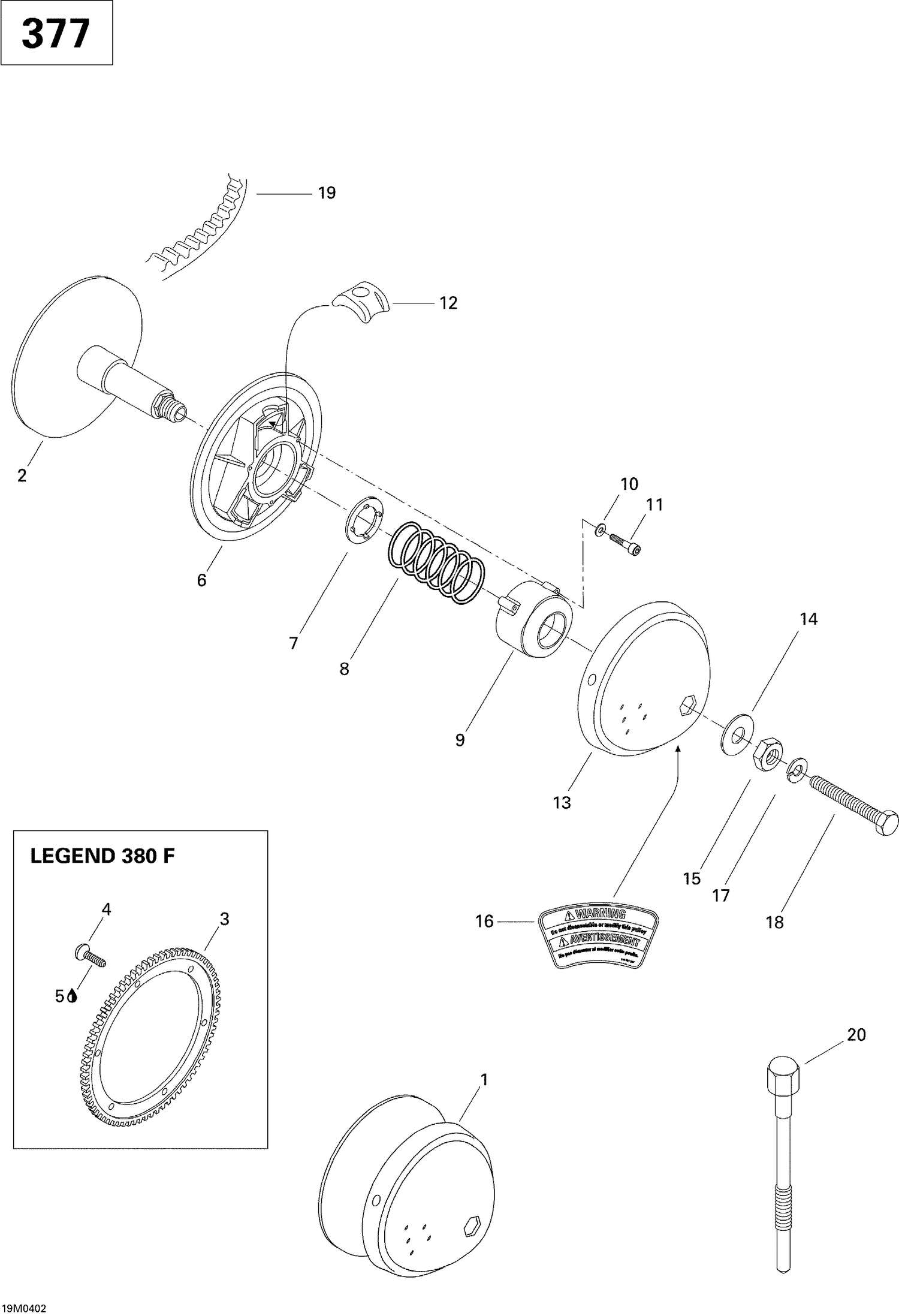

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - Drive Pulley Ass'y |
| 2 |
417126690 |
Inner Flange |
| 6 |
417126692 |
SLIDING FLANGE - Call your local BRP dealership |
| 7 |
417126694 |
SPRING SEAT - Call your local BRP dealership |
| 8 |
417126621 |
Spring Violet (Blue/Green) |
| 9 |
417126622 |
SPRING COVER - Call your local BRP dealership |
| 10 |
420245370 |
WASHER - Call your local BRP dealership |
| 11 |
205064086 |
Socket Screw M6 X 40 |
| 12 |
417126623 |
Centrifugal Block |
| 13 |
417126696 |
Cap |
| 14 |
417122400 |
Washer |
| 15 |
417118300 |
NUT - Call your local BRP dealership |
| 16 |
516001247 |
Security Label |
| 17 |
392002800 |
WASHER-LOCK HELICAL SPRING - Call your local BRP dealership |
| 18 |
417113800 |
BOLT - Call your local BRP dealership |
| 19 |
415060600 |
Drive Belt |
