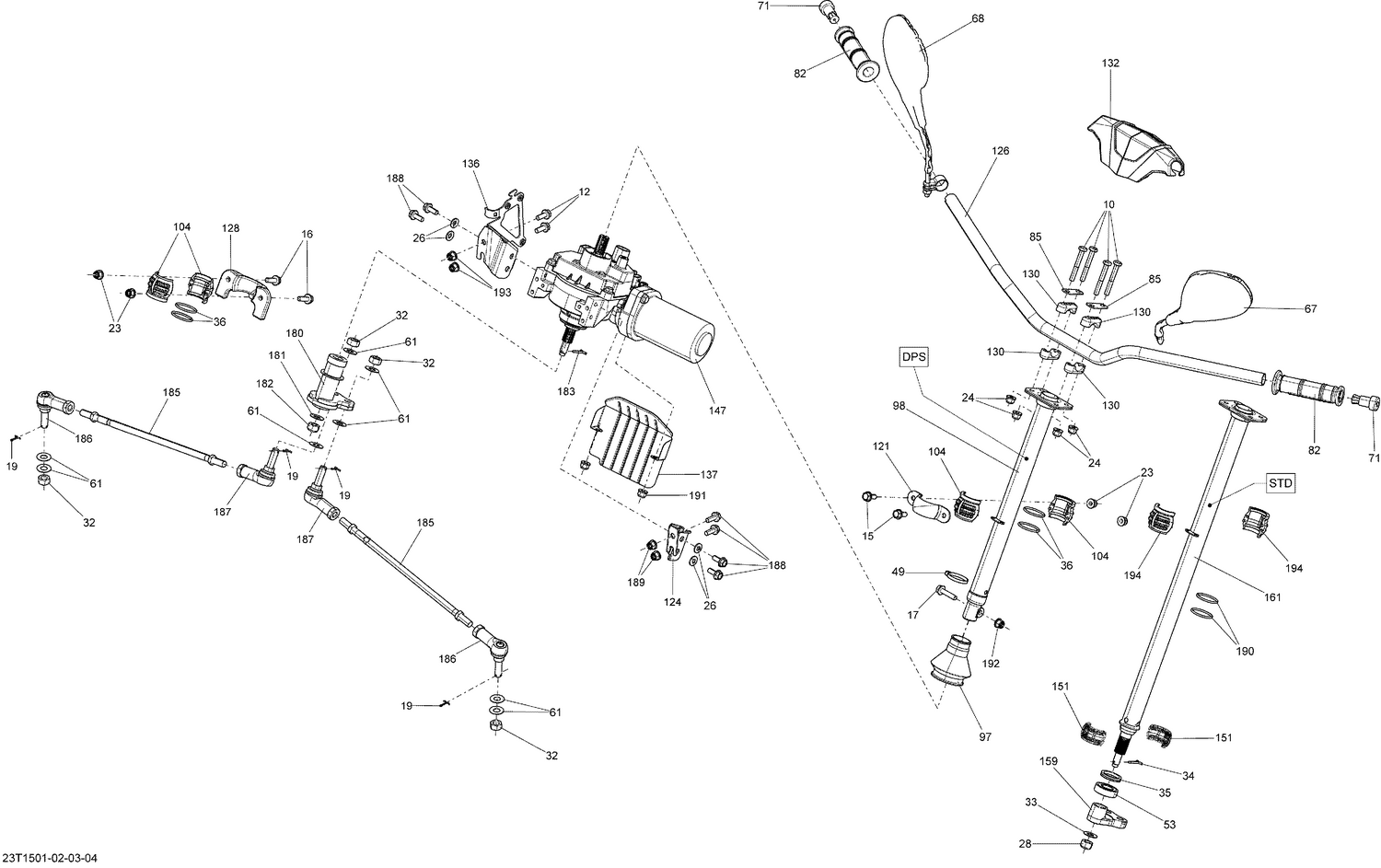

07- Steering _23T1502
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 207086046 | Hex. Screw M8 X 60 |
| 12 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 15 | 207682044 | Hex. Flange Screw M8 X 20 |
| 16 | 207682534 | Hex. Flange Screw M8 X 25 |
| 19 | 211400013 | Cotter Pin |
| 23 | 233281414 | Hex. Flange Elastic Nut M8 |
| 24 | 233281416 | Hex. Elastic Flange Nut M8 |
| 32 | 250100099 | Nut M12 |
| 61 | 706200281 | Hardened Washer This part replaces 250200086. |
| 71 | 709400449 | End Piece |
| 82 | 709400493 | Handle Grip |
| 85 | 709400509 | Stiffner |
| 121 | 709400827 | Upper Column Attachment |
| 126 | 709401240 | Black, Handlebar |
| 128 | 709401428 | Column Attachment |
| 130 | 709400919 | Steering Support |
| 136 | 709400994 | RH STEERING BRACKET - Call your local BRP dealership |
| 186 | 709402303 | LH Ball Joint This part replaces 709400486. |
| 187 | 709402302 | RH Ball Joint This part replaces 709400490. |
| 193 | 233281414 | Hex. Flange Elastic Nut M8 |
