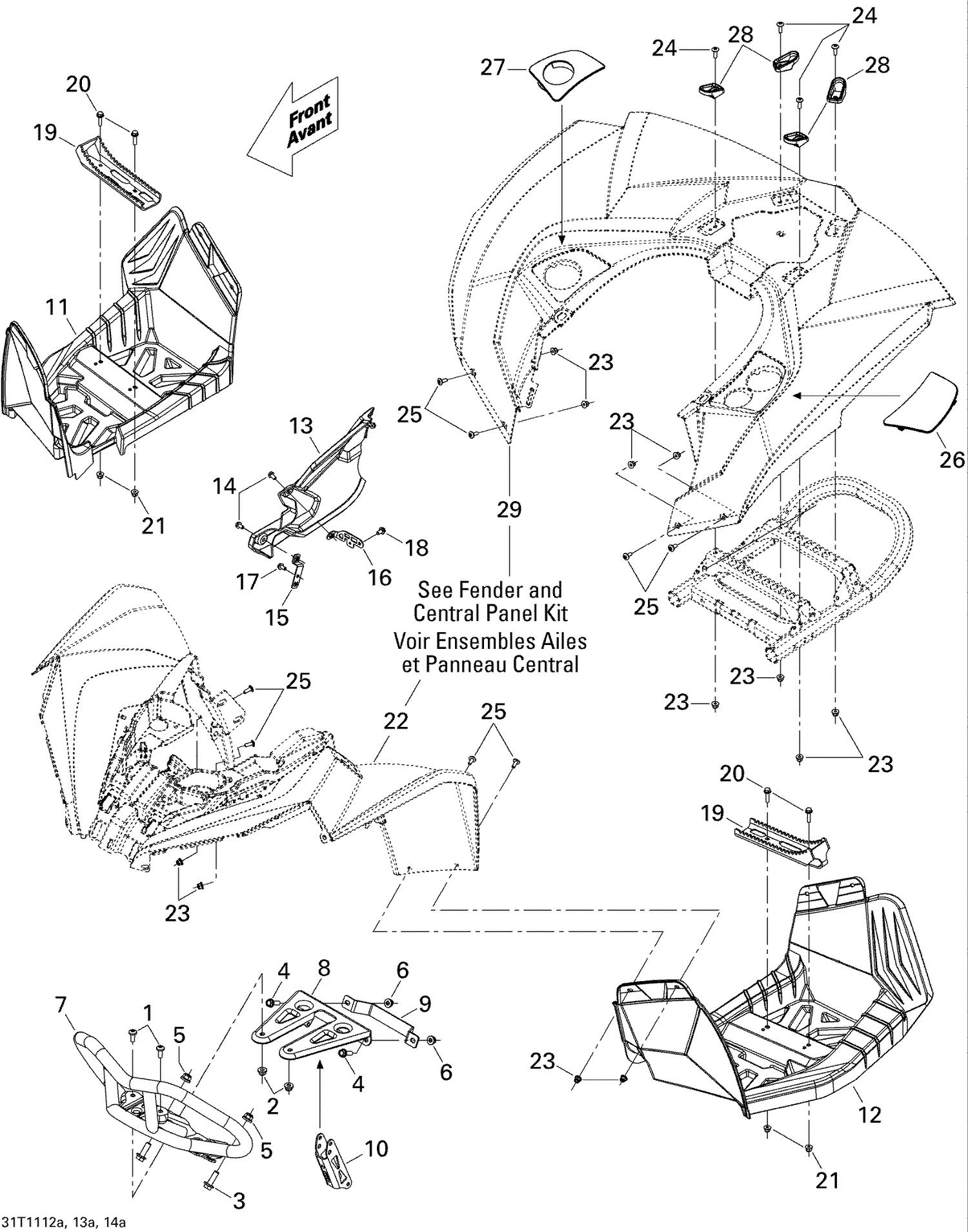

| Ref | Part Number | Description |
|---|
| 1 |
250000740 |
Torx Screw M8 X 20, Scotch Grip This part replaces 250000117. |
| 2 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 3 |
207603044 |
Hex. Flange Screw M10 X 30 |
| 4 |
207682544 |
Hex. Flange Screw M8 X 25 |
| 5 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 6 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 7 |
705003300 |
Front Bumper |
| 8 |
705002279 |
ATTACHE - Call your local BRP dealership |
| 9 |
705002520 |
BUMPER BRACKET, BLACK - Call your local BRP dealership |
| 10 |
705002282 |
Support |
| 11 |
705003136 |
RH FOOTBOARD - Call your local BRP dealership |
| 12 |
705003135 |
LH FOOTBOARD - Call your local BRP dealership |
| 13 |
705003839 |
ENGINE COVER - Call your local BRP dealership |
| 14 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 15 |
705003646 |
Engine Cover Support |
| 16 |
705011461 |
Engine Cover Support This part replaces 705002667. |
| 17 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 18 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 19 |
705002326 |
Footrest |
| 20 |
207662554 |
Hex. Flange Screw M6 X 25 This part replaces 207662584. |
| 21 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 22 |
Not |
Available As Spare Part - Front Fender Kit |
| 23 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 24 |
250000284 |
Torx Screw M6 x 25 |
| 25 |
250000755 |
Torx Screw M6 X 16 This part replaces 250000261. |
| 26 |
705017923 |
LH Rear Body Panel Cap This part replaces 705001910. |
| 27 |
705017924 |
RH Rear Body Panel Cap This part replaces 705002420. |
| 28 |
705017925 |
Hook This part replaces 705002342. |
