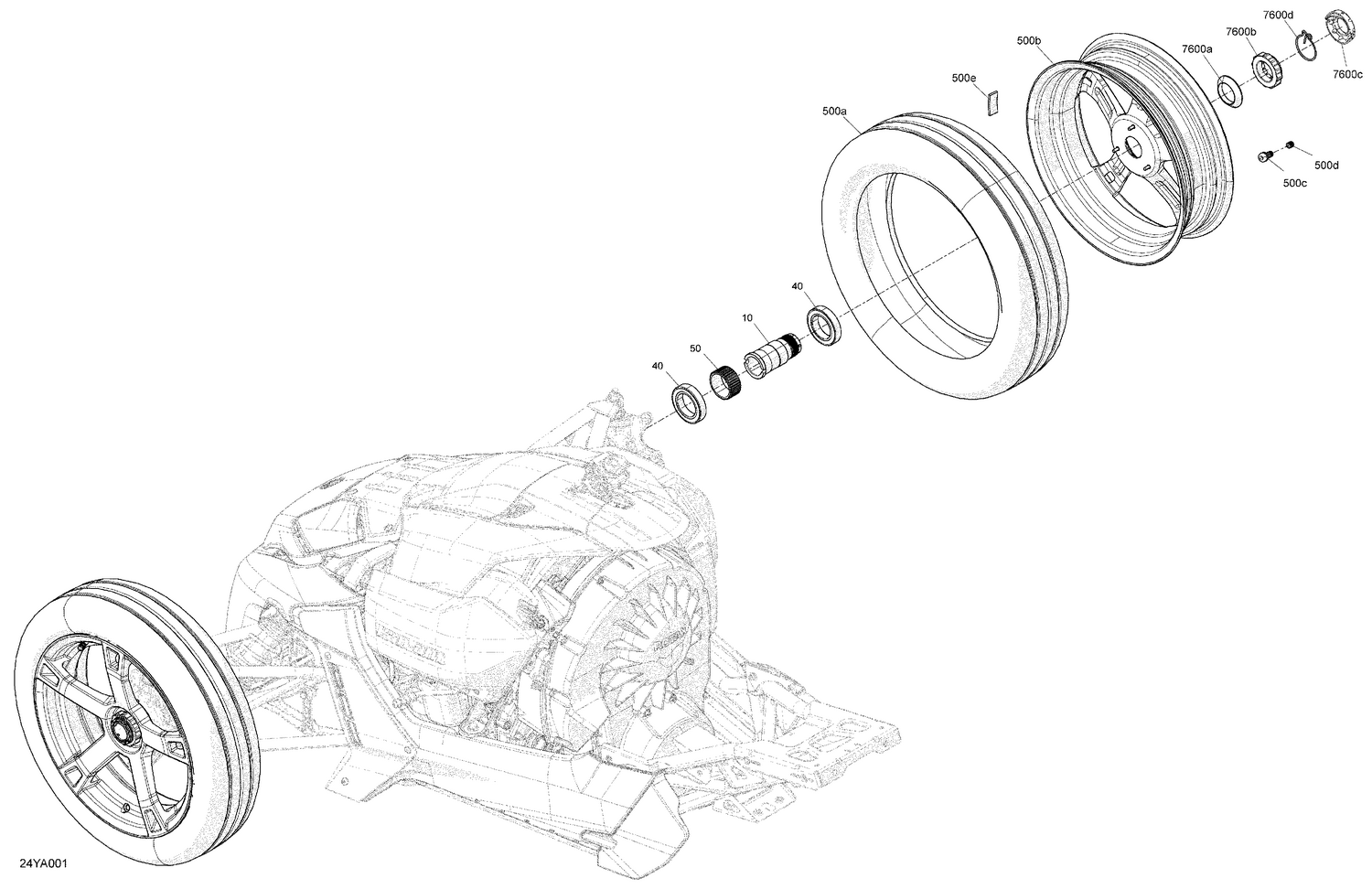

04- Drive - Front Wheels
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 706204864 | LH Front Wheel Axle This part replaces 706202572. |
| 40 | 293350059 | Ball Bearing |
| 50 | 705601557 | Tone Ring (trigger wheel) |
| 500a | 705403055 | Front Tire 145/60R16 This part replaces 705401930. |
| 500b | 705403047 | Carbon Black, 16 inch Rim This part replaces 705402659. |
| 500c | 705400193 | Rim Valve With Cap |
| 500d | 293000110 | Valve Cap |
| 500e | 705503182 | Balancing Weight |
| 7600a | 705401983 | Conical Support Ring |
| 7600b | 705402730 | Wheel Nut M45 |
| 7600c | 705402677 | Hub Cap |
